User Instructions
American DJ®
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Color 250D™ Introduction
© ®American DJ Supply - www.americandj.com - Color 250D™ Instruction Manual Page 2
Rev. 4/05
Unpacking: Thank you for purchasing the Color 250D™ by American
DJ . Every Color 250D™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction: The Color 250D
TM
is part of American DJ’s continuing
pursuit for creating high quality affordable intelligent fixtures. The Color
250D™ is a DMX intelligent color changer. This unit is light weight and
compact which makes it a great piece for mobile DJ’s and clubs. This
unit can be used as a stand alone, sound-active unit or in a Master/
Slave configuration. The unit can also be controlled via DMX controller.
For best results use this unit with a fog machine to enhance the output
of the beams.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ .®
PLEASE recycle the shipping carton when ever possible.
Color 250D™ Safety Precautions
© ®American DJ Supply - www.americandj.com - Color 250D™ Instruction Manual Page 4© ®American DJ Supply - www.americandj.com - Color 250D™ Instruction Manual Page 3
• 7 colors plus white
• Two Color Strobe
• Electronic Dimming 0-100%
• Built in Microphone
• Run up to 16 heads without controller
• DMX-512 protocol
• Fan cooled
• Uses three DMX Channels
• Optional MINI/C or Wireless/C (Not Included)
• Easy Lamp Replacement
Safety Issue: This unit may blow the breaker if the maximum allotted
load of 5 amps is reached. If the breaker needs resetting, please see
the breaker reset guidelines on page 11.
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 12 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Color 250D™ Warranty Registration
The Color 250D™ carries a 1 year (365 days) limited warranty. Please
fill out the enclosed warranty card to validate your purchase and
war-
ranty. You may also register your product online at www. americandj.
com. All returned service items whether under warranty or not, must
be freight pre-paid and accompany a return authorization (R.A.)
num-
ber. If the unit is under warranty you must provide a copy of your
proof of purchase invoice. Please contact American DJ® customer
support for a R.A. number.
Color 250D™ Features
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Color 250D™ General Instructions
P Before plugging your unit in, be sure the source volt-ower Supply:
age in your area matches the required voltage for your American DJ ®
Color 250D.™ The American DJ Color 250D®
™
is available in a 120v
and 220v version. Because line voltage may vary from venue to venue,
you should be sure your unit voltages matches the wall outlet voltage
before attempting to operate you fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav
-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter
-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a single
controller, as long as all fixtures and the controller are DMX compli
-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/
Slave Operation): The Color 250D™ can be controlled via DMX-512
protocol. The Color 250D™ is a three channel DMX unit. The DMX
address is set on the back panel of the Color 250D™. Your unit and
your DMX controller require a standard 3-pin XLR
connector for data input and data output (Figure
1). If you are making your own cables, be sure to
use standard two conductor shielded cable (This
cable may be purchased at almost all pro sound
and lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and can not be split.
©American DJ® - www.americandj.com - Color 250D™ Instruction Manual Page 5

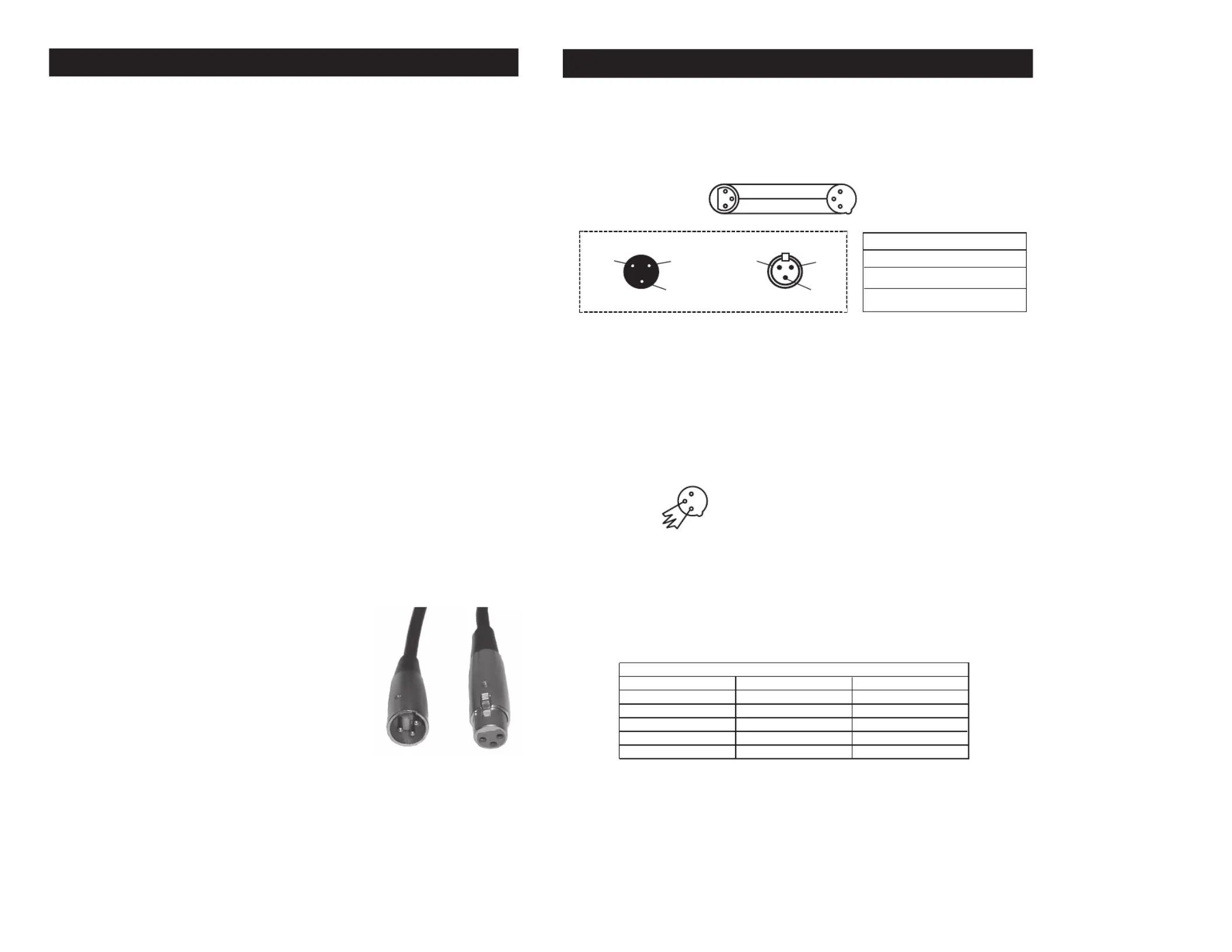

Color 250D™ Set Up
© ®American DJ Supply - www.americandj.com - Color 250D™ Instruction Manual Page 6
Figure 1
Notice: Be sure to follow figures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
Color 250D™ Set Up
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Configuration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin XLR
connectors for DATA transmission in place of 3-pin. 5-pin XLR fixtures
may be implemented in a 3-pin XLR DMX line. When inserting stan-
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Product specificaties
| Merk: | American Audio |
| Categorie: | Niet gecategoriseerd |
| Model: | Color-250D |
Heb je hulp nodig?
Als je hulp nodig hebt met American Audio Color-250D stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Niet gecategoriseerd American Audio
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
Handleiding Niet gecategoriseerd
- Delamu
- Improv
- Intergas
- Ketron
- Rösle
- Sensiplast
- Foliatec
- Rolly Toys
- Graupner
- Pulox
- Stabo
- Qualcast
- Fromm-Starck
- Lec
- Closer Pets
Nieuwste handleidingen voor Niet gecategoriseerd
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
