Features..................................................................................2
Customer Support......................................................................2
Controls and Functions - Front View...........................................2
Controls and Functions - Rear View ...........................................4
DMX Setup.................................................................................5
Program Chase...........................................................................8
Running Chase.. ........................................................................9
Select Scene in Chase.............................................................10
Manual Mode ..........................................................................10
Stand Alone Mode ...................................................................10
Menu Mode..............................................................................11
Set Date....................................................................................11
Set Time........ ...........................................................................12
Set Clock..................................................................................13
Delete Chase............................................................................14
Chase By Time....... .................................................................14
Erase Memory...........................................................................16
Lock Controller........... ............................................................ 16
DMX Configuration.................................................................. 17
Warranty...........................................................................19
Specifications...............................................................21
Rev. 1/12
LED Touch™ Table of Contents
User Instructions
American DJ® www.americandj.com - LED Touch Page 1
• Controls Up To 6 Individual RGB, RGBW, RGBD, or RGBD/S LED
Fixtures
• 6 Built-In Chases w/ Adjustable Hold/Fade Times
• 24 Factory Chase Macros
• 255 Preset RGB Color Levels
• Auto, Manual, and Sound Active Operation Modes
• 18 Programmable Chases, Up to 30 Steps each w/ Adjustable
Hold/Fade Times
• Built-In Clock For Event Triggering
• Compatible With The LED-T-FC Foot Controller (Not Included)
LED Touch™ Features
American DJ® www.americandj.com - LED Touch Page 2
4
3
2
1
15
14
13
8
9
11
12
10
7
6
5
Customer Support: American DJ provides a toll free customer ®
support line, to provide set up help and to answer any question
should you encounter problems during your set up or initial opera-
tion. You may also visit us on the web at www.americandj.com for any
comments or suggestions. For service related issue please contact
American DJ®. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact American DJ customer support.
PLEASE recycle the shipping carton whenever possible.
LED Touch™ Customer Support
The LED Touch™ carries a year limited warranty. one Please fill out the
enclosed warranty card to validate your purchase. All returned service
items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) umber. If the unit is under n
warranty you must provide a copy of your proof of purchase invoice.
Please contact American DJ® customer support for a R.A. number.
LED Touch™ Product Registration
LED Touch™ Controls and Functions - Front View

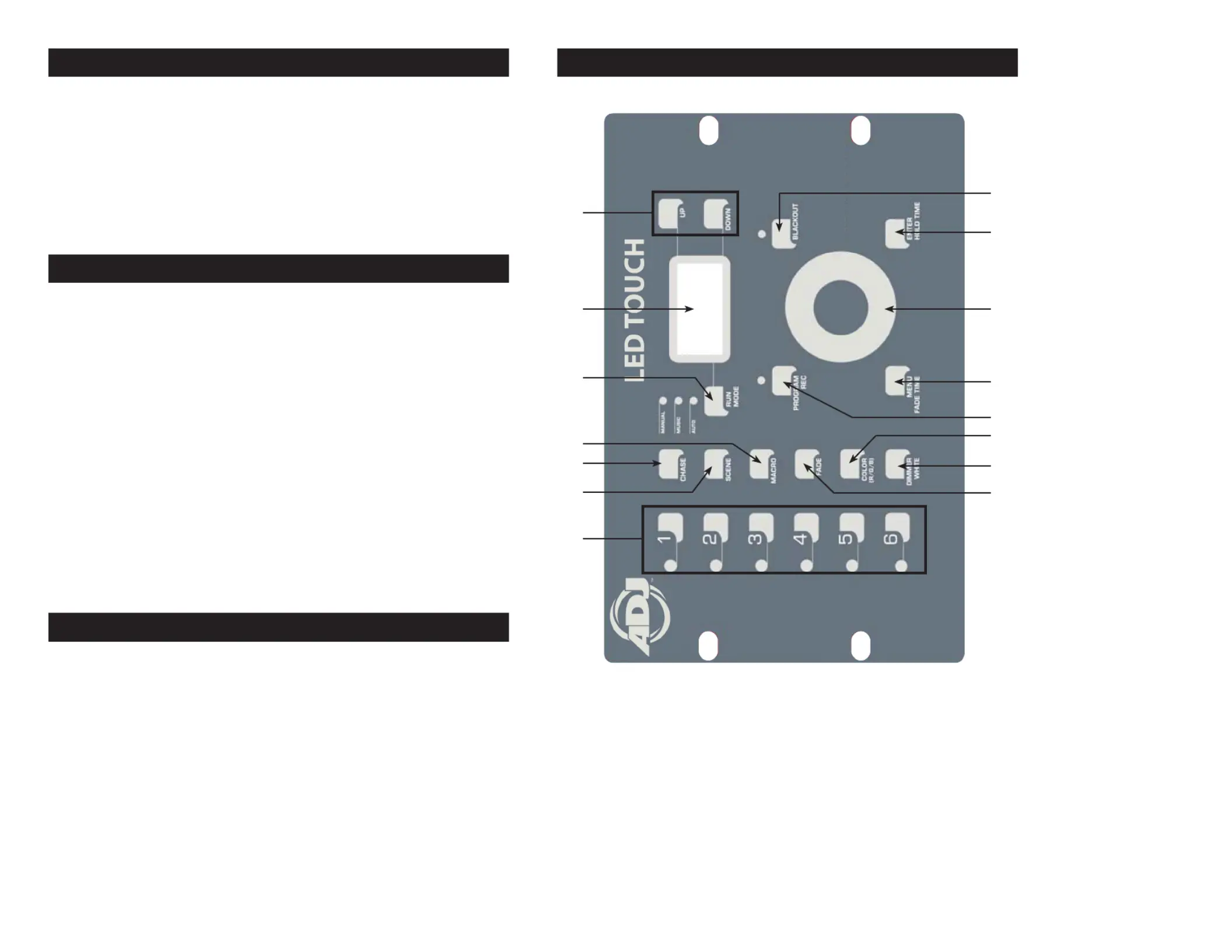

1. UP AND DOWN BUTTONS - These buttons are used to adjust the
DMX values.
2. Displays values and settings depending on the LED WINDOW -
chosen function.
3. - RUN MODE Used to select manual mode, sound active mode, or
auto mode. The LEDs located next to the button will let you know what
mode is currently active.
4. CHASE - Use this button to run or save a chase.
5. MACRO - There are 24 macros, the fade time and wait time is adjust-
able.
6. SCENE - Used to store Scenes in program mode or
playback your scenes in playback mode. Every Chase has 30 scenes.
7. Used to select any or all 6 fixtures. FIXTURE BUTTONS -
8. FADE - This button will let you begin to set your fade time.
9. DIMMER/WHITE - This button will let you adjust the dimmer.
10. COLOR(R/G/B) - This button will let you choose a built-in color.
11. PROGRAM/REC - Used to enter program mode and record.
12. MENU/FADE TIME - Use this button to enter the menu and set a fade
time of a macro.
13. JOG WHEEL - Use the jog wheel to adjust values and other functions.
14. ENTER/HOLD TIME - Use this button to select programs in the menu
and set a hold time of a macro.
15. BLACKOUT - Activates and deactivates blackout mode.
16. POWER SWITCH - Switches the power on or off.

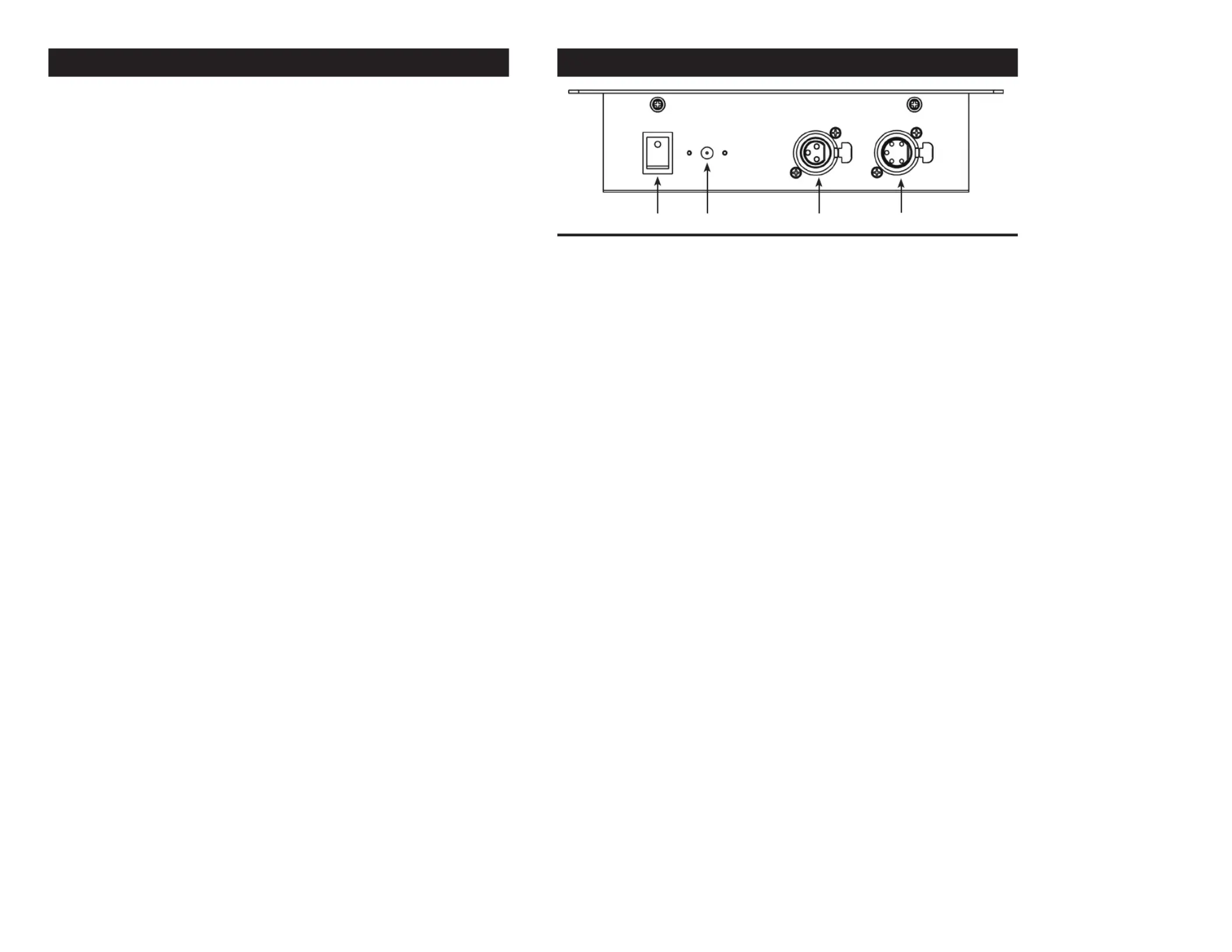

17. DC INPUT - Accepts a DC 9V, 500 mA minimum, power
supply.
18. DMX OUT - Used to send DMX signal to fixtures or Packs.
19. LED-T-FC - Connect the LED-T-FC to this input (Not Included).
LED Touch™ Controls and Functions - Rear View
American DJ® www.americandj.com - LED Touch Page 4American DJ® www.americandj.com - LED Touch Page 3
19181716
LED Touch™ Controls and Functions - Front View
