STARTUP MANUAL
1 Startup Manual
UNOP-1000I/1000J/1901
Expansion Card for Standard Interface and Kit for 2nd HDD installation for UNO-4673A/4683
Diagram
iationOverview
UNOP-1000 equips standard expansion interfaces:
UNOP-1000I : PCI and PCI-mini card
UNOP-1000J : PCI-104 and PCIe-mini card
UNOP-1901 is a kit for customers to install a second HDD in
UNO-4673A/4683.
Note: The UNO-4673A/4683 only provides PCIe resources on
Slot1, that means the PCIe-mini card slot only works in Slot 1
of the UNO-4673A/4683.
Note: Before installing 3rd party plug-in cards, refer to UNO-
4673A/4683 user manual for total thermal/power consumption
information.
Note : The UNO-4673A & 4683 provide two sets of SATA
resources, but only provide one HDD/SDD bay in the main unit,
customer can use the UNOP-1901 to install a second HDD/SDD.
Installation

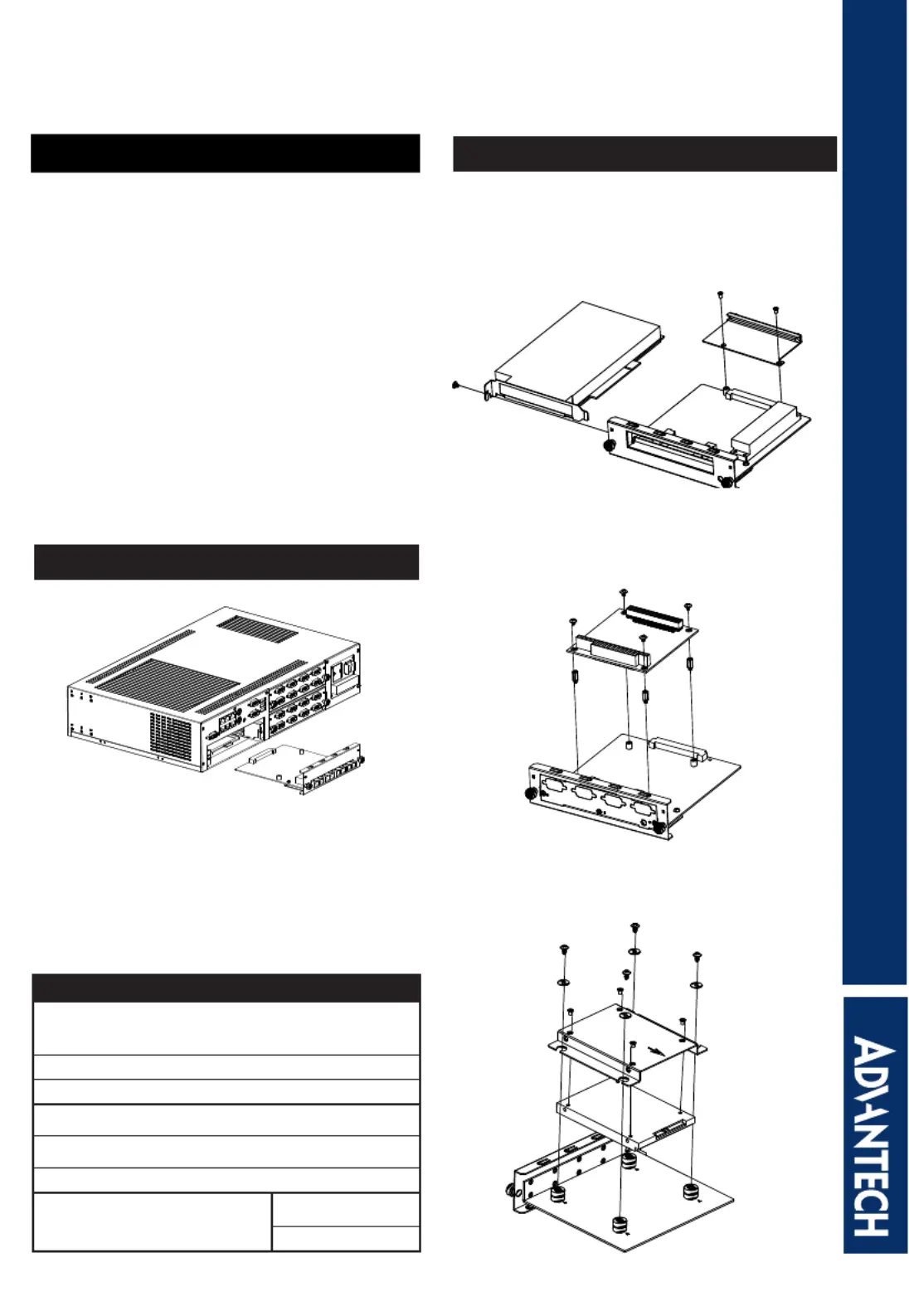

Follow the exploded diagrams below for plug-in card installation
and HDD/SSD installation:
UNOP-1000I
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for UNOP-1000I/1000J/1901
Part No: 2003T100001st Edition
November 2011
UNOP-1000J
UNOP-1901
