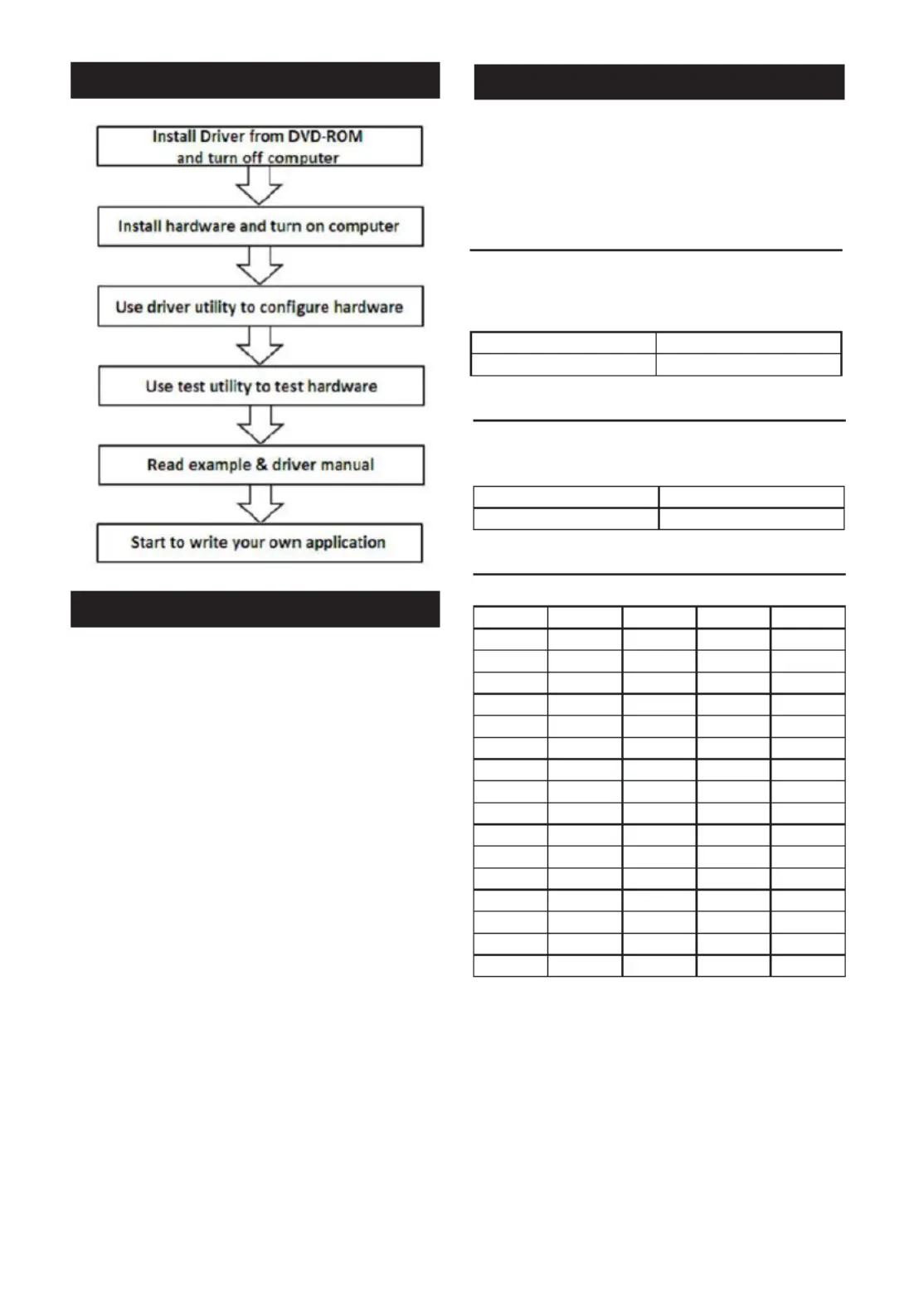

1 Startup Manual

Packing List

Before installation, please make sure that you have received

the following:

•PCI-1737U card

•Driver CD

•Quick Start User Manual

If anything is missing or damaged, contact your distributor or

sales representative immediately.

User Manual

For more detailed information on this product, please refer to

the 1737U User Manual on the CD-ROM (PDF format).

Specifications

Digital Input

Number of Input Channels

24 (Shared with output)

Compatibility

5V/TTL

Interrupt Inputs

1 (PC00)

Input Voltage

Logic 0 : 0.8 V (max.)

Logic 1 : 2 V (min.)

Declaration of Conformity

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause interference in which case the user is

required to correct interference at his own expense.

CE

This product has passed the CE test for environmental

specifications when shielded cables are used for external

wiring. We recommend the use of shielded cables. This kind

of cable is available from Advantech. Please contact your

local supplier for ordering information.

Notes

For more information on this and other Advantech products,

please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCI-1737U.

Part No: 20031737201st Edition

July 2015

STARTUP MANUAL

Overview

PCI-1737U

24 channel Digital I/O Universal PCI Card

The PCI-1737U is a 24-bit DI/O card with PCI bus . It pro-

vides you with 24 bits of parallel digital input /output. It emu-

lates mode 0 of the 8255 PPI chip , but the buffered circuits

offer a higher driving capability than the 8255.The I/O bits

are divided into three 8-bit I/O ports: A0, B0, and C0.You can

configure each port as either input or output via software.

General

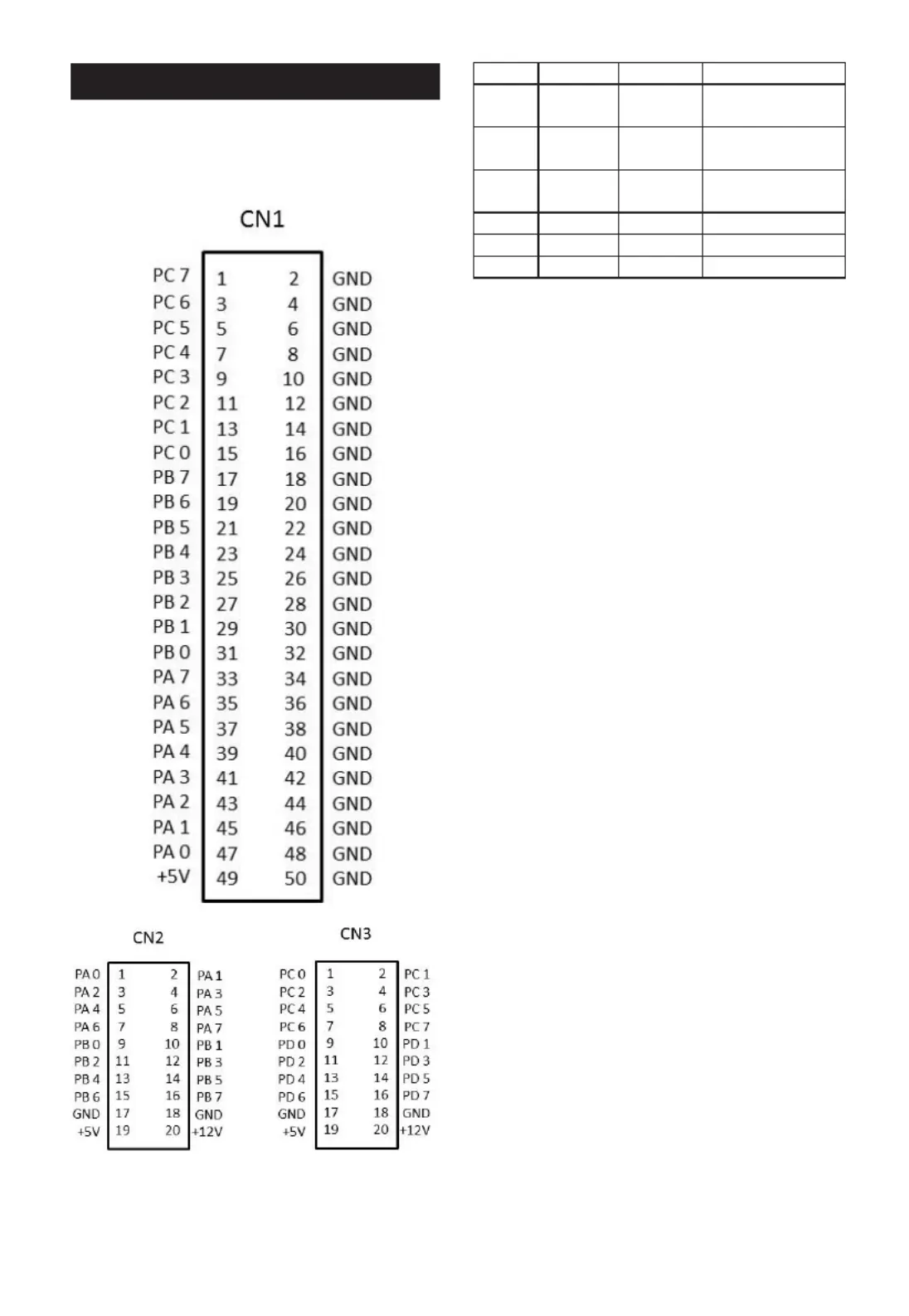

I/O Connector Type

50-pin box header

Dimensions

170 mm x 100 mm (6.9” x 3.9”)

Power Consumption

+5V @ 300 mA (max.)

Temperature

Operation0 ~ +60°C (32~ 140°F )

(refer to IEC 68 -2 - 1 ,2)

Storage-20 ~ +70°C (-4 ~158°F)

Relative Humidity

5 ~ 95% RH non-condensing

(refer to IEC 60068-2-3)

Certification

CE/FCC

Digital Output

Number of Output Channels

24 (Shared with input)

Compatibility

5V/TTL

Input Voltage

Logic 0 : 0.8 V max. @+24

mA (sink)

Logic 1 : 2 V min. @-15 mA

(source)
