MIC-75S00 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. MIC-75S00 Module p1-x1
2. MIC-75S00 Startup Manual p1-x1 P/N: 204175S000
3. M3 x 4L Screws x 4 P/N: 1930007979
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
MIC-75S00
Dual Front Accessible 2.5” SATA Storage Bay for
MIC-7 Series Embedded System
Startup Manual
Storage
• Internal SATA connector: 2
Note 1: MIC-75S00 supports 2 x 2.5’ HDD space and
both SATA signals are from main system.
Note 2: MIC-75S00 supports thickness of 2.5” HDD/SSD
up to 15mm.
Environment
• Operating Temperature:
-20 ~ 60° C with 0.7 m/sec air ow: with 1 x Industrial SSD
0 ~ 45° C with 0.7 m/sec air ow: with 1 x 2.5” HDD
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• Dimensions (H x W x D): 192 x 31(min.)/69.15(max.) x
230
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-75S00 Series Rev. A1.
Part No. 204175S000
Printed in China
1st Edition
December 2022

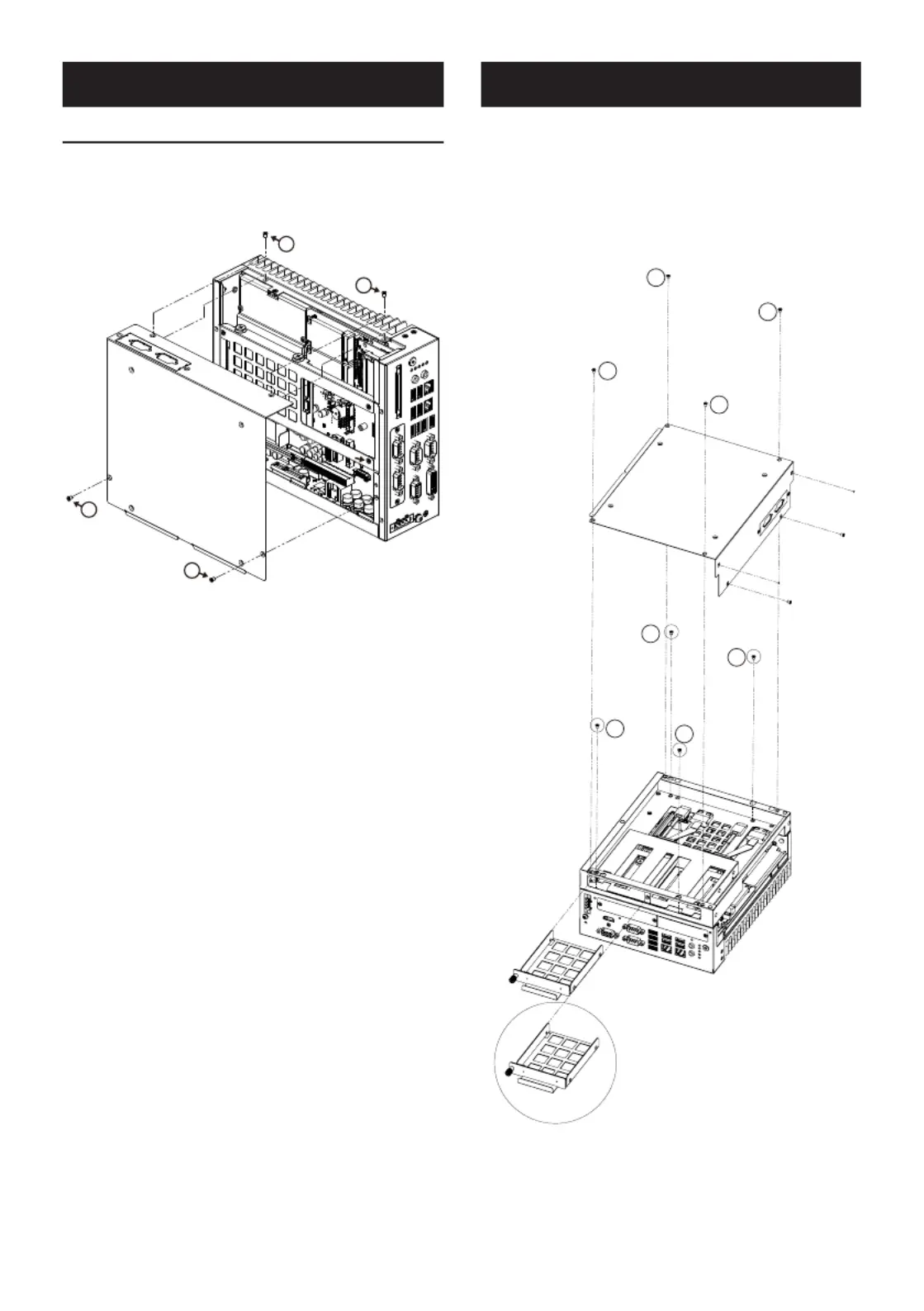

2 MIC-75S00 Startup Manual
2. Attach MIC-75S00 to MIC-7 series device and secure
with 4 x screws.
Plug the SATA signal cable and power cable into the
main board of MIC-7 series. (Refer to the startup manu-
al of MIC-7 series for the location of SATA connector on
main board)
3. Place the rear cover onto MIC-75S00 assembled with
MIC-7 series and secure with 4 screws.
3
3
2
3
3
2
2
2
System Installation
MIC-7 series i-module can be assembled with all MIC-7
series IPC systems.
1. Undo MIC-7 series system screws and remove the
bottom cover.
1
1
1
1
Simple Maintenance Process
Simple Maintenance Process (Cont.)

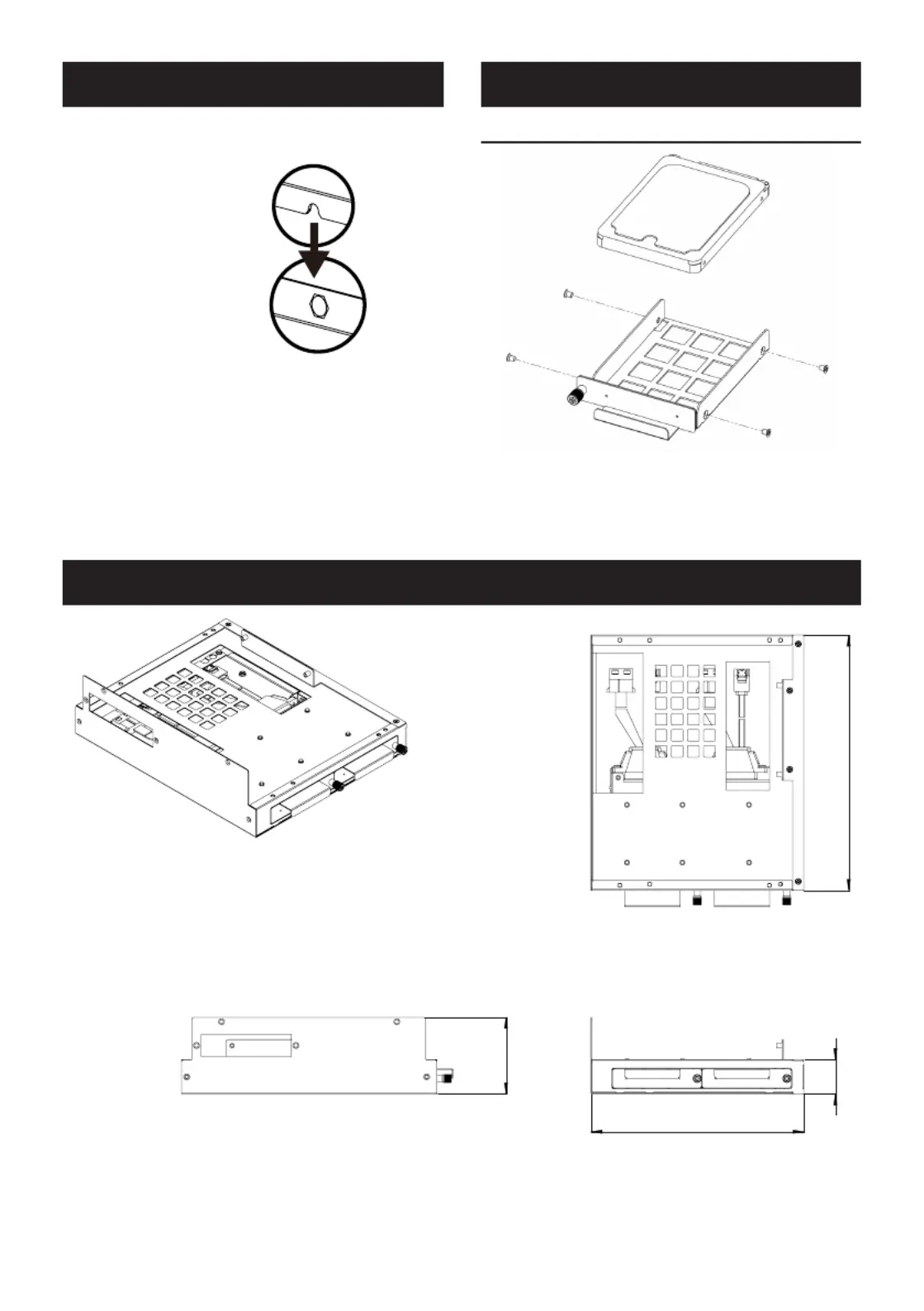

MIC-75S00 Startup Manual 3
Note: The chassis cover has a notch designed in and it
must mate with a hook on the chassis.
Chassis Cover
Chassis hook
Product Dimensions
Simple Maintenance Process (Cont.)
HDD Installation
1. Pull out the SSD/HDD cage from MIC-75S00.
2. Secure the 4 x HDD screws. (P/N:1930002235)
3. Replace the HDD cage and secure it with thumbscrews.
Figure 1: MIC-75S00
192
31
230
69.15
Simple Maintenance Process (Cont.)
