AMAX-4800 Startup Manual 1
Before installation, please check that the following items are
included in the shipment:
1. 1 x AMAX-4800 module
2. 2 x Terminal blocks (see Specications for more details)
3. 1 x AMAX-4800 startup manual
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
For more detailed information about this product, download
the latest user manual from the Advantech website.
The AMAX-4800 EtherCAT SubDevice informa-
tion (ESI) le can be downloaded from the Ad-
vantech website at http://www.advantech.com.
Every ESI le contains the conguration data of an Ether-
CAT SubDevice module. Various EtherCAT communica-
tion settings can be dened from the ESI les of con-
nected SubDevice units as well the network connection
information. ESI les are saved to the conguration tool to
provide network conguration data. Subsequently, the net-
work conguration data can be downloaded to an Ether-
CAT MainDevice unit for conguring an EtherCAT network.
AMAX-4800 Series
Industrial EtherCAT SubDevice Modules
Startup Manual
The AMAX-4800 series comprises industrial EtherCAT Sub-
Device modules equipped with the EtherCAT protocol. The
modules’ compact size and integrated DIN-rail mount kit en-
sure easy installation in a variety of cabinets. The modules
also feature euro-type pluggable terminal blocks and LED
indicators that facilitate system setup and maintenance. All
modules are equipped with an isolation circuit that ensures
current protection for demanding industrial applications.
General
• Connectors
- 10-pin terminal block (3.81 mm) * N
(AMAX-4830/30SO/33/34/50: N = 4,
AMAX-4855/56: N = 8,
AMAX-4860: N = 3,
AMAX-4862: N = 6)
- 3-pin screw terminal block (3.81 mm) * 2 (power)
- RJ-45 * 2 (EtherCAT)
• Dimensions
AMAX-4830/30SO/33/34/50/60: 120 x 120 x 40 mm
AMAX-4855/56/62: 168 x 120 x 40 mm
• OperatingTemperature: -20 ~ 60 °C (32 ~ 140 °F)
• StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)
• StorageHumidity:5 ~ 95% RH (non-condensing)
• PowerSupply:10 ~ 30 V
DC
Communications
• Interface:EtherCAT
• DataTransferMedium:Ethernet/EtherCAT cable (CAT5
min.), shielded
• DistanceBetweenModules:100 m max.(100BASE-TX)
• CommunicationCycleTime:100 us
• DataTransferRate:100 Mbps
• Conguration:Not required
DigitalInput
• Channels
- AMAX-4830/4830SO/4850/4862: 16 channels
- AMAX-4833/4855/4856: 32 channels
- AMAX-4860: 8 channels
• InputVoltage
- Logic 0: 3 V max.
- Logic 1: 10 V min. (30 V max.)
• IsolationProtection: 2,500 V
DC
PackingList
For more information about this or other Advantech
products, please visit our website at
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at
http://support.advantech.com
This manual is for the AMAX-4800 series modules.
Part No. 2001483004 Edition 5
June 2024
Specications
Overview
UserManual
EtherCATSubDeviceInformationFile
2 AMAX-4800 Startup Manual
FCCClassA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in residential
areas is likely to cause interference. In such cases, users
are required to correct the interference at their own expense.
CE
This product has passed the CE test for environmen-
tal specications when shielded cables are used for
external wiring. We recommend the use of shield-
ed cables. Advantech does provide shielded cables.
Contact your local supplier for ordering information.
AMAX-4800 modules use two hexadecimal rotary switches
to represent the SubDevice ID (range: 0 ~ 255).
For example, if a user arranges the rotary switches follow-
ing the sequence “4, F”, the SubDevice ID will be set as “4
x 16 + F x 1= 79”.
AMAX-4830SO
AMAX-4830SO provides separated COM connections
in groups of eight digital input/output channels. As a de-
fault, EC0, EC1, PC0, and PC1 are isolated from each
other. However, for cases where EC0 and EC1, or PC0
and PC1, need to be connected together, this can be
achieved using SW2 and SW3. EC0 and EC1 are con-
nected together when the SW2 switch is in the up (open)
position. Similarly, PC0 and PC1 are connected to-
gether when the SW3 switch is in the up (open) position.
SW2/SW3SwitchintheUpPosition
EC0 & EC1 Open
PC0 & PC1 Open
SW2/SW3SwitchintheDownPosition
EC0 & EC1 Close
PC0 & PC1 Close
DigitalOutput
• Channels
- AMAX-4830/4830SO: 16 channels
- AMAX-4834/4856: 32 channels
• LoadVoltage:5 ~ 40 V
DC
• LoadCurrent
- 350mA/channel (sink)@25 °C
- 250mA/channel (sink)@60 °C
AMAX-4830SO:
- 250mA/channel (source)@25 °C
- 200mA/channel (source)@60 °C
• IsolationProtection:2,500 V
DC
• Opto-IsolatorResponseTime: 100 us
PhotoMOSRelayOutput
• Channels
AMAX-4850: 8 channels
AMAX-4855: 16 channels
• RelayType: PhotoMOS SPST (Form A)
• LoadVoltage:60 V (AC peak or DC)
• LoadCurrent: 1.2A
• PeakLoadCurrent:4A @100 ms (1 pulse)
• IsolationProtection: 1,500 V
DC
• Turn-OnTime:1 ms typical
• Turn-OTime: 0.6 ms typical
RelayOutput
• Channels
AMAX-4860: 8 channels
AMAX-4862: 16 channels
• Relaytype:Form A
• ContactRating(Resistive): 2A@250 V
AC
, 2A@30 V
DC
• Max.SwitchingPower:500 VA , 60W
• Max.SwitchingVoltage:270 V
AC
, 125 V
DC
• Resistance:30 mΩ max.
• OperatingTime:10 ms max.
• ReleasingTime: 5 ms max.
• LifeExpectancy
- Mechanical: 2 x 10
7
ops. at no load
- Electrical: 3 x 10
4
ops. @2A/250 V
AC
1. Download the AMAX-4800 user manual and ESI le.
https://www.advantech.com/zh-tw/search/?q=AMAX-
4856&st=support.
2. Import the ESI le to create an EtherCAT network
information (ENI) le using either
(1) Advantech Common Motion Utility
(with a PCI-1203 EtherCAT MainDevice card)
(2) Other EtherCAT MainDevice software, such as
TwinCAT or Acontis
3. Use the MainDevice utility to test the AMAX-4800
modules.
AMAX-4800 modules feature two power input terminals,
an input power range of 10 ~ 30 V
DC
, and power redun-
dancy support. For modules connected to two power input
sources, if one source is inactive or interrupted, the other
power source can take over immediately. The AMAX-4800
modules can operate with only a single power source.
RotarySwitch
DeclarationofConformitySpecications(Cont.)
Power
Installation
DipSwitch
AMAX-4800 Startup Manual 3

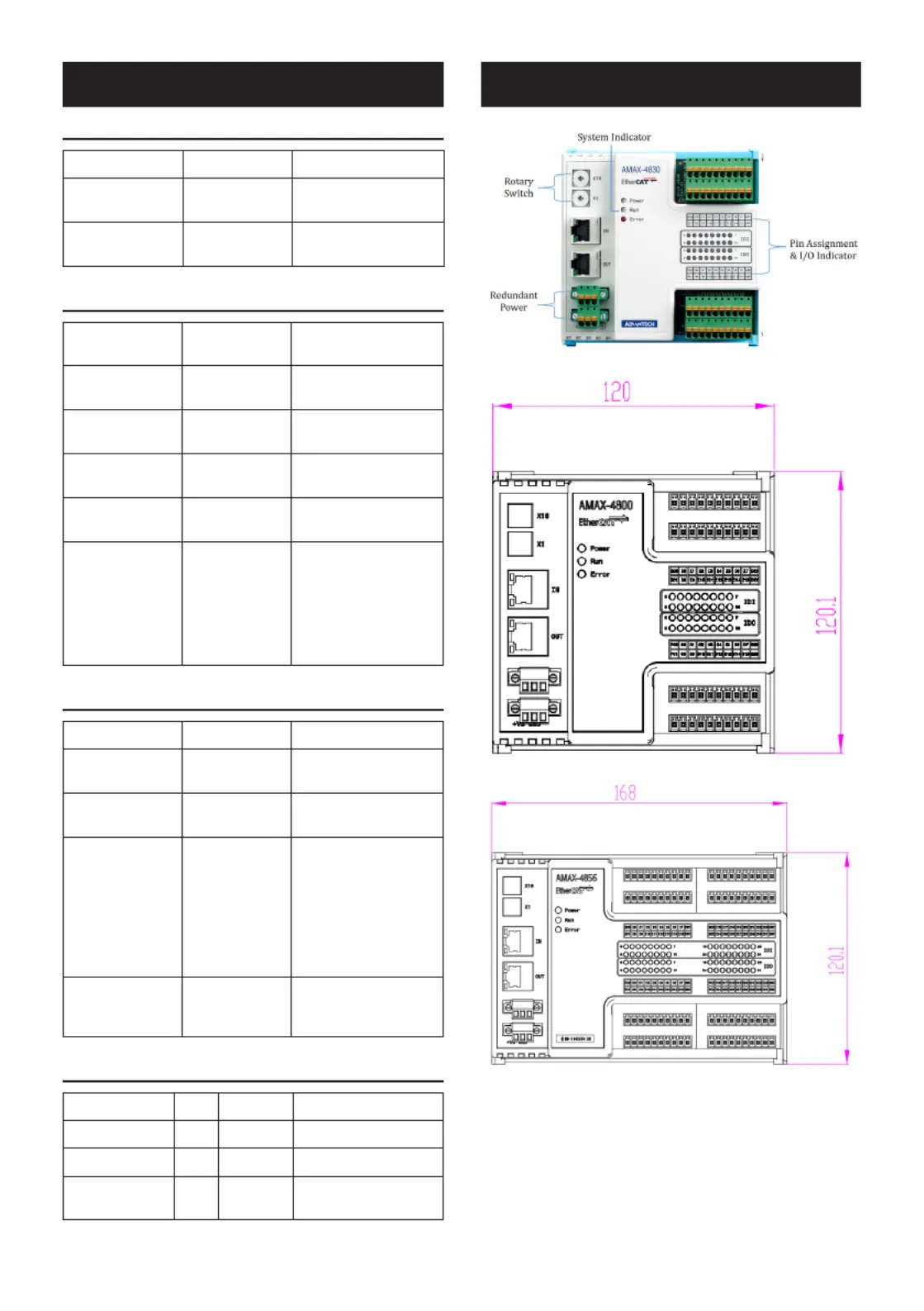

LEDs
PowerIndicator
IndicatorState SystemState Description
O Power o The system is not on/
power is o
On Power on The system is on/
power is on
RunIndicator
IndicatorState SubDevice
State
Condition
O Initialization The device is in the
Initialization state
Blinking Pre-Opera-
tional
The device is in the
Pre-Operational state
Single ash Safe Opera-
tional
The device is in the
Safe Operational state
On Operational The device is in the
Operational state
Flickering Bootstrap The device is booting
and has not yet en-
tered the Initialization
state/the device is in
the Bootstrap state/
rmware download in
progress
ErrorIndicator
IndicatorState ErrorName Description
O No error The device is in work-
ing condition
Blinking -Invalid congu
ration
General conguration
error
Single ash Local error A SubDevice device
application has
changed the EtherCAT
state autonomously
due to local error/
the error indicator bit
is set to 1 in the AL
Status register
Double ash Watchdog
timeout
An application
watchdog timeout has
occurred
LinkIndicator(onRJ-45)
IndicatorState Link Activity Description
On No Port open/connectedYes
Flickering Port open/connectedYes Yes
O No Not
applicable
Port closed/discon-
nected
Dimensions
