MIC-75G30 Startup Manual 1
Before you begin installing your Expansion Module, please
make sure that the following items have been shipped:
• 1 x MIC-75G30 i-Module P/N: MIC-75G30-00C1
• 2 x 4-pin Phoenix connectors P/N: 1652003234
• 1 x SATA cable (30 cm / 11.8 in) P/N: 1700017838
• 1 x SATA cable (40 cm / 15.7 in) P/N: 1700020978-01
• 1 x mounting bracket (L) P/N: 1960005359T003
• 1 x mounting bracket (R) P/N: 1960094392N001
• 6 x screws for mounting brackets P/N: 1930007259-01
• 2 x GPU brackets P/N: 1960094390N000
• 10 x screws for GPU brackets P/N: 1930005673-11
• 5 x shockproof rubber pads P/N: 1990000505T000
• 1 x MIC-75G30 Startup Manual P/N: 20415G3002
Note:
* MIC-7 series H SKU does not support MIC-75G30. Please
refer to the i-Module datasheet for the compatibility matrix.
* If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
MIC-75G30
Dual GPU Expansion Module for Video AI Edge
Computing with the MIC-7 Series
Startup Manual
• Slots1&3: Blank
• Slots2&4: PCIe x16 (signal PCIe x8) for GPU card
• Slot5: PCIe x4
Environment
• OperatingTemp.: 0~35°C / 32~95°F (35W CPU w/
industrial SSD)
• Vibration:With SSD: 1 Grms @ 5~500 Hz, random, 1
hr/axis
• Shock: With SSD: 10G, IEC-68-2-27, half-sine wave,
11ms duration
MechanicalInformation
• MIC-75G30N.W.: 5 kg / 11 lb; G.W.: 7 kg / 15.4 lb
• Dimensions(W×H×D): 280 × 192 × 385 mm (11 x 7.55 x
15.1 in) (The dimensions provided are the dimensions of
the i-Module assembled in the MIC-77xx Series)
Connectors
No. Item Function
1 DCIN1 24V
DC
in
2 PPCIE1 PCIe x16 slot
3 PPCIE2 PCIe x16 slot
4 PPCIE3 PCIe p1-x4 slot
5 SATAPWR1 4-pin SATA power connector (5V)
6 SATA signal connectorSATA1
7 SYSFAN1 4-pin fan connector
8 SYSFAN2 4-pin fan connector
9 GPUPWR1
6-pin power connector for GPU card
(12V, 17A)
10 GPUPWR2
6-pin power connector for GPU card
(12V, 17A)
11 GPUPWR3
6-pin power connector for GPU card
(12V, 17A)
12 GPUPWR4
6-pin power connector for GPU card
(12V, 17A)
13 DC12VOUT1 4-pin power connector (12V, 5A)
SpecicationsPackingList
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for MIC-770 at:
http://advt.ch/MIC75G30
Register your products on our website and get 2
months extra warranty for free at:
http://www.register.advantech.com
This manual is for MIC-75G30 Rev. C1.
Part No. 20415G3003 4th Edition
Printed in China January 2025

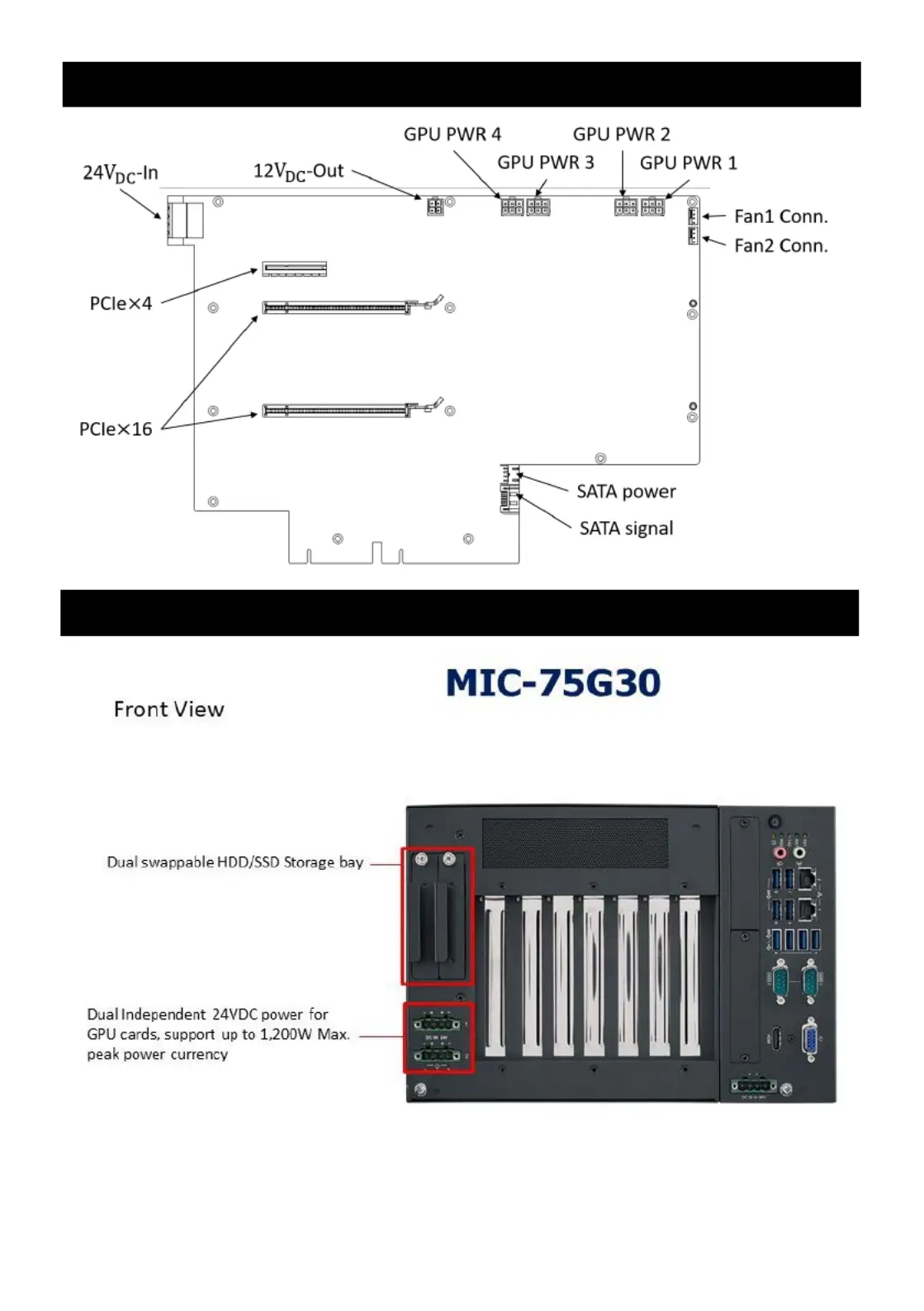

I/OConnectors
2 MIC-75G30 Startup Manual
I/OConnectors(Cont.)
FrontView
MIC-75G30 Startup Manual 3

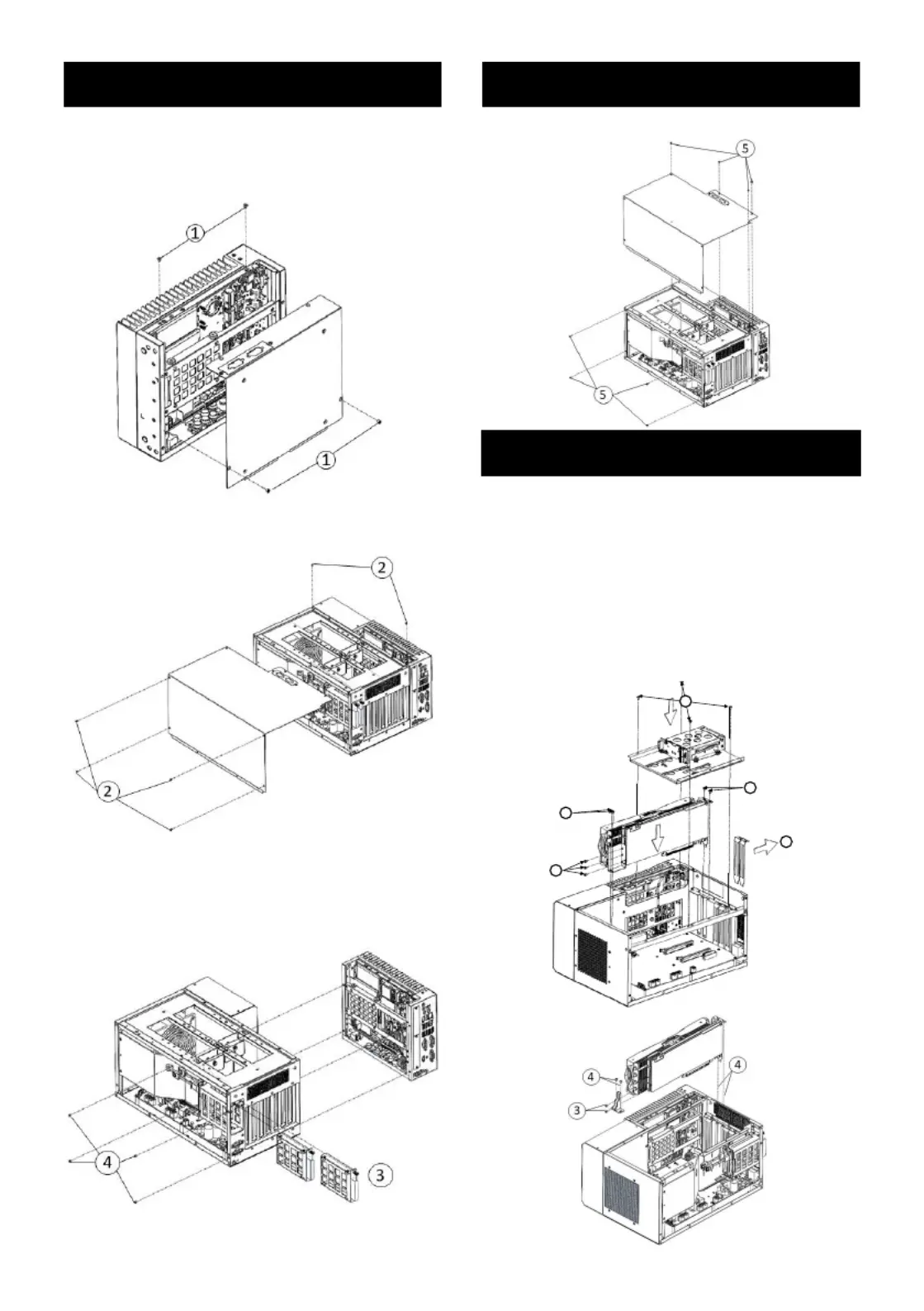

MIC-75G30 can be assembled with all MIC-7 series IPC
systems.
1. Unscrew the MIC-7 series system screws and re-
move the bottom cover.
2. Unscrew the 6 screws on MIC-75G30 and remove the
side cover.
3. Before aligning the MIC-75G30 and MIC-7 Series,
remove the HDD bracket and adapter bracket by undo-
ing the screws.
4. Secure the MIC-75G30 and MIC-7 Series using the 4
screws.
5. Secure the MIC-75G30’s side cover with 8 screws.
1. Remove the GPU bracket by unscrewing the 6 screws.
2. Remove the adapter bracket to make space for the
GPU card.
3. Secure the GPU bracket to the GPU card with 2
screws.
4. Secure the GPU bracket to the riser card and chassis
with 4 screws.
5. Secure the GPU backet back in place with 6 screws.
Note: The installation of the second GPU card works the
same way.
1
2
3
4
4
SimpleInstallationProcess
GPUCardBracketAssembly
SimpleInstallationProcess(Cont.)
Product specificaties
| Merk: | Advantech |
| Categorie: | Niet gecategoriseerd |
| Model: | MIC-75G30 |
