Pagina 1/6
AIMC-3202 Startup Manual 1
Before you begin installing your card, please make sure
that the following items have been shipped:
1. AIMC-3202 Bare System x 1
P/N: AIMC-3202-00A1E
(AIMC-3202-01A1E)
2. Driver CD x 1 P/N: 2061302900
3. USB 2.0 Cable x 1 P/N: 1700014398
4. USB 3.0 Cable x 1 P/N: 1700020277-01
5. Four-port USB Cable x 1 P/N: 1700014398
6. LPT Cable x 1 P/N: 1700002223
7. Mounting Brackets x 2 P/N: 1960014487T00C
8. Rubber Foot x 4 P/N: 1990012452S000
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of AIMC-3202, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
AIMC-3202
Micro Computer, Intel
®
Core™ i7/i5/i3 CPU,
H110, 2 Expansions, 250W 80Plus PSU
Startup Manual
Processor System
Processor
System
(0 ~ 40° C for
65W CPU)
(0 ~ 45° C for
35W CPU)
CPU
i7-
6700
i7-
6700TE
i5-
6500
i5-
6500TE
i3-
6100
i3-
6100TE
G
4400
G
4400TE
G
3900
G
3900TE
Core 4 4 4 4 2 2 2 2 2 2
Base
Frequency
3.4
GHz
2.4
GHz
3.2
GHz
2.3
GHz
3.7
GHz
2.7
GHz
3.3
GHz
2.9
GHz
2.8
GHz
2.6 GHz
L3 Cache 8M 8M 6M 6M 4M 4M 3M 3M 2M 2M
Chipset H110
BIOS AMI 128Mb SPI Flash
* Part Number iX-XXXXTX & GXXXXXX can use 1U CPU
Cooler for 2 Expansion slots. Other CPUs have to use 1.5U
Cooler for 1 Expansion slot.
BIOS
• AMI 128 Mbit SPI Flash
Chipset
• Intel H110
Memory
• Supports Dual Channel DDR4 1866/2133 16 GB per
DIMM, Max capacity is 32 GB
Graphic
• Chipset: Intel
®
HD Graphics
Expansion Slot
• AIMC-3202-00:
- One PCIe p1-x16 (Upper-layer slot)
- One PCIe p1-x4 (Lower-layer slot)
• AIMC-3202-01:
- One PCI (Upper-layer slot)
- One PCIe p1-x16 (Lower-layer slot)
Ethernet
• Chipset support:
- LAN 1: Intel
®
I219V
- LAN 2: Intel
®
I211AT
• Connection: 2 x on-board RJ-45 connector with LED
indicators
SATA
• Max Data Transfer Rate: 600 MB/s (SATA 3.0)
• HDD Bay: 2 internal 2.5”
I/O Interface
• Display: VGA + DVI-D
• USB: 3 USB3.0
• PS/2: 1
Watchdog Timer
• Programmable 1~255 sec/min
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the AIMC-3202 Series Rev. A1.
Part No. 2001320200
Printed in China
1st Edition
October 2016

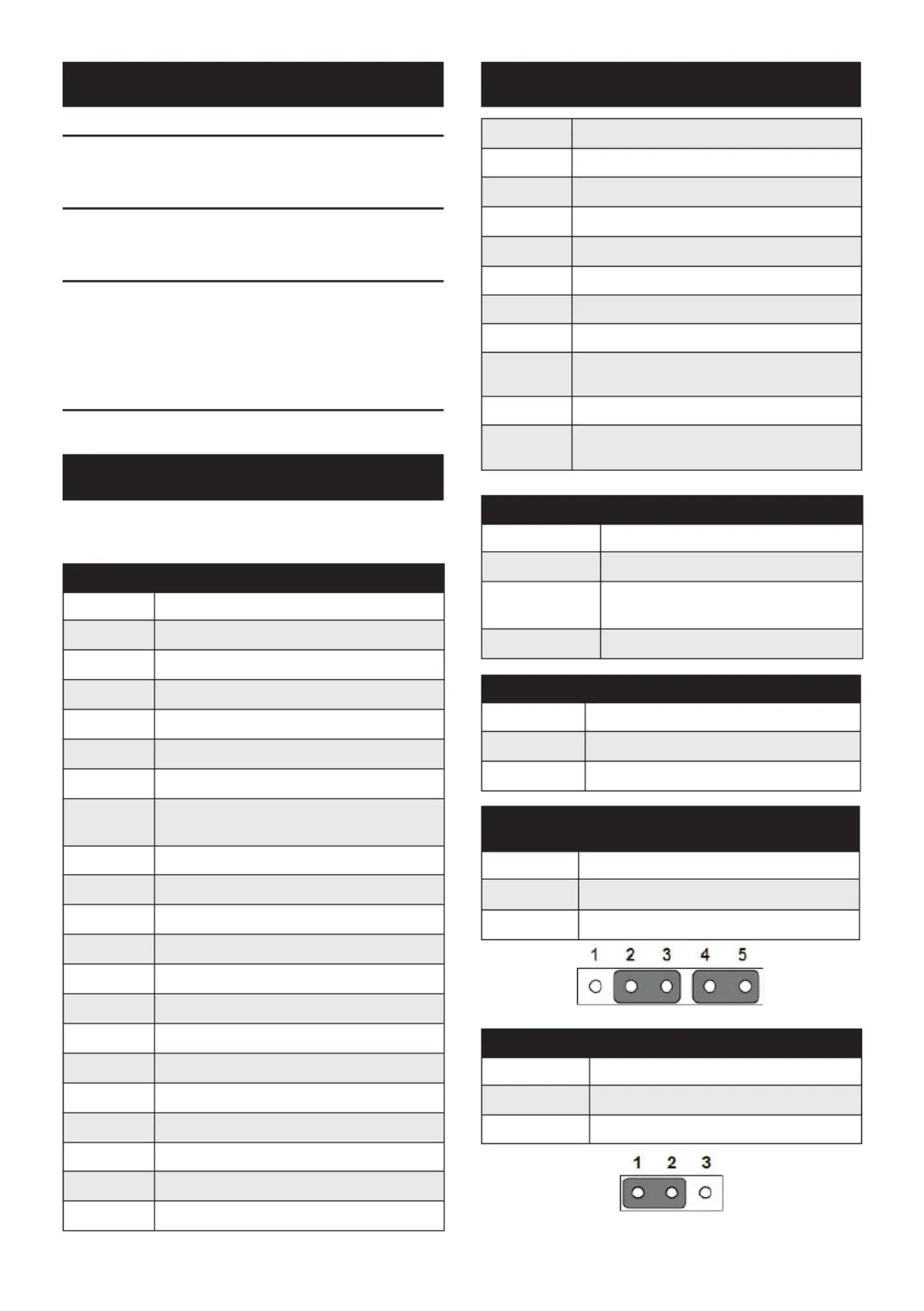

2 AIMC-3202 Startup Manual
Power Supply
• Output Rating: AC 250W, ATX
• Input Voltage: 100 VAC ~ 240 VAC
Cooling
• System Fan: 2 (6cm / 27.7 CFM)
• Air Filter: Yes
Environment
• Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
• Non-operating Temperature: -20 ~ 60°C (-4 ~ 140°F)
• Operating Humidity: 10 ~ 85% @ 40°C, non-condensing
• Non-operating Humidity: 10 ~ 95% @ 40°C, non-
condensing
Physical Characteristics
• Dimension (WxHxD): 232 x 90 x 232 mm
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Connectors
Label Function
LPT1 Parallel port, supports SPP/EPP/ECP mode
LAN1 Intel I219V
LAN2 Intel I211AT
VGA1 VGA connector
KBMS1 External keyboard/mouse connector
COM12 Box header for RS-232*2
FP1
HDD LED, power LED, SNMP SM_Bus,
reset, power on/off
JCASE1 Case open
CPUFAN1 CPU FAN connector (4-pin)
LANLED1 LAN1/2 LED connector
HDAUD1 HD audio extension module connector
USB1 USB port 1 (USB 3.0 port)
USB23 USB port 2, 3 (USB 3.0 port)
USB45 USB port 4, 5 (USB 2.0)
USB67 USB port 6, 7 (USB 2.0)
USB89 USB port 8, 9 (USB 2.0)
USB11 Type A connector on board (USB 2.0)
SATA0 Serial ATA1 (SATA 3.0)
SATA1 Serial ATA2 (SATA 3.0)
SATA2 Serial ATA3 (SATA 3.0)
SATA3 Serial ATA4 (SATA 3.0)
CPU1 CPU Socket
DIMMA1 Memory connector channel A
DIMMB1 Memory connector channel B
GPIO1 GPIO pin header
LPC1 Low pin count module expansion pin-header
PWR1 12 V, 5 V power connector
DVI1
DVI connector
DP1
Display pin header to stack board (Display
type depends on optional stack board)
EXPCIE1 mini PCIe pin header to stack board
MINIPCIE
MSATA
M-SATA (default) or mini-PCIe connector
(optional for PCE-4129)
Jumpers
Label Function
JCMOS1 CMOS clear
JOBS1+JWDT1
Hardware monitor alarm+watchdog
timer output selection
JME1 Enable ME
JCMOS1: Clear CMOS
Closed Pins Result
1-2 Keep CMOS (Default)
2-3 Clear CMOS
JOBS1+JWDT1: Hardware monitor alarm+watchdog
timer output selection
Function Jumper Setting
2-3 Enable watchdog timer (Default)
4-5 Enable Hardware monitor alarm (Default)
JME1: Enable ME
Closed Pins Result
1-2
Enable ME
(Default)
2-3 Disable ME
Jumpers and Connectors
Jumpers and Connectors
(Cont.)
Specications (Cont.)

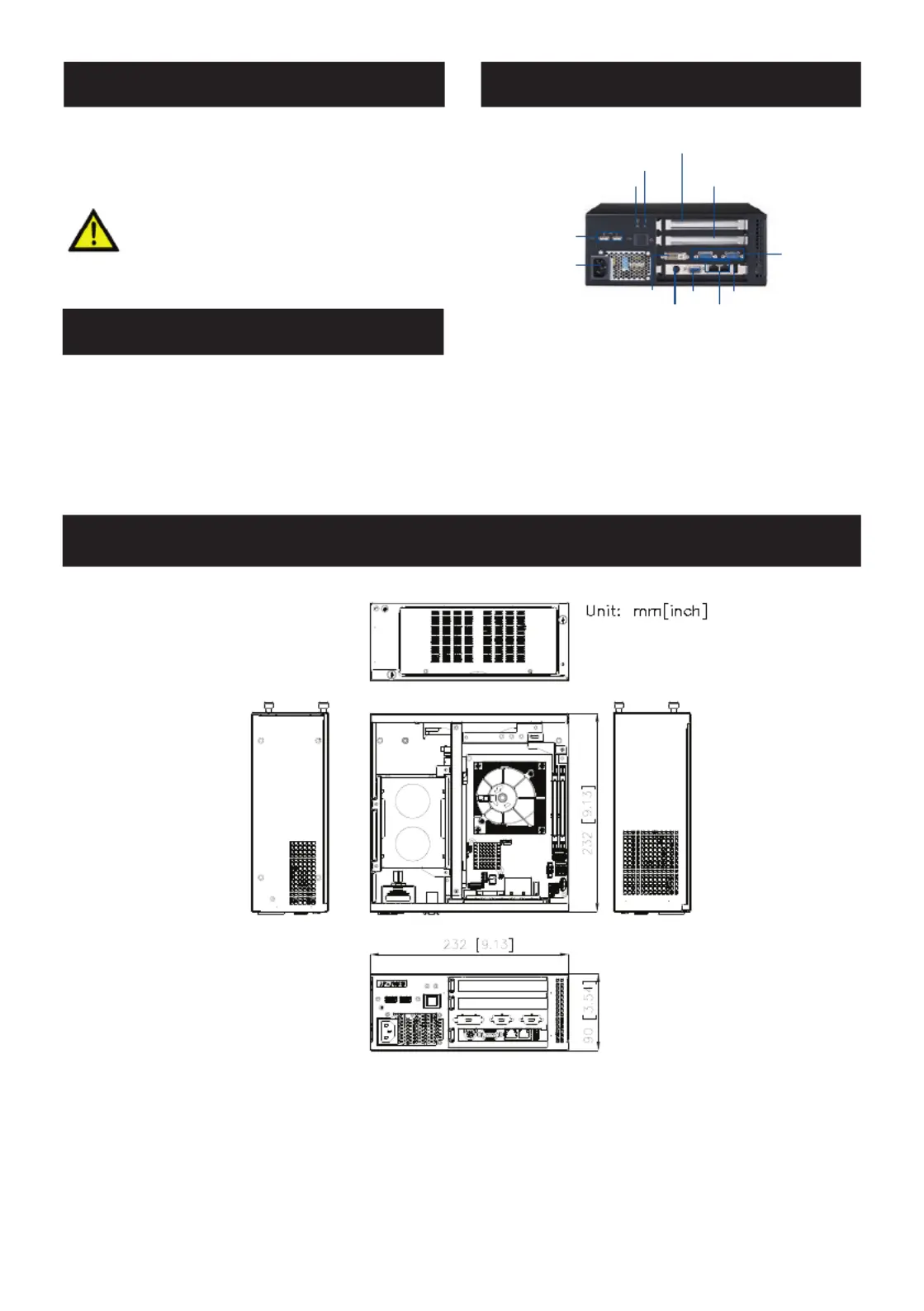

AIMC-3202 Startup Manual 3
The drivers for the AIMC-3202 are located on the software
installation CD. Please click through the folder and follow
the on screen instructions to install them.
Caution! The computer is supplied with a battery-pow-
ered realtime clock circuit. There is a danger
of explosion if battery is incorrectly replaced.
Replace only with same or equivalent type
recommended by the manufacturer. Discard
used batteries according to manufacturer’s
instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Declaration of Conformity
System I/O Interface
PCI-E x16 or PCI
(AIMC-3202-01)
Alarm LED
PCI-E p3-x4 or PCI x16
(AIMC-3202-01)
2 x RS-232
HDD LED
2 USB 3.0
USB 3.0VGADVI
250Watt 80Plus
Power Supply
Dual LANPS/2
Software Installation
System Dimensions
