Y1-03-0348 Rev. B

SAFETY NOTICE:

◎If replacing LED module, the LED module connector should be

connected correctly for positive and negative wires.

RED and BLUE: Positive (+)

BLACK and BROWN: Negative (-)

◎FCC RULE Part. 15.21：Changes or modifications not expressly

approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

◎This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

◎This searchlight is a Radio Frequency (RF) device which operates on

Channel 433.92 MHz. It will send out RF energy when it is in operation.

1. RF energy may affect some electronic equipment.

2. Some electronic equipment on vehicles or boats may be affected by

RF energy.

Contents Included in the RCL-95 Box:

•RCL-95 Searchlight / Mounting Screw Set & Mounting Template

•Handheld Wireless Remote Control

•Wired Joystick Controller & Cable

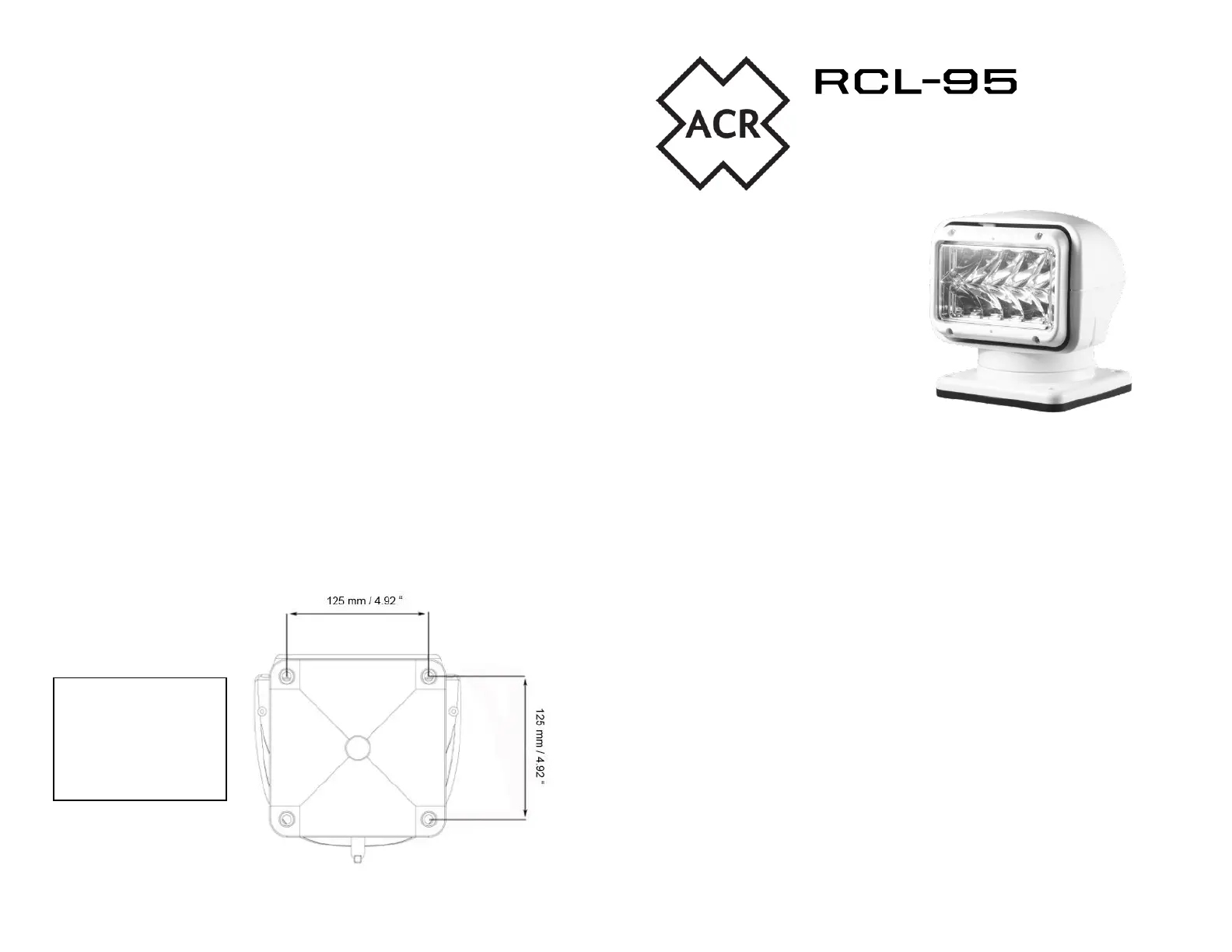

INSTALLATION:

Multi-Function

Motorized LED Searchlight

TECHNICAL MANUAL

FEATURES:

360° Continuous Rotation & 135° Tilt

Programmable Wireless Handheld

Remote Control

UV Ray and Saltwater Resistant

Automatic return to home position

when searchlight is turned off*

*Important Notice: If searchlight DC

power is disconnected (wires

disconnected from battery or power

supply switched off), after

reconnecting to power, make sure to turn on the searchlight using the

wireless or wired remote, to make a full 360° rotation, in order to reset the

home position memory.

SPECIFICATIONS:

Housing Color: Black (p/n 1959) / White (p/n 1958)

Performance: 360° Continuous Rotation / 135° Tilt

LED Module:

Lamp: 10 OSRAM High Power LEDs

Wattage: 50W

Luminous intensity: 460,000 Candelas

Color Temperature:5,700-6,000K

Beam distance: 4501 ft (1372m)

Beam Pattern: Spot

Energy Efficient: 4 Amps (12V) to 2 Amps (24V)

Cast Aluminum Heat Sink & Hardened Polycarbonate Lens

IP 68 LED Module / IP 56 Housing

Radio Frequency: 433.92 MHz

Wireless Remote Operation Distance:213 ft. (65m)

Power: 12V-24V (Multi-voltage)

Weight: 4.2 lbs / 1.9 Kgs

Approvals: FCC / CE / R10

Working Environment: -30°C (-22°F) to +70°C (+158°F)

Caution:

Do not mount the

searchlight upside

down to prevent

inadvertent entry of

moisture
