Y1-03-0347 Rev. A

SAFETY NOTICE:

◎If replacing LED module, the LED module connector should be

connected correctly for positive and negative wires.

RED and BLUE : Positive (+)

BLACK and BROWN : Negative (-)

◎FCC RULE Part. 15.21：Changes or modifications not expressly

approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

◎This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

◎This searchlight is a Radio Frequency (RF) device which operates on

Channel 433.92 MHz. It will send out RF energy when it is in operation.

1. RF energy may affect some electronic equipment.

2. Some electronic equipment on vehicles or boats may be affected by

RF energy.

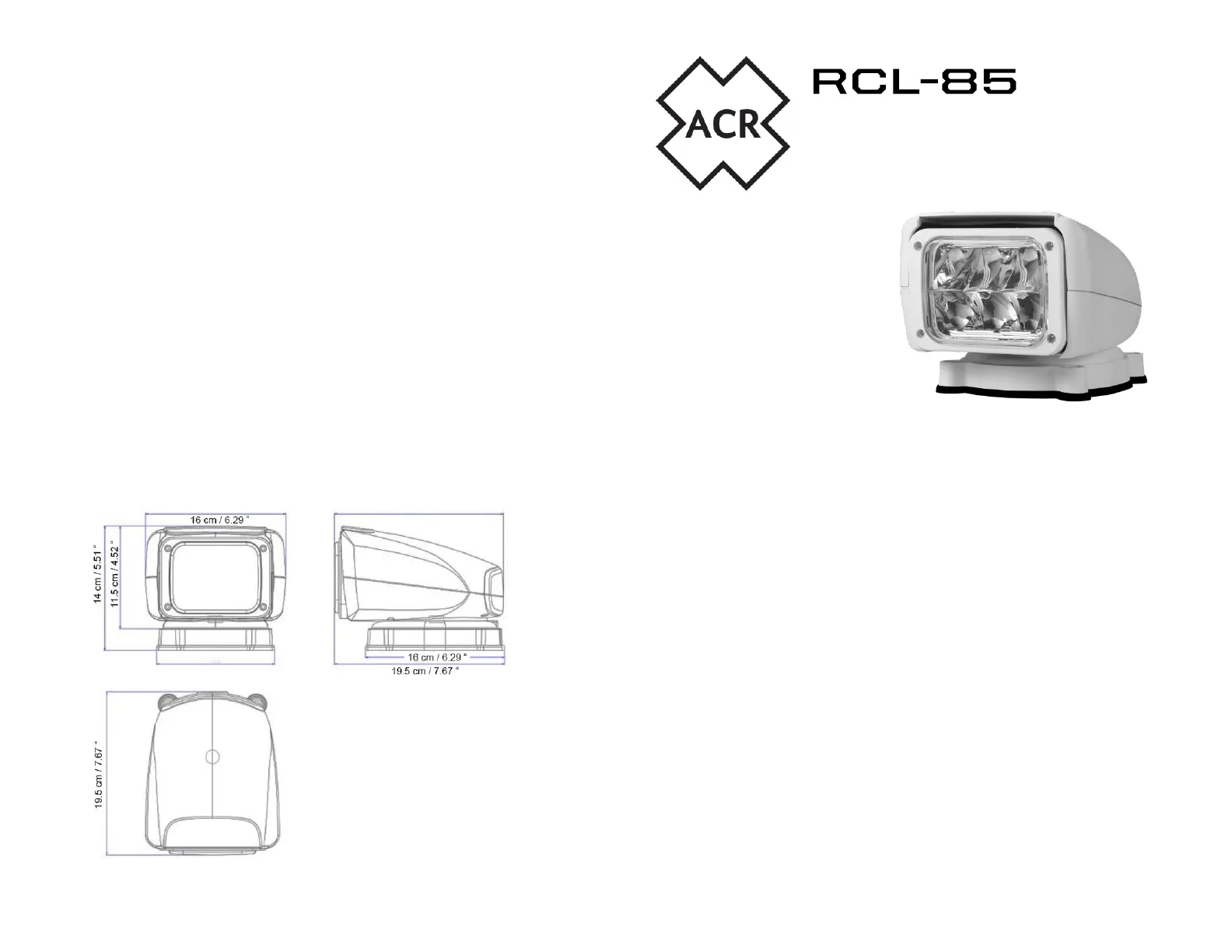

RCL-85 Dimensions:

Multi-Function

Motorized LED Searchlight

TECHNICAL MANUAL

FEATURES:

350° Rotation & 90° Tilt

Programmable Wireless

Handheld Remote Control

UV Ray and Saltwater Resistant

Durable Weatherproof

Construction

Working environment: -30℃

(-22℉) to +70℃(+158℉)

SPECIFICATIONS:

Housing Color:Black (p/n 1957) / White (p/n 1956)

Performance: 350° Rotation / 90° Tilt

LED Module:

Lamp: 6 OSRAM High Power LEDs

Wattage: 30W

Luminous Intensity: 240,000 Candelas

Color Temperature: 5,700-6,000K

Beam Distance: 3215 ft (980m)

Beam Pattern: Spot

Energy Efficient: 2 Amps (12V) to 1 Amp (24V)

Strobe Function Included

Aluminum Housing as Heat Sink & Polycarbonate Lens

IP 68 LED Module / IP 56 Housing

Radio Frequency: 433.92 MHz

Wireless Remote Operation Distance: 213 ft. (65m)

Unit Size:7.7” X 6.3” X 5.5” (195 X 160 X 140mm)

Power: 12V-24V (Multi-voltage)

Weight: 3.53 lbs / 1.6 Kgs

Approvals: FCC / CE / R10
