Zurn Industries, LLC

5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330 · Ph. 1-800-997-3876, Fax 919-775-3541

In Canada

|Zurn Industries Limited

7900 Goreway Drive Unit 10, Brampton, Ontario L6T5W6 · Ph. 905-405-8272, Fax 905-405-1292

www.zurn.com

Rev. B

Date: 10/29/2018

C.N. No. SAN008373

Prod. | Dwg. No. IS7080

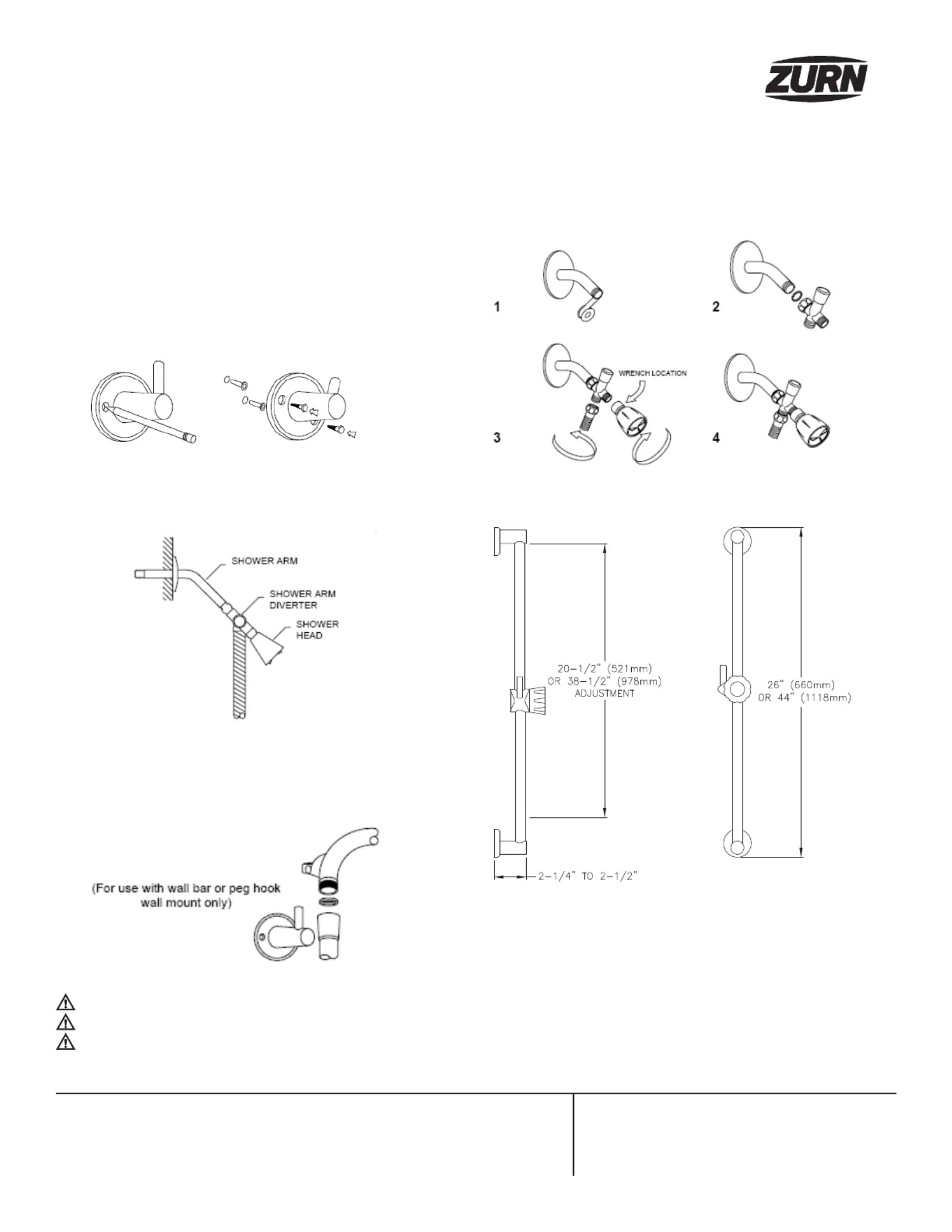

 Installation Maintenance Instructions

Z7000-HS

Hand Shower

Wall Mount/Swivel Mount Installation

Position wall mount where desired (shower head will be

approximately 4" above mount). Mark hole locations on wall

surface. Be sure mount is straight. Remove mount. Slightly

nick center of holes with center punch. Drill holes. Insert plastic

anchors into holes. Place mount in position insert screws.

Tighten.

Shower arm diverter used in the “-HS” assembly should be

installedbetween the shower arm & shower head.

Shower Arm Diverter Installation

Thread swivel connection on to your present shower arm. Be

sure all gaskets are in place. Attach shower head onto end of

diverter in-line with shower arm. Attach hose to fitting 90° from

center-line of shower head. Tighten all fi ttings and your shower

is ready to use.

-VB Option: If your hand shower assembly has been equipped with

an in-line (-VB) vacuum breaker, be sure hose end with vacuum

breaker is connected at water supply end (NOT TO HANDSET).

Diverter Valve Installation

Wall Bar Installation

TEMP-GARD

WARNING: Cancer and Reproducve Harm - www.P65Warnings.ca.gov

ADVERTENCIA: Cáncer y daño reproducvo - www.P65Warnings.ca.gov

AVERTISSEMENT: Cancer et effets néfastes sur la reproducon - www.P65Warnings.ca.gov
