KEY FEATURES

• Compact, high-resolution camera for license plate holder

• Two different mounting solutions included in set content

• System design allows front- or rear- mounting and use

• Detailed high contrast picture ideally suited for twilight conditions

• Separable 3-part system cable, with cable lengths of 0.7 m +

7.0 m + 0.7 m

• Normal or mirror image picture output selectable

DESCRIPTION:

The ZENEC license plate cam model ZE-RVC55LP was developed

for use on almost any license plate holder, allowing retrofitting of a

great variety of vehicles. The picture can be outputted as normal or

mirror image, for mounting and utilization of this model as front- or

as rear view camera. With two different mounting options, the ZE-

RVC55LP is ideal for use on almost any vehicle.

This product is compatible with a wide variety of 2-DIN A/V receivers

of the aftermarket and the ZENEC E>GO product line up, including

ZENEC 2-DIN Infotainers and Naviceivers.

CAUTION:

■Use the included connection cable exclusively. Altering or replacing it will void your warranty.

■The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,

vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera

models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.

ZE-RVC55LP

ZE-RVC55LP

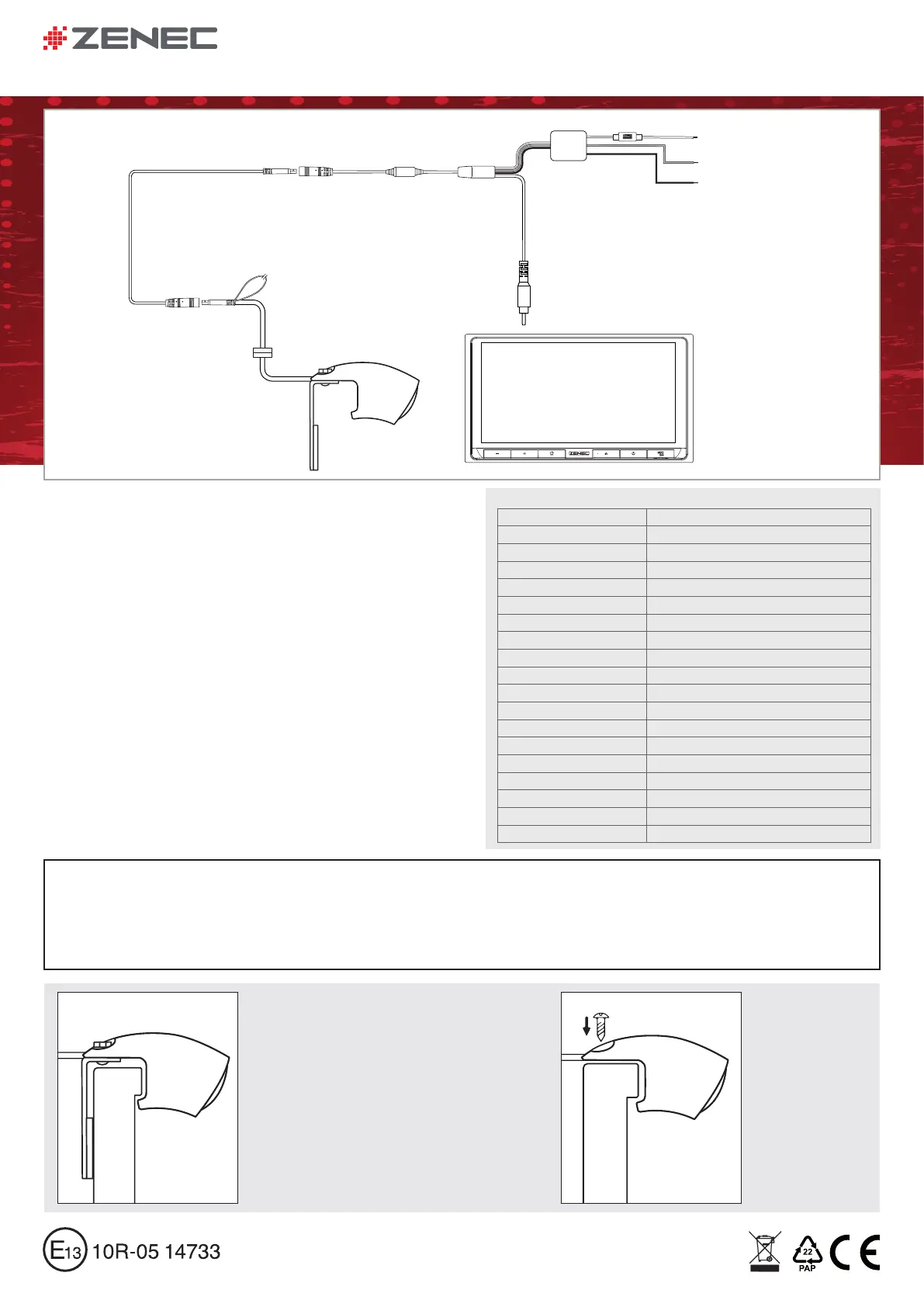

MOUNTING INSTRUCTIONS

LICENSE PLATE CAM

LICENSE PLATE CAM

Video Out

(connect to Infotainer / Naviceiver)

Red: Cam PWR (+12 V)

7.0 m

0.7 m

0.7 mBlack: GND

Rear camera mode: Green cable open

Front camera mode: Green cable twisted

2A fuse

Technical Specifications:

Image device: ¼” / 6.4 mm Aptina ASX340 CMOS sensor

Lens focal length: f1.5

TV system: NTSC / 60 Hz

View angle: 180°(D) x 140°(H) x 90°(V)

Native sensor resolution: 680 (H) x 512 (V) pixels

Resolution of video-out: > 420 TV lines

Frame rate: 60 fi elds/sec.

Signal to noise ratio: > 48 dB

Light sensitivity: 0.5 Lux/F1.2/50IRE

Video output: 1.0 Vp-p, 75 ohms CVBS

White balance: Auto

Backlight compensation: Auto

Gamma correction: 0.45

Gain control: Auto

Sync system: Auto

Power supply: 12 DCV (9 V – 16 V)

Current consumption: 40mA (DC12V) / ≤ 480mW

IP protection rating: IP69K

Operating temperature: -30°C~+75°C

Yellow: B+ 12V (KL15)

There are two ways to install the ZE-RVC55LP:

Alternative 1:

You can attach the camera with the enclosed

aluminium bracket and the adhesive pad on the back

of the license plate holder. The aluminium bracket can

be adjusted by bending individually to the respective

vehicle.

Alternative 2:

Screw the camera directly onto the top of the license

plate holder using the enclosed screws.

Drill a hole with the diameter Ø 6,5 mm and put the

cable through it. The rubber seal must seal the hole

completely.

Alternative 1Alternative 2

ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland,

EU Legal Representative:

ACR S & V GmbH∙Industriestr. 35∙D-79787 Lauchringen∙ Germany ∙ www.zenec.com

Rev.F

Made in Taiwan
