Pagina 1/12
G-5500DC
Instruction Manual

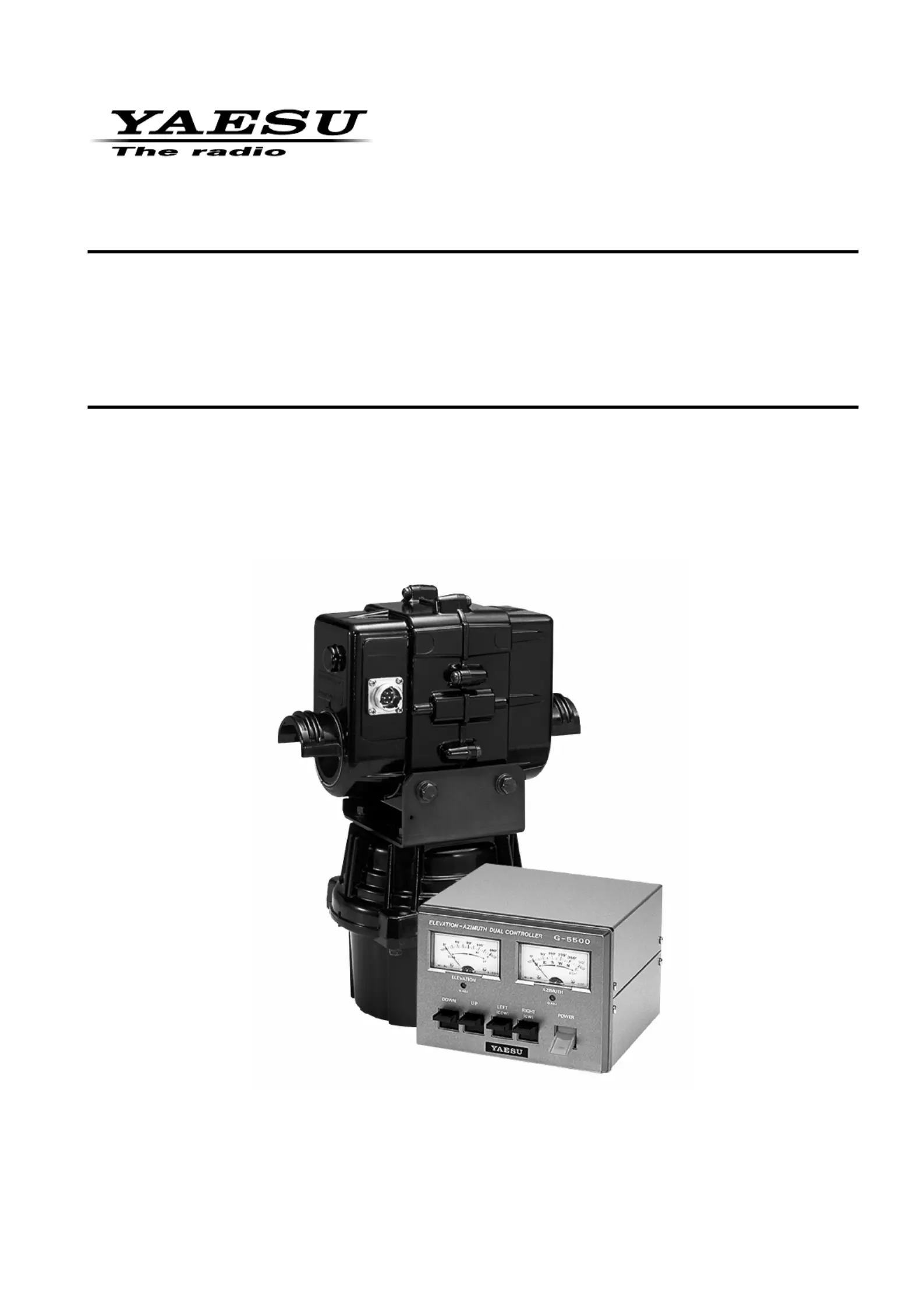

The Yaesu G-5500DC provide 450° azimuth and 180° elevation control of medium- and large-size
unidirectional satellite antenna arrays under remote control from the station operating position. The
rotators may be mounted together on a mast, or independently with the azimuth rotator inside a tower
and the elevation rotator on the must.
The controller unit is a handsomely-styled desktop unit with dual meters and direction controls for az-
imuth, in compass direction and degrees; and elevation, from 0° to 180°. An External Control jack is
provided on the rear of the controller for interfacing via D-to-A converters to an external microcomput-
er or other display/controller.
Please read this manual carefully before installing the rotators.
SPECIFICATIONS
Voltage requirement: 110-120 or 200-240 VAC
Motor voltage: 22 VDC
Rotation time (approx.): Elevation (180°): 65 sec. ± 20%
Azimuth (360°): 60 sec. ± 20%
Maximum continuous operation: 3 minutes
Rotation torque: Elevation: 12 kg-m (88 ft-lbs)
Azimuth: 6 kg-m (44 ft-lbs)
Braking torque: Elevation: 40 kg-m (289 ft-lbs)
Azimuth: 40 kg-m (289 ft-lbs)
Vertical load: 200 kg (440 lbs)
Pointing accuracy: ±4 percent
Wind surface area: 1 m
2
Mast diameter: 38-63 mm (1-1/2 to 2-1/2 inches)
Boom diameter: 32-43mm (1-1/4 to 1-5/8 inches)
Weight (approx.): Rotators: 8 kg (17.7 lbs)
Controller: 3 kg (6.6 lbs)
UNPACKING & INSPECTION
When unpacking the rotator conrm the presence of the following items:
Elevation Rotator Unit.......................................1
Azimuth Rotator Unit 1 ........................................
Controller Unit...................................................1
Mast Clamp (pair) 2 .............................................
Pipe clamp 2 ........................................................
U Bracket 1 ..........................................................
M8 x 16 Hex. Bolt 4 .............................................
M8 x 25 Hex. Bolt 8 .............................................
M8 x 70 Hex. Bolt 4 .............................................
M8 x 95 Hex. Socket Bolt 1 .................................
U-Bolt................................................................2
6mm Spring Washer 4 .........................................
6mm Flat Washer 4 .............................................
8mm Spring Washer 18 .......................................
8mm Flat Washer 12 ...........................................
M8 Square Nut 1 .................................................
M8 Hex. Nut......................................................4
M6 Hex. Nut......................................................4
8-pin DIN Plug 1 ..................................................
7-pin Round Plug (with Rubber Boot) 2 ...............
Spare Fuse (117V: 2A, 220V: 1A) 1 ....................
Spare Fuse (3A) 2 ...............................................
Spare Fuse (0.5A) 1 ............................................
Instruction Manual 1 ............................................
If any of these items are missing or appear to
be damaged, save the carton and packing ma-
terial and notify the shipping company (or deal-
er, if purchased directly at his shop).
Before proceeding with installation, conrm that
the AC voltage label on the rear of the Con-
troller matches your local line voltage: either
“117V” for 110 to 120 VAC, or “220V” for 220 to
240 VAC. If the labeled voltage range does not
match, return the controller to the dealer from
whom you purchased it (different power trans-
formers are installed for the different voltage
ranges).
Note that cable is not included with the rota-
tor, as the length must be determined case-by-
case. Contact your Yaesu dealer to obtain the
length of cable your installation requires. For
runs of over 100 feet, use #18 AWG instead of
#20 AWG.
1
Safety Precautions (Be Sure to Read)
Yaesu is not liable for any failures or problems caused by the use or misuse of this product by the pur-
chaser or any third party. Also, Yaesu is not liable for damages caused through the use of this product
by the purchaser or any third party, except in cases where ordered to pay damages under the laws.
Types and meanings of the marks
WARNING
This mark indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
CAUTION
This mark indicates a potentially hazardous situation, which, if not avoided, may result in mi-
nor or moderate injury or only property damage.
Types and meanings of symbols
These symbols signify prohibited actions, which must not be done to use this product safely.
These symbols signify required actions, which must be done to use this product safely.
WARNING
Please read this user manual thoroughly and familiarize
yourself with the correct installation procedure before
starting installation.
Installing this product requires work to be undertaken high
above ground. Performing work with which you are unfamiliar
can lead to fatal accidents due to falling.
Similarly, failing to install the product correctly can be a cause
of the antenna and associated equipment collapsing, resulting
in a fatal accident or damage to houses or other property. Ac-
cordingly, always check all safety considerations before start-
ing work.
Always wear a safety harness when working high above
ground.
Failure to use a safety harness can be a cause of death or se-
rious injury.
Never disassemble or modify the unit.
When working high above ground, ensure that there are
no people at ground level.
Dropping tools, bolts, or other parts could result in death or
serious injury.
Ensure that the size of the antenna attached to this prod-
uct is within the specifications listed in this manual.
Attaching an antenna that is larger than allowed by the speci-
fications can be a cause of the antenna and associated equip-
ment collapsing, resulting in a fatal accident or damage to
houses or other property.
Ensure that the bolts and other fasteners used for installation
are tightened securely.
Failure to tighten bolts and other fasteners sufficiently can be a
cause of the antenna and associated equipment collapsing, result-
ing in a fatal accident or damage to houses or other property.
CAUTION
When installing this product, take care not to jam your fin-
gers between parts or cut fingers on edges of parts.
If the condition of the equipment is abnormal such as
emitting smoke or an unusual smell, continuing to use the
equipment may result in fire or malfunction.
In such cases, turn off the power immediately and unplug from
the power socket.
After checking that the equipment is no longer emitting the
smoke or unusual smell, return the product to the vendor or to
your nearest Yaesu office or service center for repair.
In the event of foreign material getting inside the control-
ler, turn off the power immediately and unplug from the
power socket.
Continuing to use the product in this condition can result in fire
or malfunction.
Do not use the product with a power supply voltage other
than the specified voltage as this can cause fire or electric
shock.
In the product is to remain unused for a long period of
time, unplug the AC power cable from the AC wall outlet
and Rotator Control Cable from the jack for safety.
Do not operate continuously for more than 3 minutes.
The equipment can be operated for up to 5 minutes but oper-
ation must be halted and the motor rested for at least 15 min-
utes afterwards.
There are no serviceable parts inside the rotator or con-
troller; therefore, never open these units.
Do not place the controller in an unstable position such as
on an unsteady or sloping surface as this can cause the
controller to fall or tip over causing injury.
Do not place heavy objects on the power cable and do not
excessively bend or pull the cable.
Damage to the power cable can cause fire or malfunction.
Do not place the controller in direct sunlight or close to
heaters as this can cause the box to distort or discolor.
Do not place the controller in humid or dusty environ-
ments as this can cause fire or malfunction.
Do not place the controller in enclosed or poorly ventilat-
ed positions such as in a bookshelf as this can cause fire
or faults.
Do not place the controller on carpet or bedding as this
can cause heat to build up internally resulting in fire.
Do not place heavy objects on top of the controller as this
can cause the controller to fall or tip over causing injury.
Do not place small metal objects such as paper clips on
top of the controller as these can fall into the controller
causing fire or malfunction.
Do not wipe the controller with solvents such as thinner
or benzene as this can cause the box to distort or discol-
or.
Use only a soft, dry cloth to wipe stains from the case.
Do not turn on the power supply until rotator and control-
ler setup is complete.
