1 KHz

PINK

NOISE

1 KHz

PINK

NOISE

1 KHz

PINK

NOISE

1 KHz

PINK

NOISE

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO

USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO

RAIN OR MOISTURE.

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert

the user to the presence of uninsulated "dangerous voltage" within the product's enclosure

that may be of sucient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the product.

TYPICAL VALUES AND TOLERANCES

GENERATOR

1/4" UNBAL JACK

XLR BALANCED JACK

-40, -20, -10 dBu-40, -20, -10 dBu

-40, -20, -10 dBu-40, -20, -10 dBu

1 kHz Tone (±1 dB)

Pink Noise (±1 dB)

English Manual

www.xvive.com

AUDIO TESTER

Ultra

AT-3

INPUT METER

1/4" UNBAL JACK

XLR BALANCED JACK

n/a-20 dBu

n/a+10 dBu

'SG' Threshold

'

PK' Threshold

IMPEDANCE

1/4" UNBAL JACK

XLR BALANCED JACK

600 Ω350 Ω

600 Ω / 3.5 kΩ3 kΩ

Output

Input)

VOLTAGES

1/4" UNBAL JACK

XLR BALANCED JACK

n/a

solid: 44 - 52 V

ashing: 24 - 44 V

n/a3.3 V

Phantom Power

Cable Tester DC

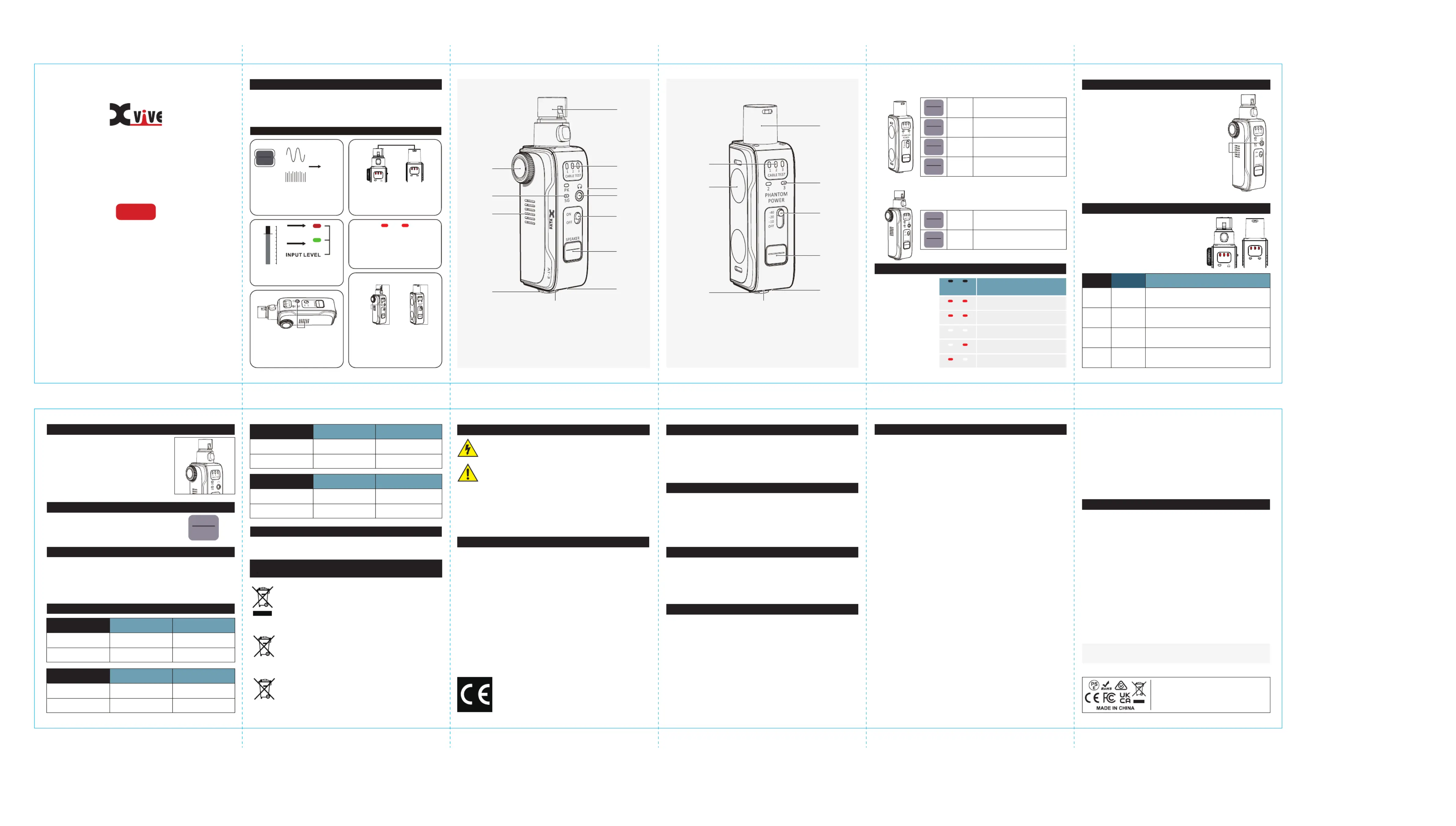

OVERVIEW

The Xvive AT-3 is a professional, split-design audio testing tool with independent male and

female XLR units for maximum exibility. It features signal generation, input/output monitoring,

phantom power detection, and upgraded long-distance cable testing for XLR/DMX. With

increased battery capacity (up to 700mAh), it's ideal for testing speakers, pedals, cables, DI

boxes, IEMs, mixers, and more—perfect for audio engineers and live sound professionals!

料号：111081436 AT-1 说明书 展开尺寸：540*139mm 成品尺寸：90*138mm 材质：100G书纸 风琴折彩色印刷

FCC REGULATION WARNING

USE OF POWER ADAPTER

ONE-YEAR LIMITED WARRANTY

INFORMATION ABOUT COLLECTION AND

DISPOSAL OF OLD ITEMS AND USED BATTERIES

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

SAFETY INSTRUCTIONS

• Only charge the AT-3F and AT-3M units with chargers recommended by Xvive.

• Keep out of reach of children.

• Do not expose the product to moisture or extremely high-temperatures.

• Switch rechargeable battery-powered products o after use.

• Only charge the units at ambient temperatures between

10°C (50°F) and 40°C (104°F).

• Do not mutilate or dismantle the product.

• Do not heat above 60°C (140°F). Do not expose to direct sunlight or throw into a re.

• If your product appears defective, stop using it immediately and contact your authorized

dealer or Xvive support.

• Store the product in a cool and dry place at room temperature (approx. 20°C / 68°F).

• Xvive does not accept any liability for damage arising from abuse or misuse.

Xvive Corporation Ltd. [Xvive] warrants our products to be free of defects in materials and

workmanship in normal use for a period of one (1) year from the date of original purchase.

Please visit to register your new purchase.https://www.xvive.com

Xvive will, at its sole discretion, or in cooperation with our authorized retailers, repair or

replace at no charge, any unit that is inspected by Xvive or an aliated Xvive service center

and deemed to be defective within the warranty period. This warranty is non-transferrable.

This warranty is only valid to the original purchaser, only when purchased “new-in-box” from

an Authorized Xvive Dealer and with a valid proof of purchase bearing the purchase date.

Within the USA:

• All Xvive warranty claims should be made with the retailer from which the unit was

purchased. This applies to both retail stores and online retailers.

Outside of the USA:

• For all warranty and non-warranty claims, the purchaser should contact the Authorized

Xvive Retailer from which the unit was purchased within the country or province in which

it was purchased for information on how to obtain warranty or non-warranty service.

This limited warranty does not cover the following:

• Products that have been modied in any way;

• Any products whose serial numbers have been altered or removed;

• Exterior cosmetic damage or damage to the nish due to misuse or normal wear and tear;

• Products that were purchased as “used”, items listed as demo stock or refurbished items;

• Damage to the product or parts caused by improper storage by the user;

• Any freight charges (from or to the retailer);

• Shipping Damage:

- Shipping damage claims must be led with the freight carrier (such as UPS, FedEx).

- Notify the freight carrier immediately of any shipping damage upon receipt of damaged

items to begin the claim process.

- We also recommend reporting any shipping damage claim within 48 hours of receipt

to the Authorized Retailer from which the item was purchased.

- Keep all original documents and packing materials until the freight damage claim has a

nal resolution.

For units returned to Xvive USA:

• The item must be returned in the same format in which it was purchased. If a system containing

a transmitter and receiver was purchased, then both units will need to be returned together.

• The purchaser will pay all freight charges to return the original item to Xvive USA or its

aliated service centers.

• If the unit is deemed to be covered by this warranty, Xvive will ship the repaired or replacement

unit to the purchaser free-of-charge and without any additional freight charges.

• If the unit is deemed to NOT be covered by this warranty, other charges plus return freight

charges will apply.

Cd

These symbols on the products, packaging, or on any documents in the

package mean it is incorrect to mix the used electrical and electronic

products and batteries with general household garbage.

To protect our environment, please take old products and used batteries to

proper collection places, and follow your national legislation and the

Directives 2012/19/EU and 2006/66/EC.

To deal with these old products and batteries properly, please help to save

valuable resources and prevent any possibility of side eects on human

health and our environment due to the inappropriate disposal of the old

products and used batteries.

You can contact your local authority for getting more helpful information

on how to dispose the recycling and collection of the old products and

batteries.

[For business users in the European Union]

If you want to discard electrical and electronic item, please contact your

dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. Please contact your

local authorities or dealer for more information on disposal of old items and

used batteries.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

• Please use a power adapter with the local country certication label.

• Please check the supported voltage and current of the power input and output.

• Please read the warning indications on the power adapter carefully before use.

• When pulling out the power plug from the socket, please hold the plug part of the power cord.

• Please disconnect the power adapter plug from the socket when not

using the device for a long time or when there is a lightning strike.

EXCEPT AS EXPRESSLY SET FORTH ABOVE IN THIS LIMITED WARRANTY, XVIVE MAKES NO OTHER

EXPRESS OR IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY LAW. XVIVE ASSUMES NO

LIABILITY FOR PROPERTY DAMAGE RESULTING FROM FAILURE OF THIS PRODUCT NOR ANY LOSS

OF INCOME, SATISFACTION, OR DAMAGES ARISING FROM THE LOSS OF USE OF SAME DUE TO

DEFECTS OR AVAILABILITY OF SAME DURING SERVICE. THIS WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR

BY COUNTRY OR PROVINCE.

For warranty inquiries not covered in this policy,

please contact [email protected]

Declaration of Conformity:

This product complies with the requirements of EMC Directive

2004/108/EG and Low Voltage Directive 2006/95/EC

2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town,

Baoan District, Shenzhen Guangdong China. 518101

E-mail: support@xviveaudio.com

Tel: +86-755-2786 6639

SHENZHEN FZONE TECHNOLOGY CO., LTD.

CARE OF DEVICE

1. Do not drop, hit, or apply excessive force to the device.

2. Handle with care and avoid any objects or liquids entering the device.

3. Do not place the device in a place with excessively high or low temperature.

4. Do not place the device near heat sources, such as heaters or ovens.

5. Do not place the device in a place with excessively high humidity or with splashing water.

6. Do not place the device in a place with frequent shaking.

7. Do not place the device in a place with excessive sand or dust.

CLEANING OF DEVICE

1. Use a soft dry cloth to wipe o dirt on the exterior of the device.

2. You can slightly dampen a cloth to remove stubborn dirt.

3. When the rubber or silicone parts of the device are stained, use a lint-free cloth slightly

dampened to clean.

4. Do not use abrasive cleaners, wax, alcohol, benzene or paint thinner as a solvent to wipe

the device.

OPERATION OF DEVICE

1. Before connecting any device, please make sure to turn o all device power.

2. Before moving the device, please disconnect all connection cables.

3. Long-term continuous use of the device may cause it to slightly heat up. Touching it

without a burning sensation is normal.

4. Do not hold the device with power on for a long time. Avoid holding it continuously for

a long time during use when it is heating up.

5. Do not use the device for a long time at high volume.

折线折线折线折线折线

1. SIGNAL GENERATOR:

Outputs a 1 kHz sine wave or pink noise audio

signal through male XLR, 1/4", and 1/8" connectors,

with three output level options: -10 dB, -20 dB,

and -40 dB.

2. XLR CABLE TESTER:

Checks whether all three pins of the XLR cable

are properly connected, and supports split-unit

remote testing (one unit on each end) for quick

troubleshooting and diagnosis of long cables.

3. XLR INPUT METERING:

Measures the input volume level of the female

XLR connector.

4. PHANTOM POWER CHECK:

Tests the output voltage of the phantom

power

and ensures both pins are functioning

properly.

5. HEADPHONE AND SPEAKER MONITORING:

When an audio source is connected to the

female XLR or 1/4" input, you can monitor the

signal with headphones or speakers via the

1/8" headphone jack.

6. INDEPENDENT OPERATION:

The AT-3M unit transmits sine wave or pink noise

signals via the XLR-M or 1/4" audio send output,

while the AT-3F unit receives audio signals through

the XLR-F or 1/4" input and routes them to

headphones or a speaker for monitoring—enabling

fully independent and exible audio testing.

XLR

1/4"

1/8"

OUTPUT

1 kHz

or

0

-5

-10

-20

-30

-40

-50

-60

-∞

+5

+10

FEATURES

Pink

noise

XLR cable

1 kHz

PINK

NOISE

PK

SG

PHANTOM

POWER

23

123

CABLE TEST

PHANTOM

POWER

23

123

CABLE TEST

XLR-M or 1/4" audio sendXLR-F or 1/4" input

AT-3FAT-3M

Headphones /

speaker for

monitoring

1. XLR-F input

2. XLR cable test LED

3. 1/8” output

4. Input volume check LED

5. Power on/o

6. Output signal generator type select:

1 kHz sine wave or pink noise. Hold 2

seconds for XLR cable testing

1. XLR-M output

2. XLR cable test LED

3. Phantom power pin voltage check

4. Power on/o and Output volume (pad)

select

5. Output to XLR or 1/4” and signal generator

type select: 1 kHz sine wave or pink noise.

Hold 2s for XLR cable tester

AT-3M - XLR AND 6.35 MM (1/4”) SIGNAL GENERATOR OUTPUT

AT-3F - SPEAKER AND 3.5 MM (1/8”) SIGNAL GENERATOR OUTPUT

Power on and select the signal and output types

Power on and select the signal and output types

1 kHz

PINK

NOISE

1 kHz

PINK

NOISE

1 kHz

PINK

NOISE

1 kHz

PINK

NOISE

Solid on

Solid on

Flashing

Flashing

Send a 1 kHz signal to the XLR output

Send a pink noise signal to the XLR output

Send a 1 kHz signal to the 1/4” output

Send a pink noise signal to the 1/4” output

1 kHz

PINK

NOISE

1 kHz

PINK

NOISE

Solid on

Solid on

Send a 1 kHz signal to the Speaker

and 3.5 mm (1/8”) output

Send a pink noise signal to the

Speaker and 3.5 mm (1/8”) output

Checks for phantom power

voltage, which is individually

metered on pins 2 and 3 of

the output XLR. If the voltage

detected is between 24V

and 44V, the LEDs will ash

slowly.

Activating phantom power

on the input channel you are

checking will allow you to

simultaneous test all three

pins in the XLR line.

PHANTOM POWER CHECK AND XLR PIN CHECK

PHANTOM POWER CHECK

Solid LED:line ok

Phantom power voltage: 44-52V

pin 1 defective

pin 2 defective

pin 3 defective

Flashing LED:line ok

Phantom power voltage: 24-44V

_

04

__

05

__

03

__

02

__

01

_

_

10

__

11

__

09

__

08

__

07

__

06

_

PHANTOM

POWER

23

23

23

23

23

23

In audio input mode, signals from the XLR or 1/4" (TS) input are

sent to the built-in speaker by default.

If a pair of headphones is connected to the 1/8" headphone

jack, the built-in speaker will be automatically muted, and the

signal will be routed to the headphones only.

The volume knob controls the output level for both the speaker

and the headphones.

How to enter audio input mode:

Power on the device (blue LED: 1 kHz tone).

Press the button once for red LED (Pink Noise).

Press again until both LEDs turn on or o together with a slow

“breathing” eect (about 0.5 s cycle). This indicates audio input

mode is active.

This function is available only on the AT-3F.

The AT-3M is a signal generator and does not include a built-in

speaker or headphone output.

SPEAKER/HEADPHONE OUTPUT

Turn o the power while charging. Charge your AT-3 using a standard USB-C cable and

any 5V/2A USB power supply. The device can be used while charging, but for best

performance and faster charging, it is recommended to turn it o. A full charge cycle

takes about 1.5 hours.

The LED by the USB-C port lights up while the battery is charging, and turns o when the

battery is fully charged.

Always power down your AT-3 after use. Depleting the battery may cause irreversible damage,

resulting in the device being unable to power on again.

The output signal type select LEDs will blink as a warning

when the battery level is low (0 - 10%).

Consider recharging your AT-3 when the rst ‘low battery’

warnings appear.

LOW BATTERY

CHARGING

ALERT

XLR CABLE TESTER

1. Both units must be powered on. Press and hold “1kHz /

Pink Noise” for 2 seconds. The 1 kHz/Pink Noise LEDs

will light simultaneously to enter XLR Cable Test Mode

2. The XLR female port transmits signal to the XLR male port

3. In Cable Test Mode, press “1 kHz/Pink Noise” to cycle

through the test modes. Five modes are available.

Default is Mode 1

1 kHz

PINK

NOISE

123

CABLE TEST

PHANTOM

POWER

23

123

CABLE TEST

02

01

12

03

05

06

11

10

04

7. USB type-C charging input

8. Charging LED

9. 1/4” input

10. Speaker/headphone output

volume knob

11. Speaker

12. MagSafe-style mount

6. USB type-C charging input

7. Charging LED

8. 1/4” output

9. MagSafe-style mount

03

01

04

05

06

09

02

08

07

1 KHz

PINK

NOISE

1 KHz

PINK

NOISE

Headphone or speaker

1 KHz

PINK

NOISE

Headphone or speaker

1 KHz

PINK

NOISE

07

08

09

XLR INPUT METERING

The PK (peak) and SG (signal) LEDs will illuminate according

to the RMS amplitude of the signal present on the input XLR.

The SG LED is lit when the signal exceeds -20 dBu RMS, and

the PK LED lights up when the signal exceeds +10 dBu.

‘SG’ lights up when signal is detected.

‘PK’ lights up when the signal is very loud. This feature is

very useful in noisy environments, or if you can’t get your

ears close enough to the speaker.

MODE

INDICATION

AT-3F: Pin 1–2–3 light in sequence.

AT-3M: Pin 1–2–3 light once in sequence, then enter

standby. LED stays on if signal is present.

AT-3F: Pin 1 LED solid.

AT-3M: Pin 1 lights for 1 sec, then enters standby.

LED solid if signal detected.

AT-3F: Pin 1 LED solid.

AT-3M: Pin 1 lights for 1 sec, then enters standby.

LED solid if signal detected.

AT-3F: Pin 1 LED solid.

AT-3M: Pin 1 lights for 1 sec, then enters standby.

LED solid if signal detected.

Mode 1XLR (AUTO)

Mode 2

Mode 3

Mode 4

XLR PIN 1

XLR PIN 2

XLR PIN 3

NAME

AT-3FAT-3M

European Patent No: 015106897-0001 / 015106897-0002

Uk Patent No: 6451447 / 6451448

Product specificaties
