WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO

USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO

RAIN OR MOISTURE.

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert

the user to the presence of uninsulated "dangerous voltage" within the product's enclosure

that may be of sucient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the product.

TYPICAL VALUES AND TOLERANCES

GENERATOR

1/4" UNBAL JACK

XLR BALANCED JACK

-40,-20,-10 dBu-40,-20,-10 dBu

-40,-20,-10 dBu-40,-20,-10 dBu

1 kHz Tone (±1 dB)

Pink Noise (±1 dB)

INPUT METER

1/4" UNBAL JACK

XLR BALANCED JACK

n/a-20 dBu

n/a+10 dBu

'SG' Threshold

'

PK' Threshold

IMPEDANCE

1/4" UNBAL JACK

XLR BALANCED JACK

600 Ω350 Ω

600 Ω / 3.5 kΩ3 kΩ

Output

Input

VOLTAGES

1/4" UNBAL JACK

XLR BALANCED JACK

n/a

solid: 44 - 52 V

ashing: 24 - 44 V

n/a3.3 V

Phantom Power

Cable Tester DC

料号：111081544 AT-2 说明书 展开尺寸：540*145mm 成品尺寸：90*145mm 材质：100G书纸 风琴折彩色印刷

FCC REGULATION WARNING

USE OF POWER ADAPTER

ONE-YEAR LIMITED WARRANTY

INFORMATION ABOUT COLLECTION AND

DISPOSAL OF OLD ITEMS AND USED BATTERIES

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

SAFETY INSTRUCTIONS FOR LITHIUM-ION

RECHARGEABLE BATTERIES

• If abused or misused, rechargeable batteries may leak. In extreme cases, they may present

a risk of explosion, re, heat, smoke, or gas. Xvive does not accept any liability for damage

arising from abuse or misuse.

• Only charge rechargeable batteries with chargers recommended by Xvive.

• Observe correct polarity.

• Do not continue to use damaged rechargeable batteries.

• Only use rechargeable batteries specied by Xvive.

• Dispose of rechargeable batteries at designated collection points or return them to your

specialist dealer.

• WARNING- Batteries or the product in which they are installed shall not be subject to:

- replacement of a battery with an incorrect type that can defeat a safeguard (for

example, in the case of some lithium battery types).

- disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a

battery, that can result in an explosion.

- leaving a battery in an extremely high-temperature surrounding environment that can

result in an explosion or the leakage of ammable liquid or gas.

• Keep out of reach of children.

• Do not expose the product to moisture.

• Switch rechargeable battery-powered products o after use.

• Only charge the units at ambient temperatures between 10°C (50°F) and 40°C (104°F).

• Do not mutilate or dismantle the product or its batteries.

• Do not heat above 60°C (140°F). Do not expose to direct sunlight or throw into a re.

• If your product appears defective, stop using it immediately and contact your authorized

dealer or Xvive support.

• Store the product in a cool and dry place at room temperature (approx. 20°C / 68°F).

Xvive Corporation Ltd. [Xvive] warrants our products to be free of defects in materials and

workmanship in normal use for a period of one (1) year from the date of original purchase.

Please visit to register your new purchase.https://www.xvive.com

Xvive will, at its sole discretion, or in cooperation with our authorized retailers, repair or

replace at no charge, any unit that is inspected by Xvive or an aliated Xvive service center

and deemed to be defective within the warranty period. This warranty is non-transferrable.

This warranty is only valid to the original purchaser, only when purchased “new-in-box” from

an Authorized Xvive Dealer and with a valid proof of purchase bearing the purchase date.

Within the USA:

• All Xvive warranty claims should be made with the retailer from which the unit was

purchased. This applies to both retail stores and online retailers.

Outside of the USA:

• For all warranty and non-warranty claims, the purchaser should contact the Authorized

Xvive Retailer from which the unit was purchased within the country or province in which

it was purchased for information on how to obtain warranty or non-warranty service.

This limited warranty does not cover the following:

• Products that have been modied in any way;

• Any products whose serial numbers have been altered or removed;

• Exterior cosmetic damage or damage to the nish due to misuse or normal wear and tear;

• Products that were purchased as “used”, items listed as demo stock or refurbished items;

• Damage to the product or parts caused by improper storage by the user;

• Any freight charges (from or to the retailer);

• Shipping Damage:

- Shipping damage claims must be led with the freight carrier (such as UPS, FedEx).

- Notify the freight carrier immediately of any shipping damage upon receipt of damaged

items to begin the claim process.

- We also recommend reporting any shipping damage claim within 48 hoursof receipt to

the Authorized Retailer from which the item was purchased.

- Keep all original documents and packing materials until the freight damage claim has a

nal resolution.

For units returned to Xvive USA:

• The item must be returned in the same format in which it was purchased. If a system containing

a transmitter and receiver was purchased, then both units will need to be returned together.

• The purchaser will pay all freight charges to return the original item to Xvive USA or its

aliated service centers.

Cd

These symbols on the products, packaging, or on any documents in the

package mean it is incorrect to mix the used electrical and electronic

products and batteries with general household garbage.

To protect our environment, please take old products and used batteries to

proper collection places, and follow your national legislation and the

Directives 2012/19/EU and 2006/66/EC.

To deal with these old products and batteries properly, please help to save

valuable resources and prevent any possibility of side eects on human

health and our environment due to the inappropriate disposal of the old

products and used batteries.

You can contact your local authority for getting more helpful information

on how to dispose the recycling and collection of the old products and

batteries.

[For business users in the European Union]

If you want to discard electrical and electronic item, please contact your

dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. Please contact your

local authorities or dealer for more information on disposal of old items and

used batteries.

CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN.

• Please use a power adapter with the local country certication label.

• Please check the supported voltage and current of the power input and output.

• Please read the warning indications on the power adapter carefully before use.

• When pulling out the power plug from the socket, please hold the plug part of the power cord.

• Please disconnect the power adapter plug from the socket when not

using the device for a long time or when there is a lightning strike.

• If the unit is deemed to be covered by this warranty, Xvive will ship the repaired or

replacement

unit to the purchaser free-of-charge and without any additional freight

charges.

• If the unit is deemed to NOT be covered by this warranty, other charges plus return freight

charges will apply.

EXCEPT AS EXPRESSLY SET FORTH ABOVE IN THIS LIMITED WARRANTY, XVIVE MAKES NO OTHER

EXPRESS OR IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY LAW. XVIVE ASSUMES NO

LIABILITY FOR PROPERTY DAMAGE RESULTING FROM FAILURE OF THIS PRODUCT NOR ANY LOSS

OF INCOME, SATISFACTION, OR DAMAGES ARISING FROM THE LOSS OF USE OF SAME DUE TO

DEFECTS OR AVAILABILITY OF SAME DURING SERVICE.THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR BY

COUNTRY OR PROVINCE.

For warranty inquiries not covered in this policy,

please contact [email protected]

Declaration of Conformity:

This product complies with the requirements of EMC Directive

2004/108/EG and Low Voltage Directive 2006/95/EC

_

11

__

10

__

09

__

08

__

07

__

06

_

CARE OF DEVICE

1. Do not drop, hit, or apply excessive force to the device.

2. Handle with care and avoid any objects or liquids entering the device.

3. Do not place the device in a place with excessively high or low temperature.

4. Do not place the device near heat sources, such as heaters or ovens.

5. Do not place the device in a place with excessively high humidity or with splashing water.

6. Do not place the device in a place with frequent shaking.

7. Do not place the device in a place with excessive sand or dust.

CLEANING OF DEVICE

1. Use a soft dry cloth to wipe o dirt on the exterior of the device.

2. You can slightly dampen a cloth to remove stubborn dirt.

3. When the rubber or silicone parts of the device are stained, use a lint-free cloth slightly

dampened to clean.

4. Do not use abrasive cleaners, wax, alcohol, benzene or paint thinner as a solvent to wipe

the device.

OPERATION OF DEVICE

1. Before connecting any device, please make sure to turn o all device power.

2. Before moving the device, please disconnect all connection cables.

3. Long-term continuous use of the device may cause it to slightly heat up. Touching it

without a burning sensation is normal.

4. Do not hold the device with power on for a long time. Avoid holding it continuously for

a long time during use when it is heating up.

5. Do not use the device for a long time at high volume.

折线折线折线折线折线

Charge your AT-2 using a standard USB-C cable and any 5V/2A USB power supply. A full

charge cycle takes about 1.5 hours. Although the device can operate while charging, it’s

not recommended. For optimal performance and faster charging, do not use the unit

while charging.

The LED by the USB-C port lights up while the battery is charging, and turns o when the

battery is fully charged.

Always power down your AT-2 after use. Depleting the battery may cause irreversible damage,

resulting in the device being unable to power on again.

CHARGING

ALERT

www.xvive.com

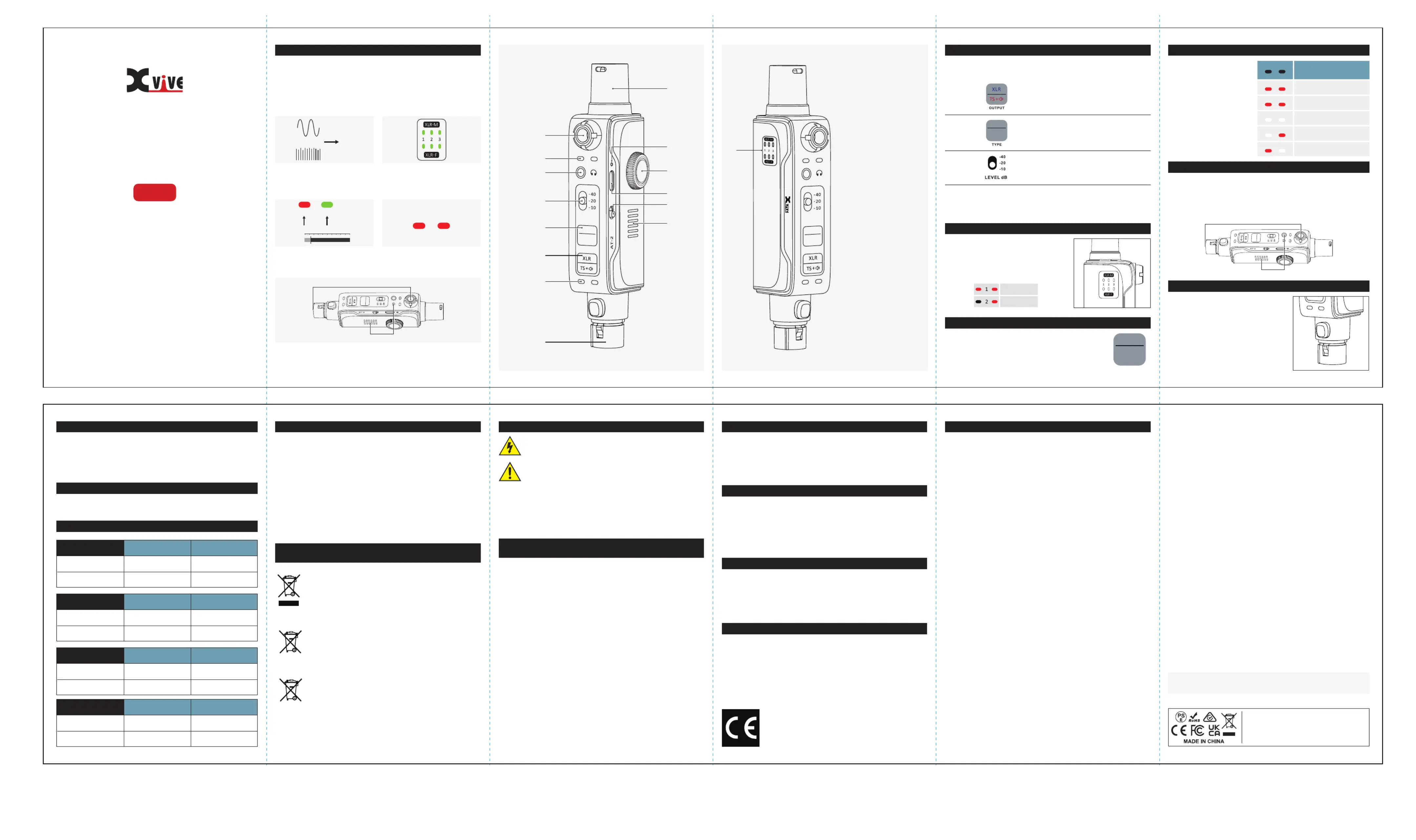

English Manual

AT-2

1. Signal Generator:

Outputs a 1 kHz sine wave or pink noise

audio signal through XLR male, 1/4", and

1/8" connectors, with three output level

options: -10 dB, -20 dB, and -40 dB.

2. XLR Cable Tester:

Tests whether all three pins of the XLR

cable are functioning properly.

4. Phantom Power Check:

Tests the output voltage of the phantom

power and ensures both pins are functioning

properly.

3. XLR Input Metering:

Measures the input volume level of the

XLR female connector.

5. Headphone and Speaker Monitoring:

When an audio source is connected to the XLR female or 1/4" input, you can monitor the

signal with headphones or speakers via the 1/8" headphone jack.

SPECIFICATIONS

_

01

__

02

__

03

_

1kHz

PINK

NOISE

PHANTOMPOWER

23

PKSG

ONOFF

Headphone or speaker output

1/4“ or XLR-F input

1kHz

PINK

NOISE

PHANTOMPOWER

23

PKSG

ONOFF

Headphone or speaker output

1/4“ or XLR-F input

This versatile and compact utility tool includes detection features and oers ve main

functions: a that can emit 1 kHz tones or pink noise audio signals, an Signal GeneratorXLR

Cable TesterXLR Input Meteringfor detecting whether XLR cables are damaged, to

measure the strength of XLR input signals, a to test voltage and Phantom Power Check

ensure normal operation, and to listen to input Headphone and Speaker Monitoring

signals. It is suitable for testing powered PA speakers, eect pedals, cables, DI boxes, IEM

systems, mixers, and other audio equipment, making it an essential tool for audio

professionals.

XLR

1/4"

1/8"

OUTPUT

1 kHz

or

Pink

noise

01

14

1. XLR-M output

2. XLR-F input

3. 1/4” output/input

4. 1/8” output

5. Speaker/headphone output

volume knob

6. Speaker

7. USB type-C charging input

8. Charging LED

9. Phantom power pin voltage check

10. Output select: XLR / 6.35 mm

(1/4”), 3.5 mm (1/8”) and speaker

11. Output signal generator Type

select (1 kHz sine wave or pink

noise). Hold 2 seconds for XLR

cable tester. Blinks when battery

level is below 10%

12. Output volume pad select

13. Input volume check LED

14. XLR cable test LEDs

15. Power on/o

You can use sine waves and pink noise to test the audio inputs of all kinds of audio gear—

including DI boxes, guitar pedals, wireless systems, eect units, active speakers, mixers, etc.

SIGNAL GENERATOR 1 SINE WAVE AND PINK NOISEkHz

_

04

_

Checks for phantom power voltage,

which is individually metered on

pins 2 and 3 of the output XLR. If the

voltage detected is between 24V

and 44V, the LEDs will ash slowly.

Activating phantom power on the

input channel you are checking will

allow you to simultaneous test all

three pins in the XLR line.

PHANTOM POWER CHECK AND XLR PIN CHECK

OUTPUT LEVEL

-10 dB, -20 dB, -40 dB

OUTPUT

XLR: signal output via XLR

TS+Speaker: signal output via speaker,

6.35 mm (1/4”) TS or 3.5 mm (1/8”) TS

TYPE

Select 1 kHz sine wave or Pink Noise

1. Select OUTPUT mode

2. Select 1 kHz sine wave or Pink Noise

3. Adjust the OUTPUT volume level

QUICK

START

The audio inputs are 1/4" TS and female XLR, and the output can be directed to either

1/8" headphones or a speaker, as selected on the TS+SPEAKER button. The volume knob

controls the volume for both the headphones (1/8") and the speaker.

For more accurate signal monitoring, plug in your headphones. Regardless of the

selected output mode, any audio signal input via 1/4" will be sent directly to both the

speaker and headphone output.

SPEAKER/HEADPHONE OUTPUT

_

05

_

The 1 kHz/Pink Noise button will blink when the battery level is below

10%. Consider recharging your AT-2 when this ‘low battery’ warning

appears.

LOW BATTERY

XLR CABLE TESTER

Connect an XLR cable to the input and output to test

its 3 pins.

Hold TYPE for 2s to enter XLR cable test mode. The

LED will automatically cycle through the pins.

Press TYPE to stop the cycle and manually select a pin.

Press OUTPUT to resume the automatic cycle.

XLR INPUT METERING

The PK (peak) and SG (signal) LEDs will illuminate

according to the RMS amplitude of the signal

present on the input XLR. The SG LED is lit when the

signal exceeds -20 dBu RMS, and the PK LED lights

up when the signal exceeds +10 dBu.

‘SG’ lights up when signal is detected.

‘PK’ lights up when the signal is very loud. This

feature is very useful in noisy environments, or if you

can’t get your ears close enough to the speaker.

1kHz

PINK

NOISE

1kHz

PINK

NOISE

1kHz

PINK

NOISE

PHANTOMPOWER

23

PKSG

1kHz

PINK

NOISE

PHANTOMPOWER

23

PKSG

ONOFF

R

PKSG

Line ok

Pin2 defective

POWERPHANTOM

23

0

-5-10

-20

-30-40-50-60-∞

+5

+10

PK

SG

PHANTOM POWER CHECK

Solid LED:Line ok

Phantom power voltage: 44-52V

pin 1 defective

pin 2 defective

pin 3 defective

Flashing LED:Line ok

Phantom power voltage: 24-44V

POWERPHANTOM

23

POWERPHANTOM

23

POWERPHANTOM

23

POWERPHANTOM

23

POWERPHANTOM

23

23

POWERPHANTOM

AUDIO TESTER

Pro

03

09

11

10

13

02

04

12

05

06

08

07

15

2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town,

Baoan District, Shenzhen Guangdong China. 518101

E-mail: support@xviveaudio.com

Tel: +86-755-2786 6639

SHENZHEN FZONE TECHNOLOGY CO., LTD.

EUROPEAN PATENT NO: 015105584-0001

UK PATENT NO: 6448741

Product specificaties
