transcendent
waveform
analog
oscillator
Model of 1955
operator’s manual rev. 1955/1.1
SOFIA
SALUT
Thank you for purchasing this Xaoc De-
is a fully an-
alog voltage-controlled oscillator (VCO)
based on an original waveforming prin-
ciple. It features a modern, well-calibrat-
ed, temperature compensated triangle
core and two elaborate waveshaping
and modulating sections. The sound is a
mixture of a warm, saturated base tone
and two ripple components. Besides its
-
vidual components of the sound plus a
multitude of modulation inputs allowing
for extensive self-patching and anima-
tion of the waveform. To better under-
stand the device, we strongly advise the
user to read through the entire manual
before using the module.
INSTALLATION
The module requires 24hp worth of free
space in the Eurorack cabinet. Always
turn the power off before plugging the
module into the bus board using the sup-
plied ribbon cable. Pay close attention to
power cable pinout and orientation. The
red stripe indicates the negative rail and
should match the dot or –12V mark on
is internally secured against reversed
power connection; however, rotating
the whole 16-pin header may cause se-
rious damage to other components of
your system, because it will short circuit
the +12V and +5V power lines. Always
pay close attention to the proper orien-
tation of your ribbon cable on both sides!
The unit should be fastened by mounting
the supplied screws before powering up.
OPERATING PRINCIPLE
computer music method for synthesis
of formant sounds called FOF (fonction
d'onde formantique), which uses a com-
bination of simple, time-domain com-
ponents (decaying sinusoidal waves) to
achieve desired spectral characteristics
(see infobox, page 7).
added on top of a slightly saturated sinu-
soidal base tone. Each new cycle of the
2
module
explained

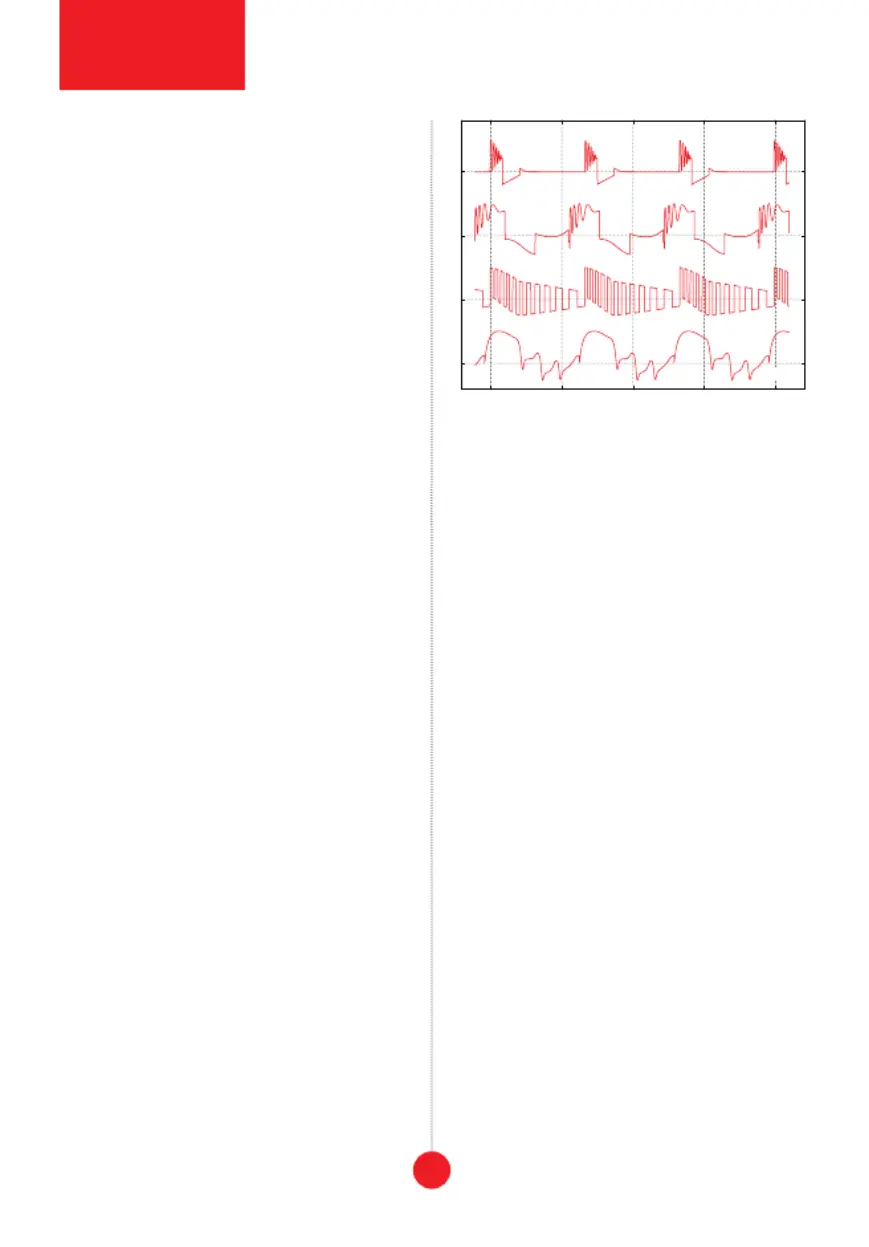

0 0.005 0.01 0.015 0.02
Time (s)
example waveforms
3
front panel
overview
base tone spawns a new pair of ripple
elements. The ripples’ density and decay
rate may be adjusted over a wide range.
Additionally, the elements may be warped
so that their density accelerates or decel-
erates within the cycle. Finally, their basic
waveform may be switched from sine-like
to square-like for additional richness.
Despite the seemingly divergent fre-
quencies present in the signal, it re-
mains strictly harmonic due to how all
elements are waveshaped from the core
tone and therefore phase coherent. Thus,
Buchla sense; however, it goes beyond
the traditional set of primary waves and
wavetables, hence the name.

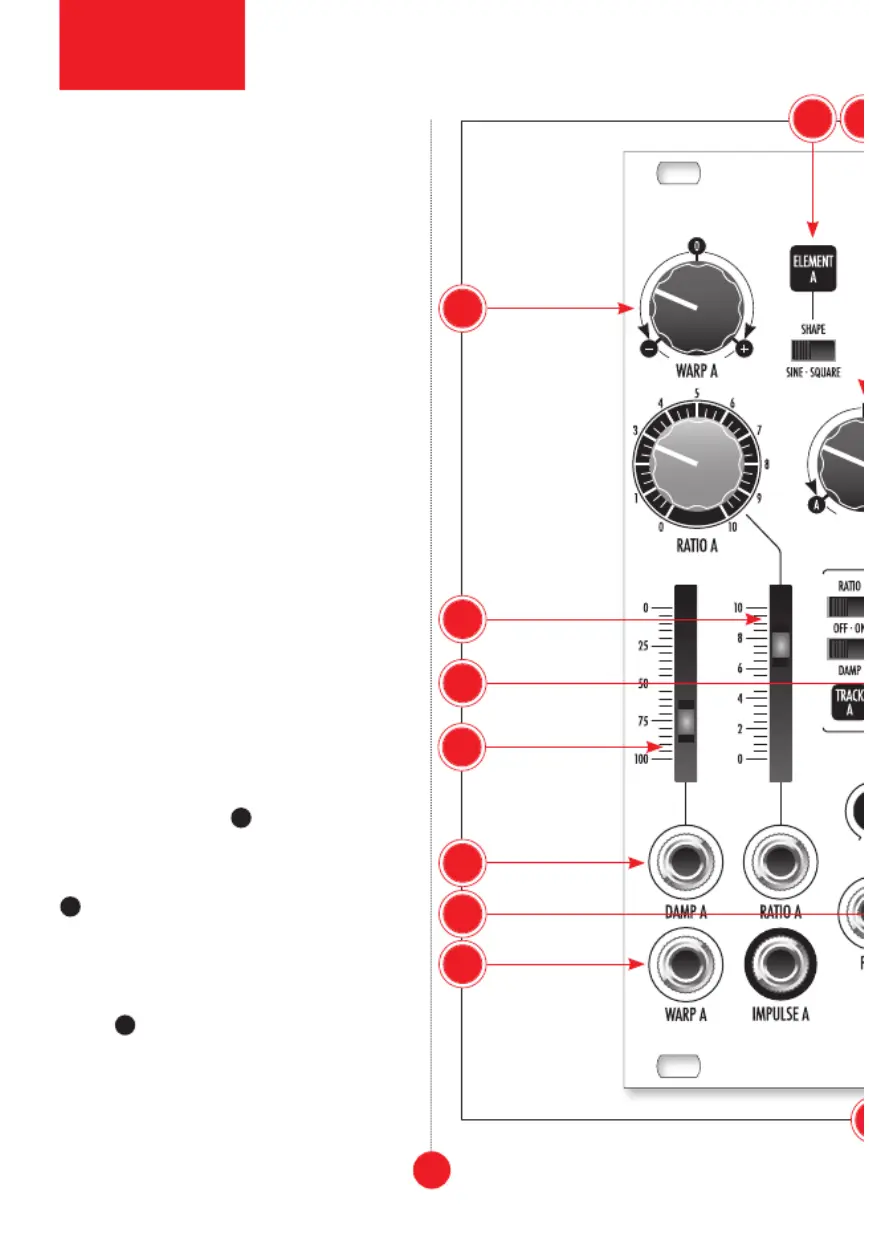

MODULE OVERVIEW
direct access to all parameters in a one-
knob-per-function arrangement. The big,
central pitch knob
1
offers continuous
pitch control in the range of two octaves,
while the rotary octave switch above it
2
offers eight additional octaves with
the lowest lo position referring to sub-
sonic frequencies. The pitch frequency is
also controlled via the pitch cv v/oct
input
3
, which accepts voltages from
–10V to +10V. However, the usable range
of voltages depends on the position of the
manual controls. The entire frequency
13
12
1
3
15
619
14
16
