Pagina 1/6
Page of 1 6
©Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
Description
The Wesco 4-Way Pallet Truck is designed for entering
pallets from all four sides. It features reinforced forks,
adjustable fork connecting rods and a rubber coated handle.
Wesco Industrial Products, LLC
1250 Welsh Road
North Wales, PA 19454
Tel: 215-699-7031 Fax: 215-699-3836
Contact the factory for parts information and ordering.
Visit us on the web at www.wescomfg.com
Unpacking
When unpacking the Wesco Product, check carefully for
shipping damage and missing parts. If damage has occurred
or any parts are missing, file a claim with the delivering carrier
within 24 hours and notify the dealer from whom the unit was
purchased.
Warranty Repairs
If the unit does not work properly, contact your dealer or the
factory (215-699-7031) for units less than 90 days old.
Non-Warranty Service
If units are older than 90 days, repairs can be made easily on
site with factory supplied parts.
NOTE: Do not send units to the factory for service without
first obtaining a “Return Merchandise Authorization” (RMA)
number from the customer service department. We will not
be responsible for merchandise returned without proper
authorization.
Figure 1
4-Way Pallet Truck
(Part # 273400)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS BEFORE USING.
Operation
Control Handle
The control handle of the truck and can be adjusted to three
different positions:
Raise -handle down
Drive -handle in center position
Lower -handle up, the lever moves back to the drive position
when released.
Entering Pallet
As shown below, the 4-way pallet truck can enter from any
side of a pallet and then proceed to transport the load.
Figure 2
Page of 2 6
©Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
4-Way Pallet Truck
(Part # 273400)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS BEFORE USING.
1. HANDLE PART INFORMATION

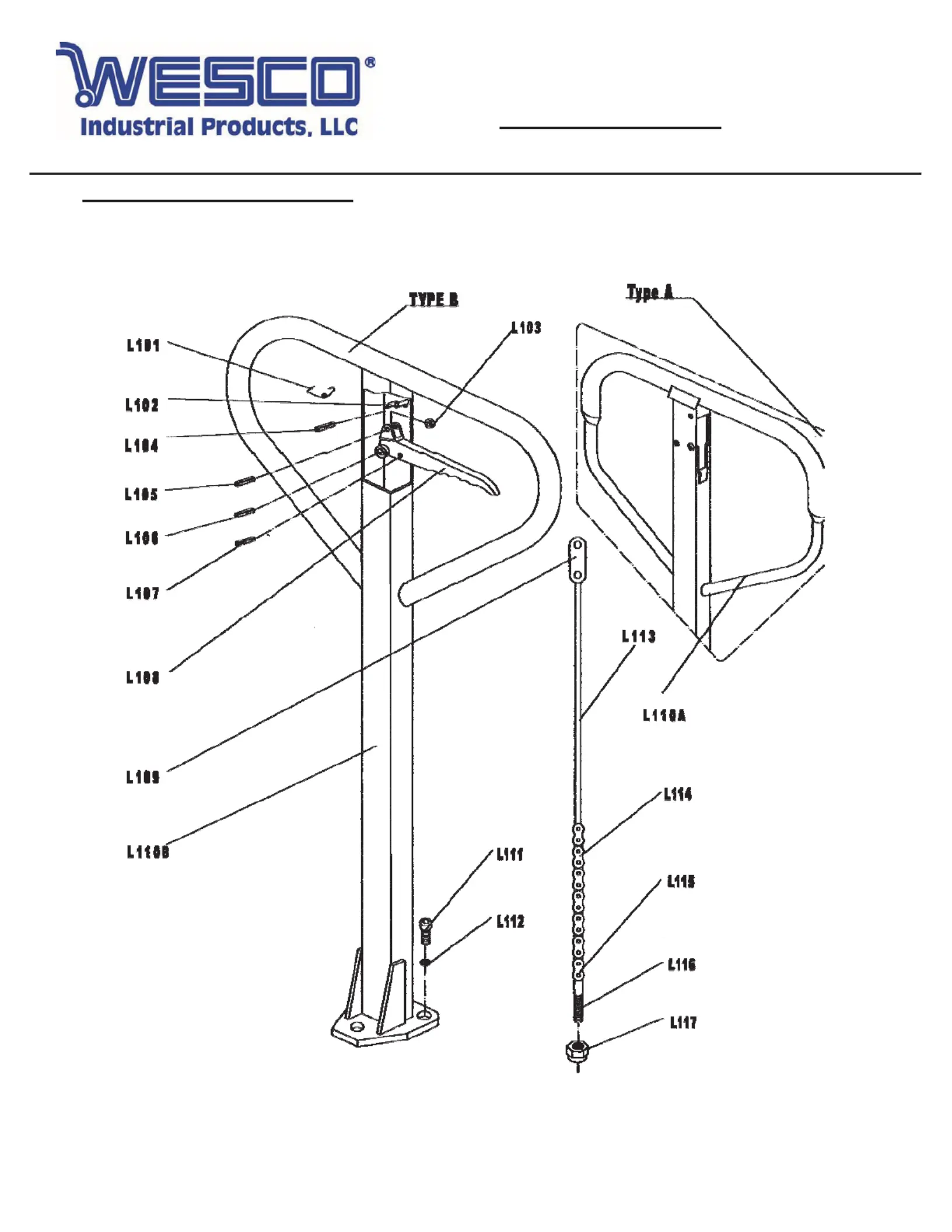

1.1 HANDLE PARTS DIAGRAM
Page of 3 6
©Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
4-Way Pallet Truck
(Part # 273400)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS BEFORE USING.
1. HANDLE PART INFORMATION
1.2 HANDLE PARTS LIST
Item
Part
Number
Description Qty. Item
Part
Number
Description Qty.
L101 274076 Spring 1 L110A 274075 Handle 1
L102 274083 Blade Spring 1 L110B Handle 1
L103 274001 Roller 1 L111 Bolt 3
L104 272453 Elastic Pin 1 L112 Elastic Washer 3
L105 272042 Elastic Pin 1 L113 Pull Rod 1
L106 272043 Elastic Pin 1 L114 Chain 1
L107 272322 Elastic Pin 1 L115 Pin 1
L108 Control Handle 1 L116 272456 Adjusting Bolt 1
L109 274084 Pull Board 1 L117 272337 Adjusting Nut 1
REPLACEMENT KIT LIST
274495 Handle Assembly (Includes Items L101-L110A & L113-L117) 1
274079 Bolt/Elastic Washer Kit (Includes Items L111-L112) 1
272454 Chain/Pin Kit (Includes Items L114-L115) 1
272791 Control Handle Kit (Includes Items L103, L105, L108, L109, L113 & L114) 1
274087 Release Assembly Kit (Includes Items L115-L117) 1
