ATTENTION: TO ENSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFTER, READ THESE INSTRUCTIONS BEFORE USING.
Value Lift
(Part # 272940 & 272941)
Instruction Manual
InstructionManual
ValueLift Stacker
PartNumber: 272940 & 272941
Note: Operator MUST read and understand these operating instructions before using this Lift.
Table of Contents
1 General Information ......................................................................................................... 2
1.1 Description.............................................................................................................. 2
1.2 Specifications.......................................................................................................... 2
2 Section Identification.......................................................................................................... 2
3 Operation........................................................................................................................... 3
4 Maintenance...................................................................................................................... 3
5 Assembly........................................................................................................................... 3
6 Safety Information.............................................................................................................. 5
7 Models Manufactured Before 6/2013 Part Information...................................................... 6
7.1 Part Diagram............................................................................................................ 6
7.2 Part List.................................................................................................................... 7
8 Models Manufactured After 6/2013 Part Information......................................................... 9
8.1 Part Diagram............................................................................................................ 9
8.2 Part List.................................................................................................................... 10
Page 2of11
©Copyright 2020 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
ATTENTION: TO ENSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFTER, READ THESE INSTRUCTIONS BEFORE USING.
Value Lift
(Part # 272940 & 272941)
Instruction Manual
1. GENERAL INFORMATION
NOTE: All of the information reported herein is based on data available at the moment of printing. We reserve the
right to modify our own products at any moment without notice and liability in any sanctions. So, it is suggested to
always verify possible updates and changes.
1.1 DESCRIPTION

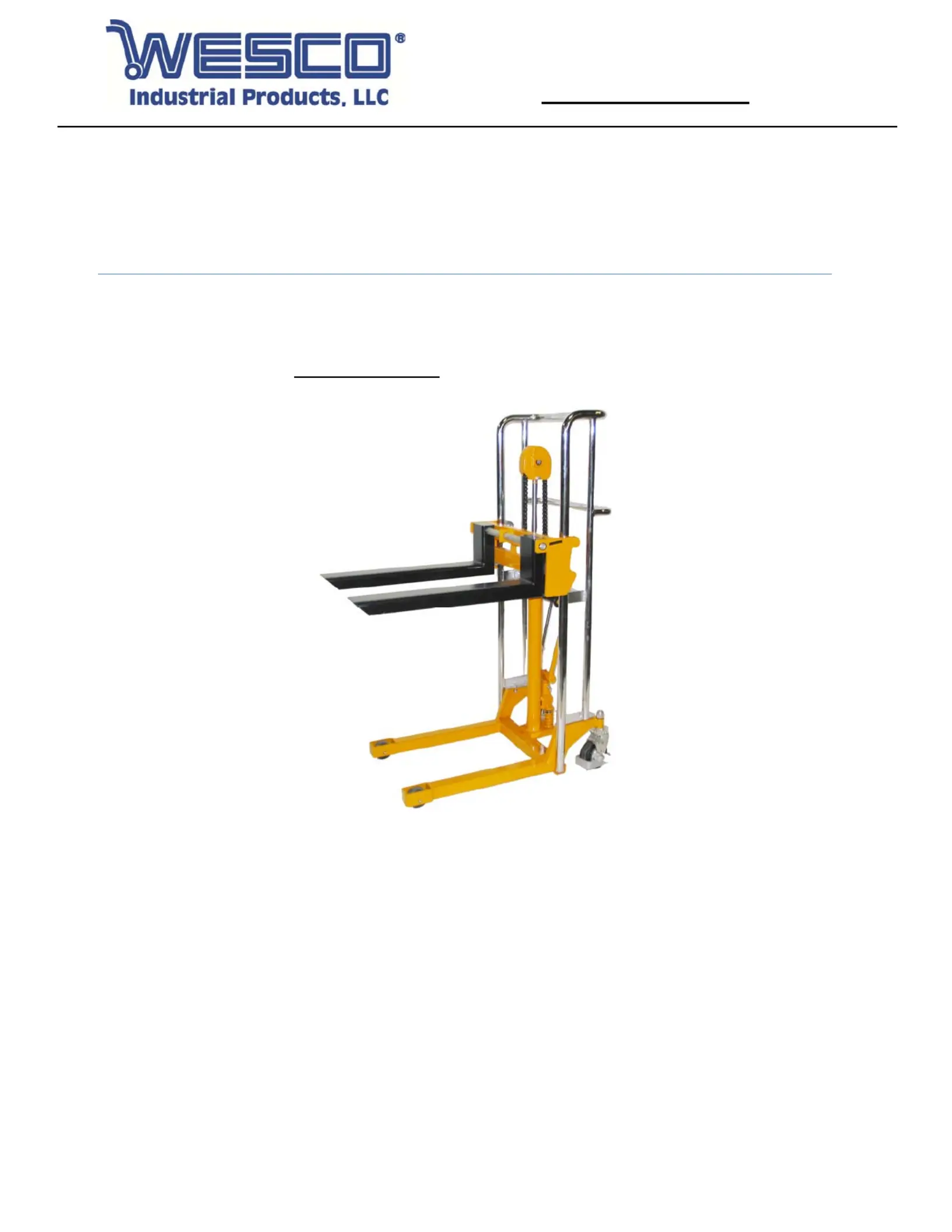

Thank you for purchasing a Wesco Value Lift. This unit features a foot operated hydraulic pump,
chrome plated rails and handle, adjustable forks and two 5” polyurethane swivel casters with brakes.
1.2 SPECIFICATIONS
Part Number
272940 272941
Model #
VL47 VL59
Capacity
880 lbs 880 lbs
Platform or Fork W x L
Fork 4.25” x 25.5” Fork 4.25” x 25.5”
Lift Height
3.5 ”- 47” 3.5” – 59”
Lowered Height
3.5” 3.5”
Adjustable Fork Width
8.5” – 19.5” 8.5” – 19.5”
Swivel Casters
5” Locking Polyurethane 5” Locking Polyurethane
Load Wheels
3” Rigid Polyurethane 3” Rigid Polyurethane
Load Center
12.75” 12.75”
Weight
178 lbs 187 lbs

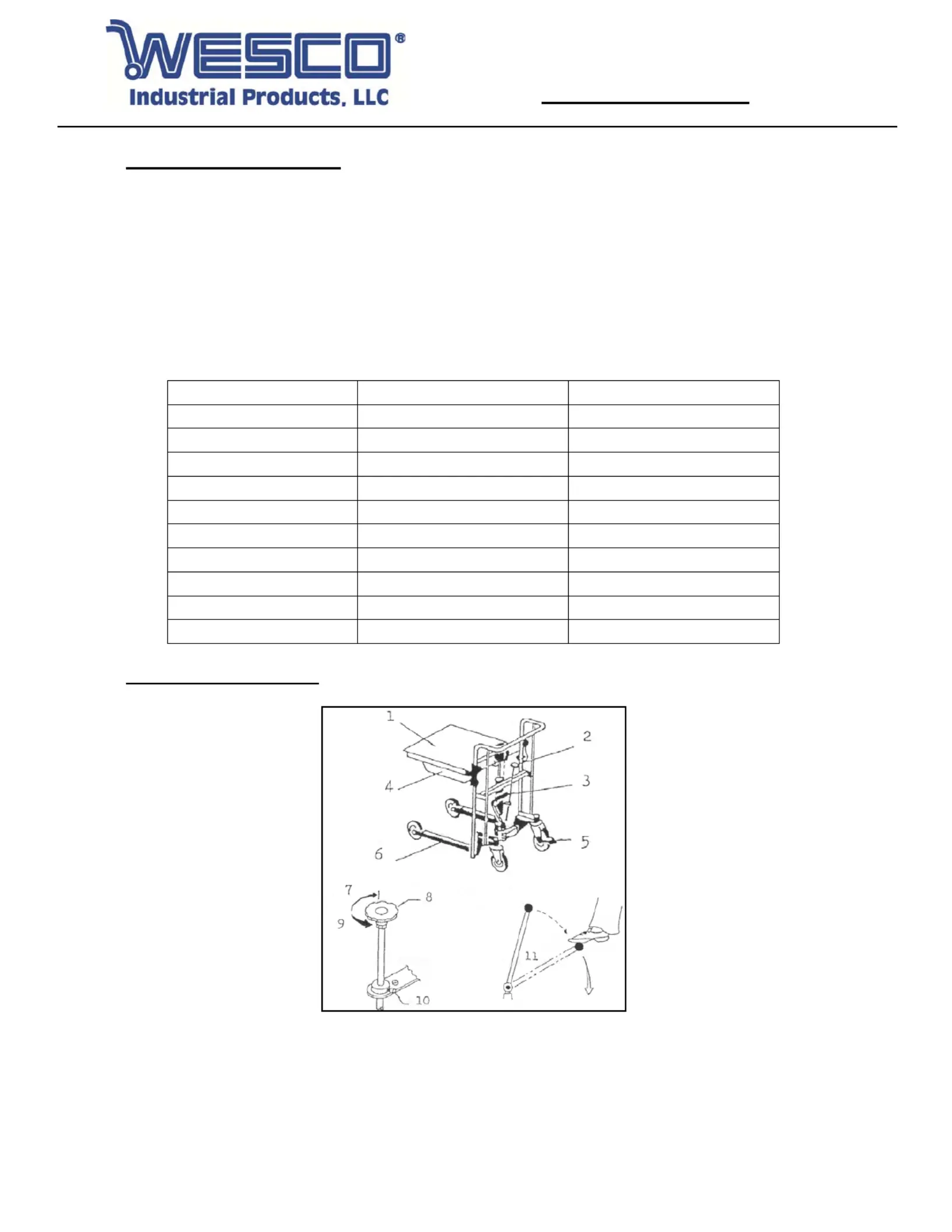

2. SECTION IDENTIFICATION
Figure 1
1. Platform/Forks 2. Lowering Valve 3. Foot Pedal (Pumping Pedal)
4. Drawer (Low Profile without Drawer) 5. Brake 6. Chassis
7. Lift 8. Lowering Valve 9. Lower
10. Stopper 11. Foot Pedal (Pumping Pedal)
Page 3of11
©Copyright 2020 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
ATTENTION: TO ENSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFTER, READ THESE INSTRUCTIONS BEFORE USING.
Value Lift
(Part # 272940 & 272941)
Instruction Manual
3. OPERATION
1) Raising the platform/forks
Tighten the lowering valve (by turning it clockwise), put down the foot pedal and pump. The
platform/forks will proceed to lift.
2) Lowering the platform/forks
Loosen the lowering valve (by turning it counter-clockwise), and then the platform/forks will lower.
3) Adjusting the lowering speed
To avoid abrupt lowering of the
platform/forks when loading goods, the truck is provided with a stopper.
When the lowering speed is too quick or too slow, adjust the position of this stopper.
4. MAINTENANCE
1) Daily Care
- If the load chain is corroded, it becomes weak and unreliable, so always lubricate it by applying
grease.
- Unless oil leaks from the pump. It is not necessary to supply oil for about half a year to one year.
- Usually, when changing oil or replenishing oil, use L-HL68 Hydraulic oil (equivalent to ISO VG68). If
temperature is between -5°F - 23°F, Please use L-HL46 Hydraulic oil (equivalent to ISO VG68).
2) Periodic Inspection
- Inspect the chain fixing nut for any looseness and proceed to tighten.
- Check to make sure the rotating parts are well lubricated.
- Inspect the wheels for possible wear.
- Inspect the screw in each part for looseness and tighten where necessary.

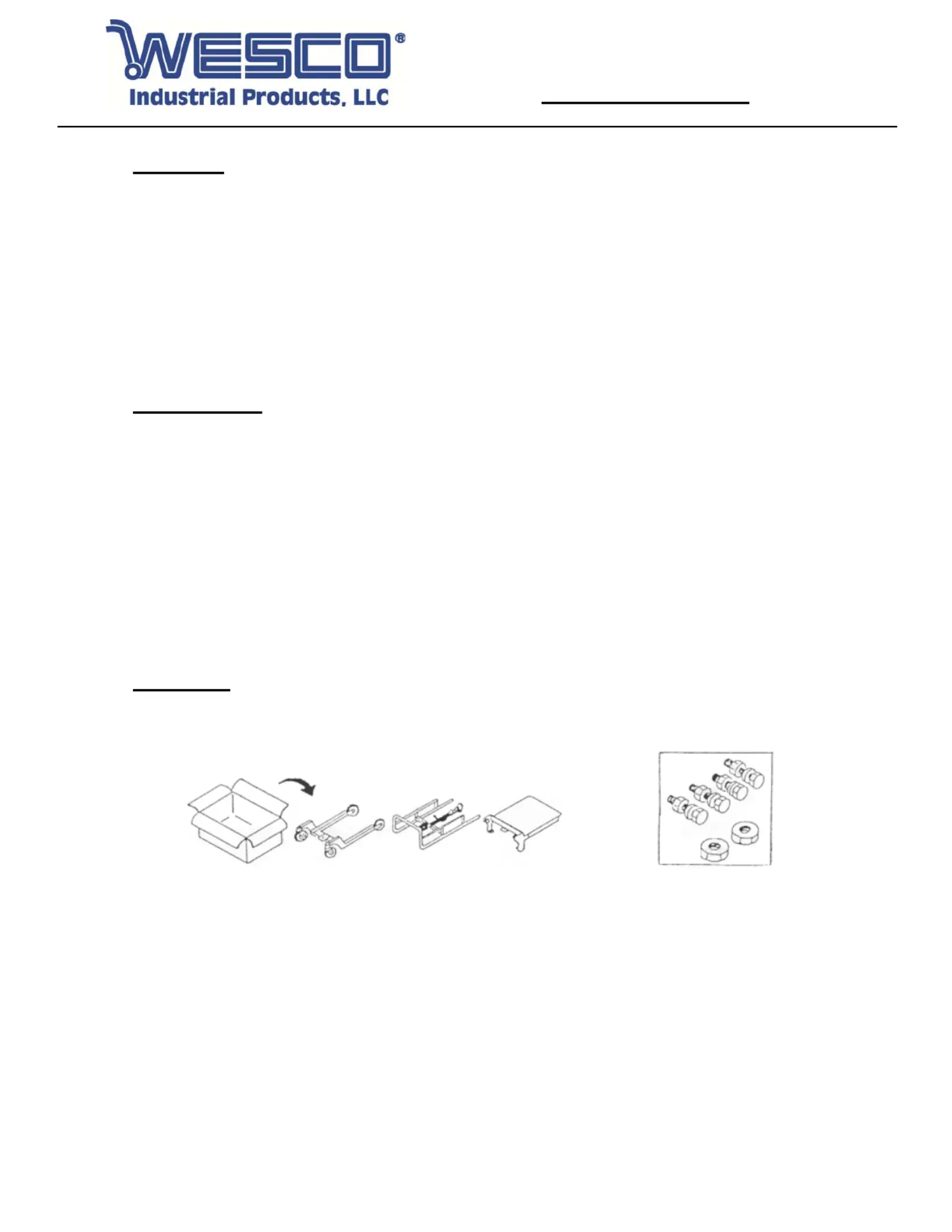

5. ASSEMBLY
1) Take the assemblies from the cardboard box and disassemble them in the order of (a), (b), (c), and (d)
as follows:
(a) (b) (c) (d)
Cardboard Box Chassis Handle Platform/Forks Bolts & Nuts
Figure 2
Then lay the handle on the floor as shown in Figure 2.
