Turn o water

supply.

REQUIRED TOOLS:PARTS INCLUDED:

1. Phillips Screwdriver

USM1375

Undersink Mounting Hardware

(1-1/4”)

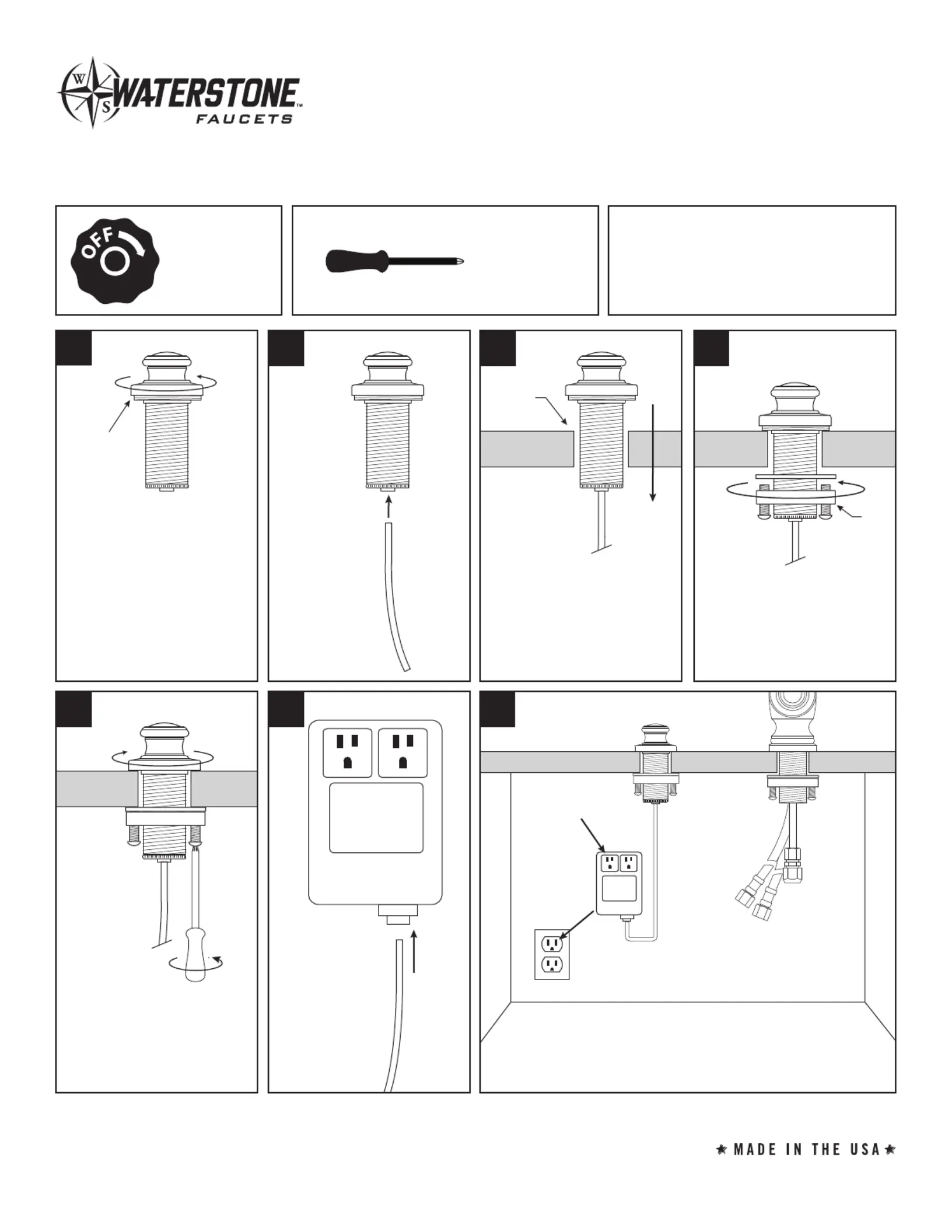

AIR SWITCH INSTALLATION

Contemporary Model # 3010

Traditional Model # 4010

Industrial Model # 9010

F

G

GARBAGE DISPOSAL

B

C

COUNTER

OR SINK

1-1/2”

HOLE

E

A

EXPOSE

THREADS

D

1.

2.

3.4.

5.

6.7.

Slide washer up then thread the

clamp nut onto threaded shroud.

Hand tighten nut to underside of

sink or counter until snug.

Tighten clamp screws (C)

securely with screwdriver. Hand

tighten switch base back down

to cover threads.

Slide clear tubing

(B) into tube

tting (C) at

bottom of air

switch shroud.

Slide other end of

clear tubing (F)

into tube tting at

bottom of control

box (G).

Plug control box into undersink electrical outlet. Garbage

disposal can be plugged into either dual outlet.

Fit air switch and

tubing through

1-1/2” hole on

counter or sink.

Before inserting air switch into

hole, loosen switch base (A) until

threads are exposed.

BEFORE YOU BEGIN YOUR INSTALLATION:

41180 Raintree Court • Murrieta, CA 92562

1-888-304-0660 • 951-304-0520

www.waterstoneco.com

VEN-038-AIRSW Rev. D

(No plumbers putty is required.

O-ring seals base).
