Turn o water

supply.

REQUIRED TOOLS:PARTS INCLUDED:

1. Phillips Screwdriver

USM1375

Undersink Mounting Hardware

(1-1/4”)

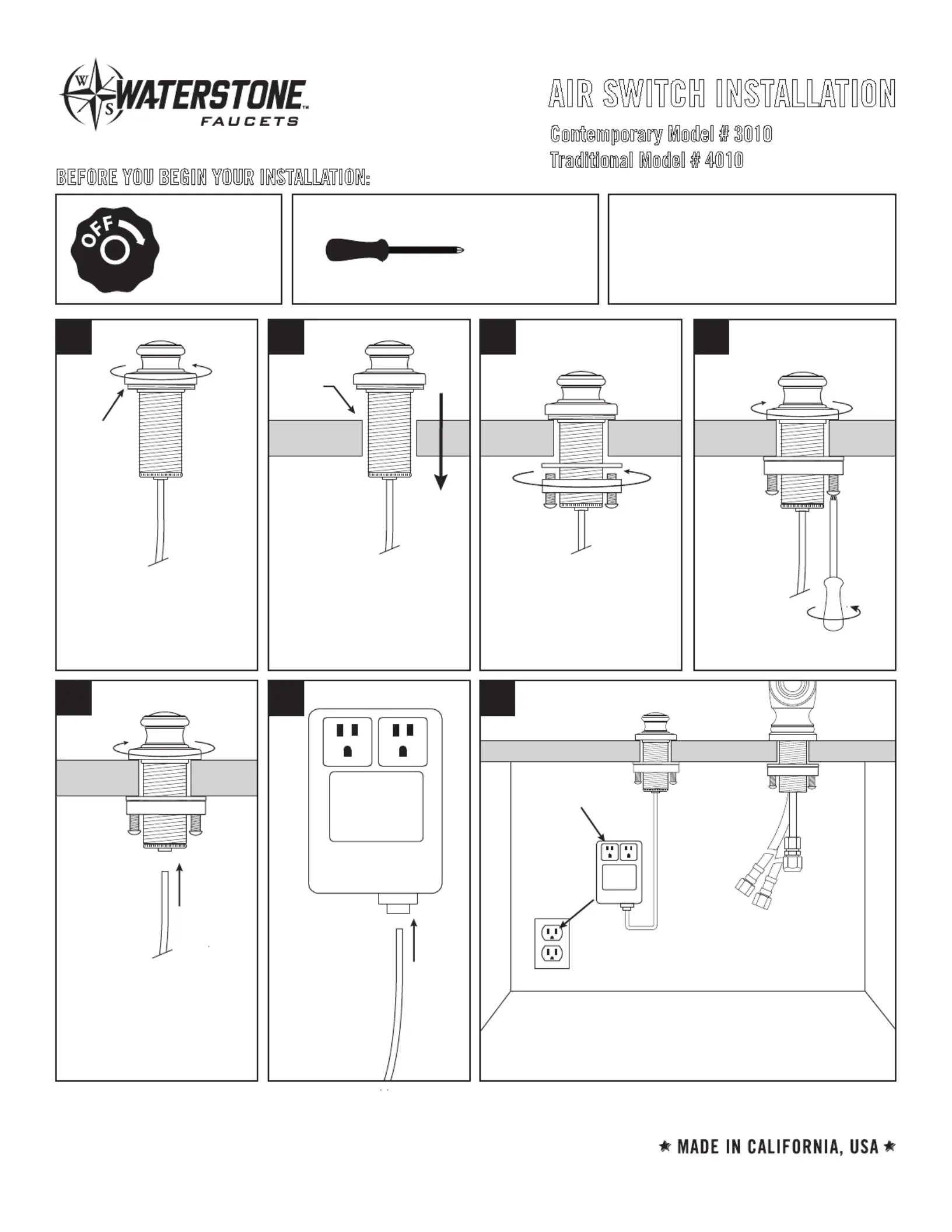

AIR SWITCH INSTALLATION

Contemporary Model # 3010

Traditional Model # 4010

F

G

GARBAGE DISPOSAL

D

E

A

EXPOSE

THREADS

B

COUNTER

OR SINK

1-1/2”

HOLE

C

1.

2.

3.4.

5.

6.7.

Slide washer and thread the

clamp nut onto threaded shroud.

Tighten nut snug to underside of

sink or counter.

First, securely

tighten clamp

screws (C). Next

hand tighten

the switch base

until snug.

Slide clear tubing (D) into

tube tting (E) at bottom of

air switch.

Slide other end of

clear tubing (F)

into tube tting at

bottom of control

box (G).

Plug control box into undersink electrical outlet. Garbage

disposal can be plugged into either dual outlet.

Fit air switch (B) through

1-1/2” hole on counter or sink.

(No plumbers putty is required.

O-ring seals base).

Before inserting air switch into

hole, loosen the switch base (A)

until threads are exposed.

BEFORE YOU BEGIN YOUR INSTALLATION:

41180 Raintree Court • Murrieta, CA 92562

1-888-304-0660 • 951-304-0520

www.waterstoneco.com

VEN-038-AIRSW Rev. B
