1WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2016

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

INSTALLATION INSTRUCTION

Volta 4.5” LED - Downlight Round Trim

R4RD1T, R4RD2T, R4RD1L, R4RD2L

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

• Place the wall switch in the “OFF” position.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

• Lisez toutes les instructions avant d’installer.

• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).

• Placez l’interrupteur mural en position d’arrêt (« OFF »).

CAUTION

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts, or use any parts that are worn out or broken.

Failure to follow could invalidate the ETL/cETL listing of this xture.

TRIM MODEL

The trim R4RD1T and R4RD2T can be used with remodel and new construction round housings. The invisible trim R4RD1L and R4RD2L to be

used with new construction round housing. Refer to specication sheets for compatible housing and trim details. Follow appropriate housing

instructions to begin installation.

TRIM INSTALLATION (R4RD1T, R4RD2T)

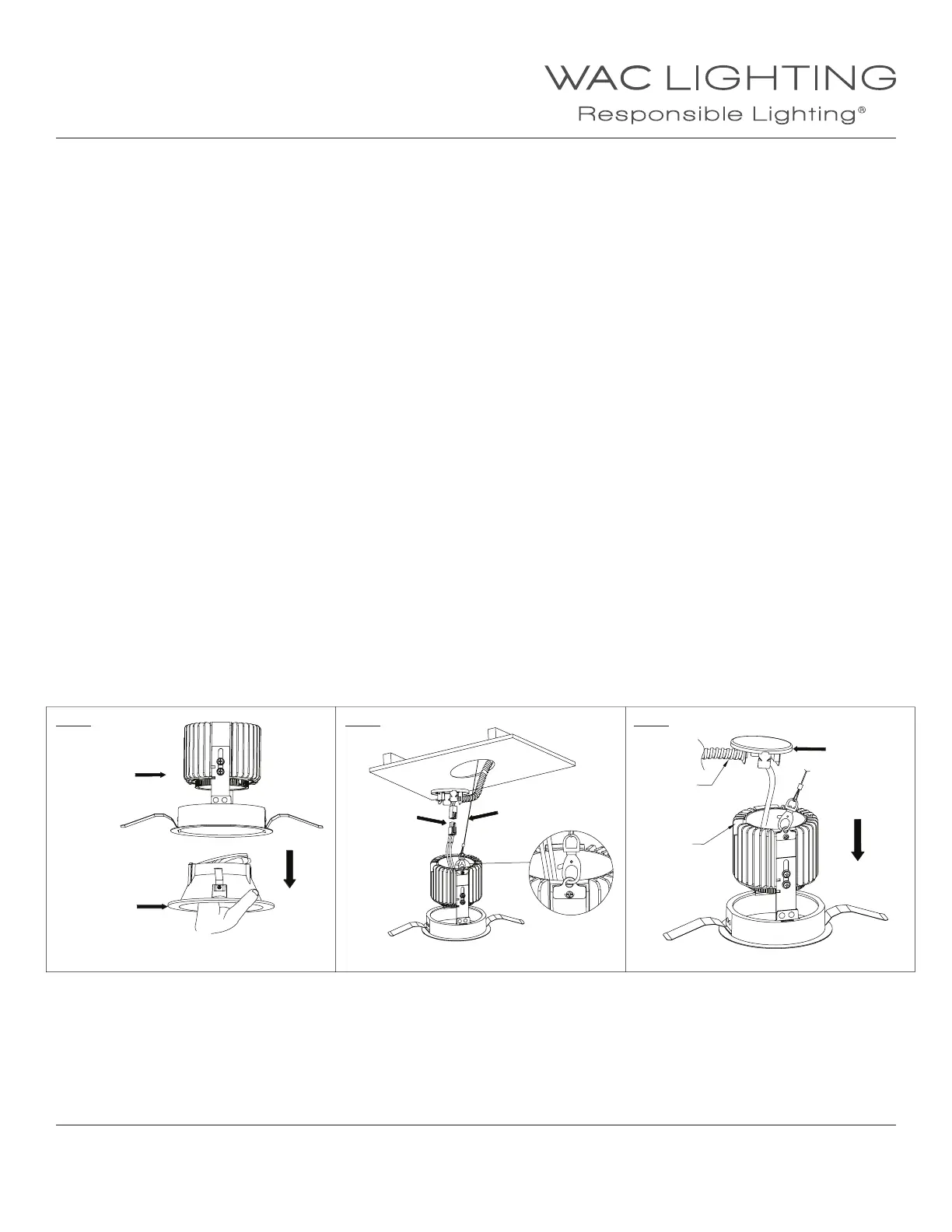

1. Remove trim from trim assembly (See FIG.1)

2. Raise trim assembly to ceiling cutout and connect power connector and safety cable (See FIG.2)

3. Install connector cap onto top of trim assembly, careful not to pinch power wiring. Make sure the cap wire cable aligns with the notch on

the top of heat-sink. (See FIG.3).

Trim

assembly

Power

Connector

Safety Cable

Cap

Wire

Cable

Notch

Trim

FIG. 1FIG. 2FIG. 3
