WARNING:

IMPORTANT: NEVER attempt to do any work without shutting o the electricity.

• Read all instructions before installing.

• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the circuit

breaker switch(es) that control the power to the xture or room that you are working on.

• Place the wall switch in the “OFF” position.

AVERTISSEMENT:

IMPORTANT: Coupez l’électricité avant TOUTE manipulation.

• Lisez toutes les instructions avant d’installer.

• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).

• Placez l’interrupteur mural en position d’arrêt (« OFF »).

CAUTION:

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken.

Failure to follow this instruction could invalidate the ETL/cETL listing of this xture.

OVERVIEW:

Housing is for IC Airtight remodel and new construction applications. Housing requires a remote power supply to power the LED and a trim for a

nished look. Refer to specication sheets for compatible remote power supply and trim options .

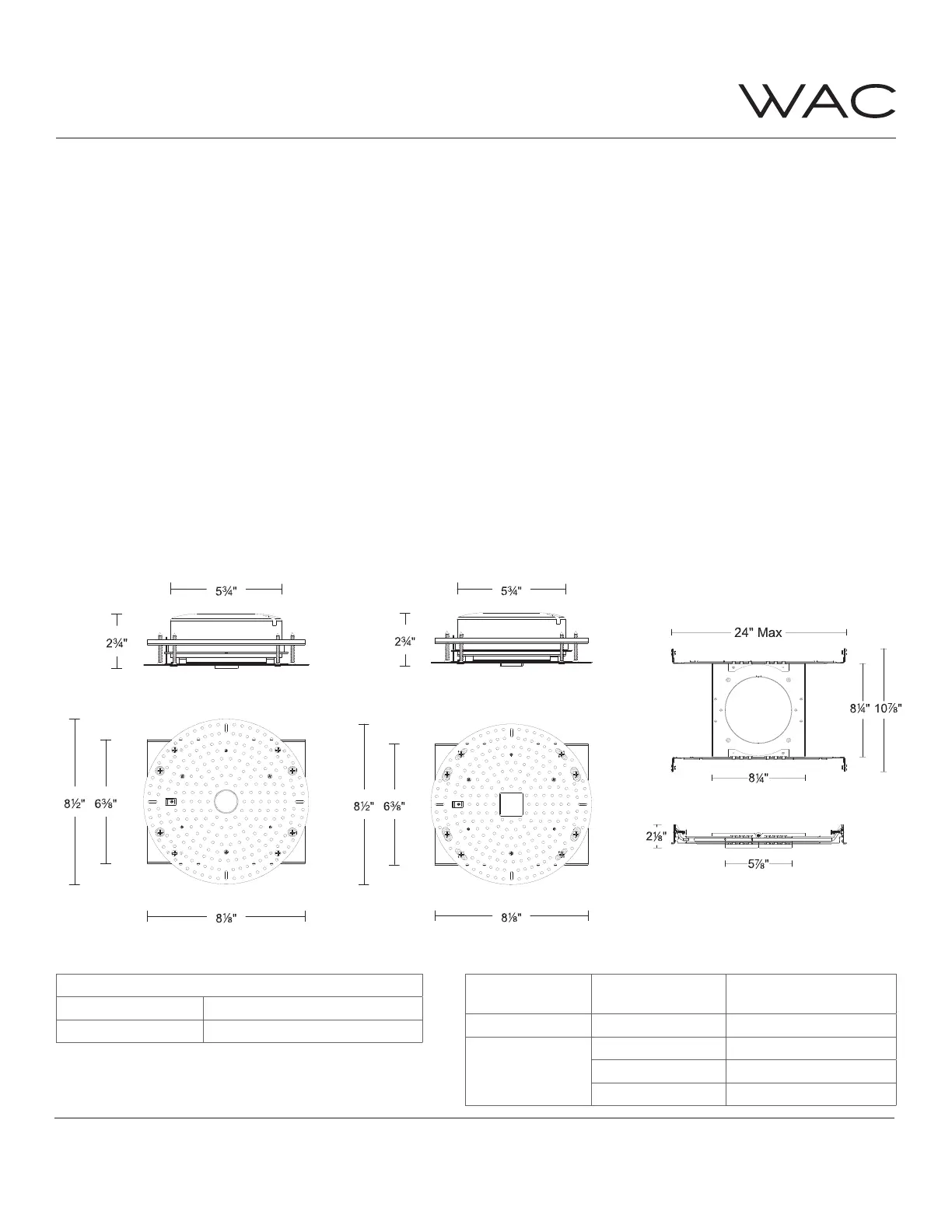

OVERALL HOUSING DIMENSION

SPECIFICATIONS

InputDC 18V, 600mA Constant Current

Ceiling Thickness1/2” - 2”

INSTALLATION INSTRUCTION

AETHER ATOMIC - TRIMLESS DOWNLIGHT, PINHOLE, WALL WASH

R1ARRL, R1ASRL, R1ABFL

R1ARRLR1ASRLR1ABFL

Installation TypeCeiling Thickness

Minimum Required

Ceiling Plenum Height

New Construction

2” - 2”

3”

Remodel

2”3 2”

1”

4 2”

2”

5 2”
