INSTALLATION INSTRUCTION

Ovum, Charge, Portal LEDme® Quick Connect™ Fixtures

QF-LED173

OVERVIEW

QF-LED173 xture is designed for use with WAC Quick Connect™ systems available in: Solorail(LM), Duorail(LM2),

Monopoint (QMP), Line Voltage Track(H, J, L), Flexrail(HM1)

QUICK CONNECT™ ADAPTER (ORDER SEPARATELY)

Solorail (LM) Adapter: LM-QADP

Duorail (LM) Adapter: LM2-QADP

Flexrail1 (HM1) Adapter: HM1-EN50

Line Voltage Track (H, J, L) Adapter:

EN-HQ50AR, EN-JQ50AR, EN-LQ50AR

INSTALLING THE QUICK CONNECT:

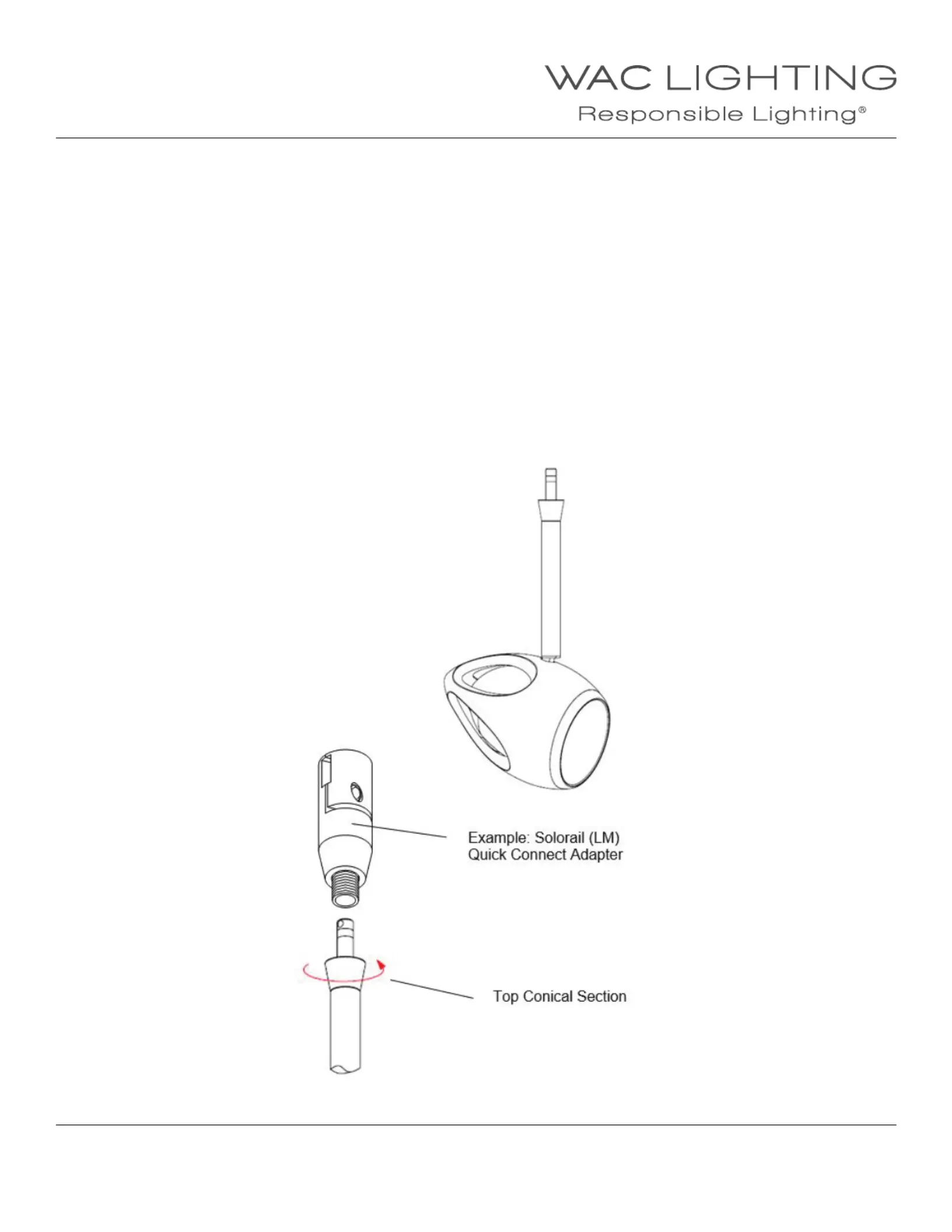

1. Insert the post of the quick connect into the quick connect adapter.

2. Thread the top half of the conical section until it seats with the adapter.

3. Adjust xture position, use caution not to loosen the conical section.
