INSTALLATION INSTRUCTION

Lucio LED Monopoint

MO-6010/MO-6022

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF”

the circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the “OFF” position.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en Position d’arrêt (« OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are

worn out or broken. Failure to follow this instruction could invalidate the UL listing of this xture.

INSTALLING LAMP (FIG.1)

1.

Loosen the three canopy screws, twist and separate

the canopy cover from the base plate.

(keep screws on base plate)

2. Remove the knock out marked with “WIRING HOLE” label

from the base plate.(Another KO is not for use)

3. Attach the base plate to the surface by using slotted holes

for mounting screws (supplied).

4. Connect xture wires to building wires. This xture features

electronic low voltage (ELV) or 0-10V dimming capabilities.

To utilize ELV, wire black (line hot) and white (line neutral) in

accordance to dimmer specications. To utilize 0-10V dimming,

wire 0-10V+ (dim+), 0-10V- (dim-), black (line hot),

white (line neutral) in accordance to dimmer specications.

Green xture wire to ground.

5. Align the wiring hole on the canopy to the one on the base plate

and mount it by twisting key holes over three screws in base plate.

6. Tighten screws to secure canopy.

7. After the light is on, rotate the luminaire body horizontally or

vertically to aim properly.

Electrical Data

INPUT VOLTAGE120-277V AC, 50/60Hz

DIMMINGELV, 0-10V

Base Plate

Base Plate

Mounting Screw

Canopy Mounting

Screw

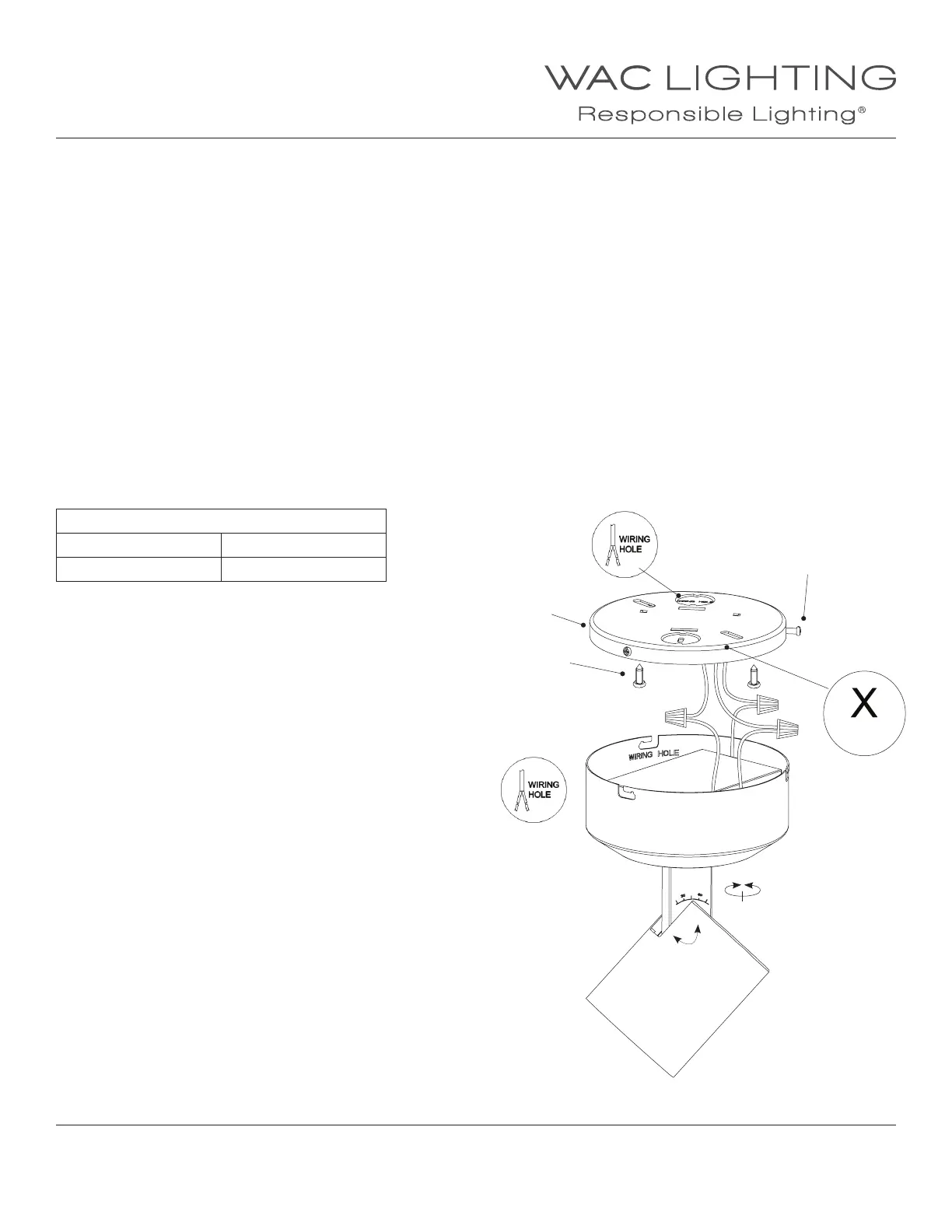

Fig.1

NOT FOR USE

365°

Canopy

90°
