INSTALLATION INSTRUCTION

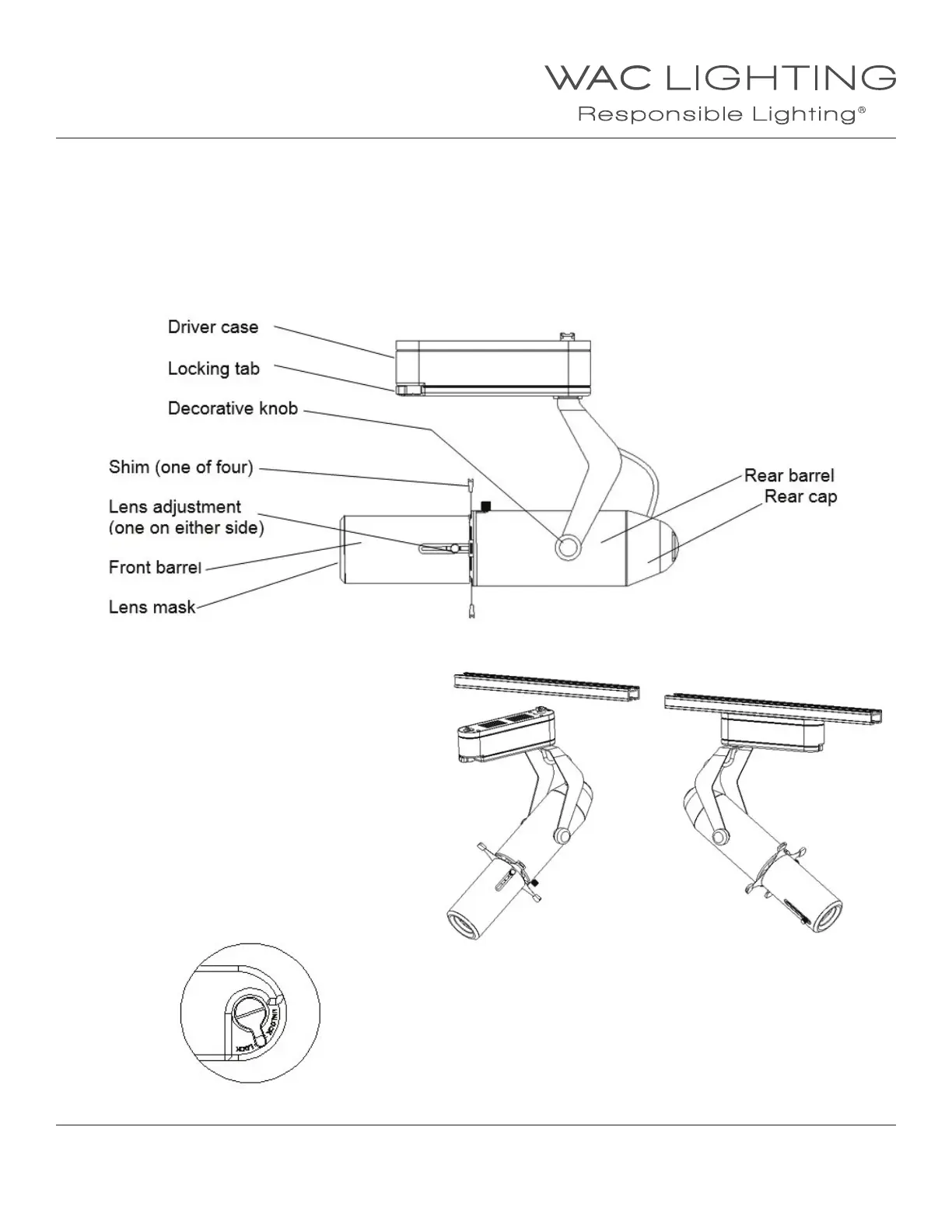

LED009 LED Framing Projector Track Luminaires

H-LED009, L-LED009, J-LED009

CAUTION:

Always turn o power at main switch prior to installation to prevent electrical shock

FIXTURE INSTALLATION

The LED009 framing projector creates a square or rectangular area of light to frame or highlight artwork.

By using two lenses, the xture controls the size and sharpness of the edge of the light beam.

The xture may also be used to project images on a wall through the use of a at disc or lens called a gobo.

For optimum performance highlighted objects should be 3 to 5 times the light level of ambient room light.

INSTALLING TO TRACK:

1. Note the track has a groove running it’s length to

indicate polarity.

2. Note the arrow direction on the top of the ballast

case

3. Insert adapter into track slot and rotate it 90°,

(the J-track system, “P” contact or H-track system

two contacts should be face to the grooved side

of the track)

4. Push and turn the locking tab in the same

direction until seats in the track, should point to

grooved or ridged.

Removal is the reverse procedure. Track heads may

be positioned anywhere along

Product specificaties
