WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014

INSTALLATION INSTRUCTION

1” LEDme Mini Recessed - New Construction

HR-LED231R, HR-LED232R, HR-271R, HR-272R

SAFETY INSTRUCTION

To reduce the risk of re, electrical shock and injuries to persons:

• Turn o power at main switch prior to installation.

• Use only with Class 2 Power supplies unit.

• Contact Manufacturer for LED replacement.

• Contact customer service ,better to use the recommended Class 2

power supplies unit.

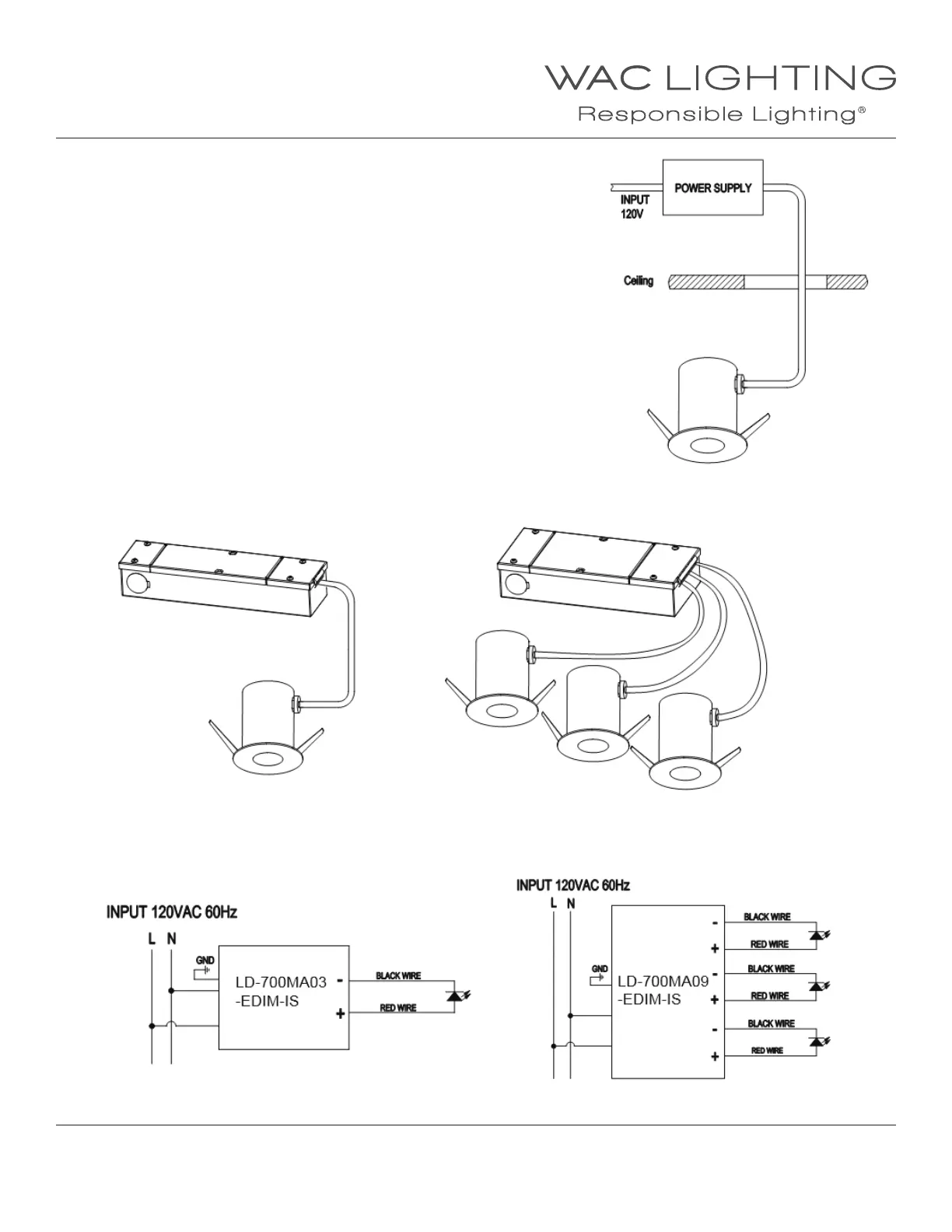

MOUNTING AND WIRING:

1. Cut a 2 1/4” diameter hole on the ceiling.

2. Feed the xture wires through the hole, and connect to wires from

the Power Supply with connector.

3. Compress the springs on either side of the xture and insert into the

ceiling until the trim ring is ush to the ceiling.
