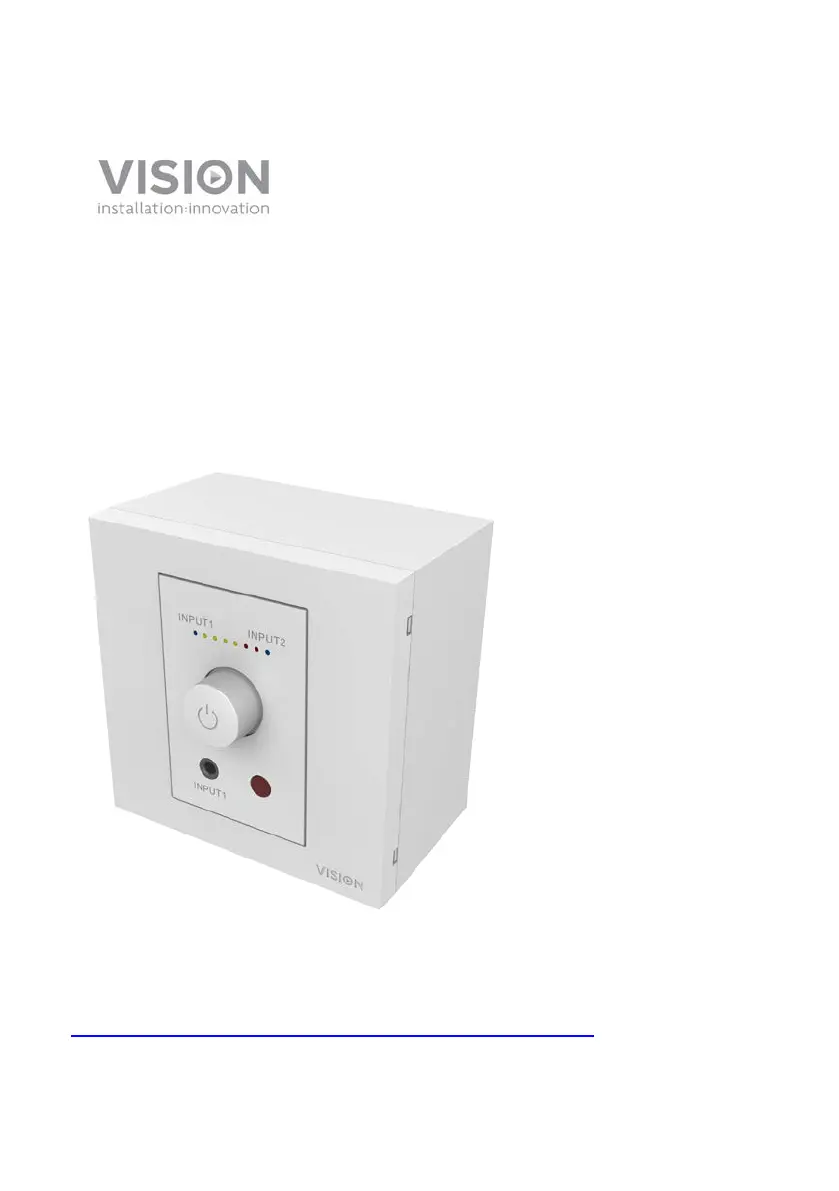

Pagina 1/14

TC3- AMP_manual_en.doc

DECLARATION OF CONFORMITY

Where applicable Vision products are certified and comply with all known local regulations t o a

‘CB Certification’ standard. Vision commits to ensure all products are fully compliant with all

applicable certification standards for sale in the EU and other participating countries.

The product described in this owner manual is in compliance with RoHS (EU directive

2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. This product should be returned to

the place of purchase at the end of its useful life for recycling.

WARNINGS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan

Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park,

Clifton Moor, York, YO30 4GH. WEEE Registration: GD0046SY

DECLARATION OF ORIGIN

All Vision products are made in the People’s Republic of China (PRC).

TC3- AMP_manual_en.doc

USE ONLY DOMESTIC AC OUTLETS

Connecting the unit to an outlet supplying a higher voltage may create a fire hazard.

HANDLE THE POWER CORD WITH CARE

Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself.

Pulling the cord may damage it. If you do not intend to use your unit for any considerable length

of time, unplug the unit. Do not place furniture or other heavy objects on the cord, and try to

avoid dropping heavy objects on it. Do not tie a knot in the power cord. Not only could the cord

be damaged, but a short circuit could also be caused with a consequent fire hazard.

PLACE OF INSTALLATION

Avoid installing this product under the following conditions:

• Moist or humid places

• Places exposed to direct sunlight or close to heating equipment

• Extremely cold locations

• Places subject to excessive vibration or dust

• Poorly ventilated places

Do not expose this product to dripping or splashing. DO NOT PLACE OBJECTS FILLED WITH

LIQUIDS ON OR NEAR THIS PRODUCT!

MOVING THE UNIT

Before moving the unit, be sure to pull out the power cord from the AC outlet and disconnect the

interconnection cords with other units.

WARNING SIGNS

If you detect an abnormal smell or smoke, turn this product off immediately and unplug the

power cord. Contact your reseller or Vision.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair.

IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE,

DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

WATTS

The most consistent standards for measuring watts are “Program Power” and “RMS” because

these measure average sustained levels.

Amplifier power output changes depending on how many loudspeakers are connected.

Professional manufacturers typically quote output based on 8 ohms. Less reputable

manufacturers quote at 4 ohms to make their product seem more powerful.

This amplifier has an output of:

2 x 25w (sometimes referred to as 50w) @ 8 ohms (two loudspeakers connected)

2 x 50w (sometimes referred to as 100w) @ 4 ohms (four loudspeakers connected)

Product specificaties

Merk:	Vision
Categorie:	Receiver
Model:	TC3 50w
Kleur van het product:	Wit
Gewicht:	630 g
Breedte:	42 mm
Diepte:	36 mm
Hoogte:	64 mm
Gewicht verpakking:	1100 g
Connectiviteitstechnologie:	Bedraad
Afmetingen verpakking (BxDxH):	240 x 205 x 63 mm
Audio-ingang (L, R):	2
Gemiddeld vermogen:	50 W
DC voltage input:	12 V
Certificering:	WEEE, CE/EMC, C-TICK, FCC, IC
Aansluiting voor netstroomadapter:	Ja
Bedoeld voor:	Thuis
Duurzaamheidscertificaten:	RoHS
Audio (L,R) out:	2
Audio-uitgangskanalen:	2.0 kanalen
Frequentiebereik:	80 - 22000 Hz
Signaal/ruis-verhouding:	98 dB
Totale harmonische vervorming (THD):	1 procent
AC-ingangsspanning:	100-240 V
AC-ingangsfrequentie:	50 - 60 Hz
Stroomverbruik (typisch):	50 W
Input sensitiviteit:	500 mV
Piekvermogen per kanaal:	25 W
Synchronisatie ingangsimpedantie:	50000 Ohm
Versterker klasse:	D
RMS vermogen uitvoer per kanaal (8 Ohm):	25 W
