PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

COMMUNICATION & SECURITY SOLUTIONS

Features

TheK-1205Entry Phone is a two-way, handsfree

telephone with 12 buttons for calling individual

residences in an apartment building. It also has a

built-in color CCTV video camera. The rugged

stainless steel faceplate has a printed directory

housed in a waterproof, scratch-resistant lens.

Each button is beside the tenants name in the

directory so there are no confusing codes to deal

with. Calling a particular tenant is as easy as

pressing a single button. The has a built inK-1205

speed dialer that can handle up to 12 primary

phone numbers, each with 22 digits. If there is no

answer at the first number, a second number can

be called automatically. Once the tenant answers

their phone, a single touch tone command can

activate the door strike relay. For “no phone line”

applications, the is compatible with the K-1205C-

3000no CO (phone line) controller. The high

resolution video camera is mounted on an

adjustable bracket so it can be positioned just right

to view the outside visitor.

The K-1205-EWPshares all of the features of the

K-1205in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

• Vandal Resistant Features:14 gauge louvered 316

stainless steel faceplate with permanent laser etched

graphics, heavy duty metal keypad and T-10 Torx

security screws.

• Marine grade 316Weather Resistant Features:

stainless steel faceplate and screws. Internally sealed

keypad. Mylar speaker. Self-draining mic mount.

Faceplate, keypad, mic and speaker gaskets.

• is designed to meet IP66 IngressK-1205-EWP

Protection Rating (see DOD 859for more info)

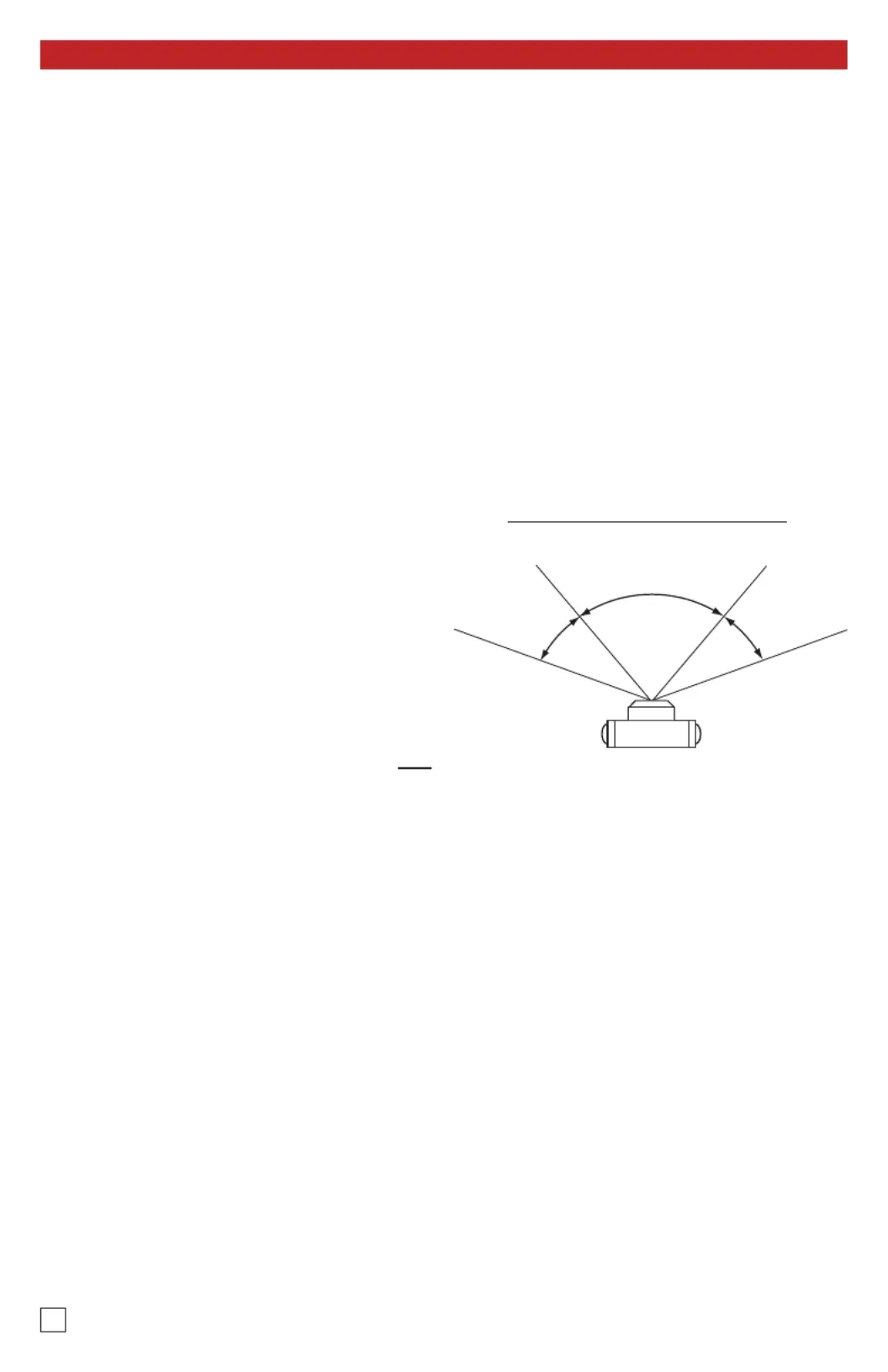

• Built-in high resolution color video camera with wide

viewing angle, tilt/swivel adjustments and wide oper-

ating temperature of -30°F to 150°F

• Entry phone operates on 12 to 24 volts AC/DC. Video

camera requires 6 to 22 volt DC power.

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with for increased securityC-1000B

• Works with for “No CO” (phone line) operationC-3000

• 50 keyless entry codes and postal lock input

• Small apartment buildings

• Professional buildings

• Gated communities

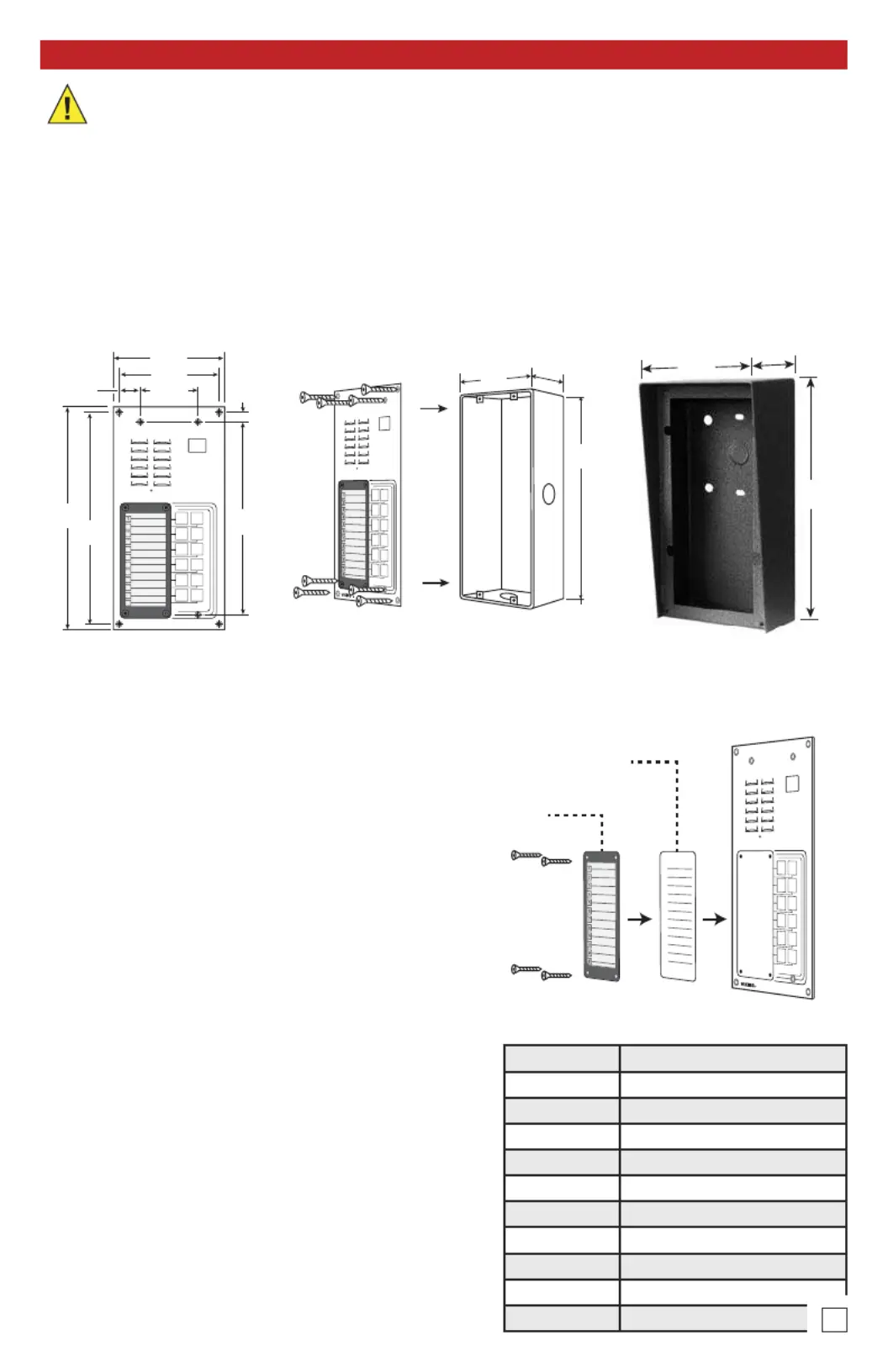

Dimensions: 5" x 10" x 2.5 (127mm x 254mm x 63.5mm )

Shipping weight: 5.5 lbs. (2.5 kg)

Standard K-1200 Environment: -30° F to 150° F (-34° C

to 65° C) with 5% to 95% non-condensing humidity

K-1200-EWP Environment:-30° F to 150° F (-34° C to

65° C ) with up to 100% condensing humidity

Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC Maximum

Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (13) gel-filled butt connectors (3M

Scotchlok UR2)

(See page 2 for complete specifications)

K-1205/EWP

Multi-Button Handsfree

Entry Phone with Camera

April 26, 2018

Applications

Specifications

www.V ikingElectronics.com

Information: 715-386-8861

VIKING

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming.

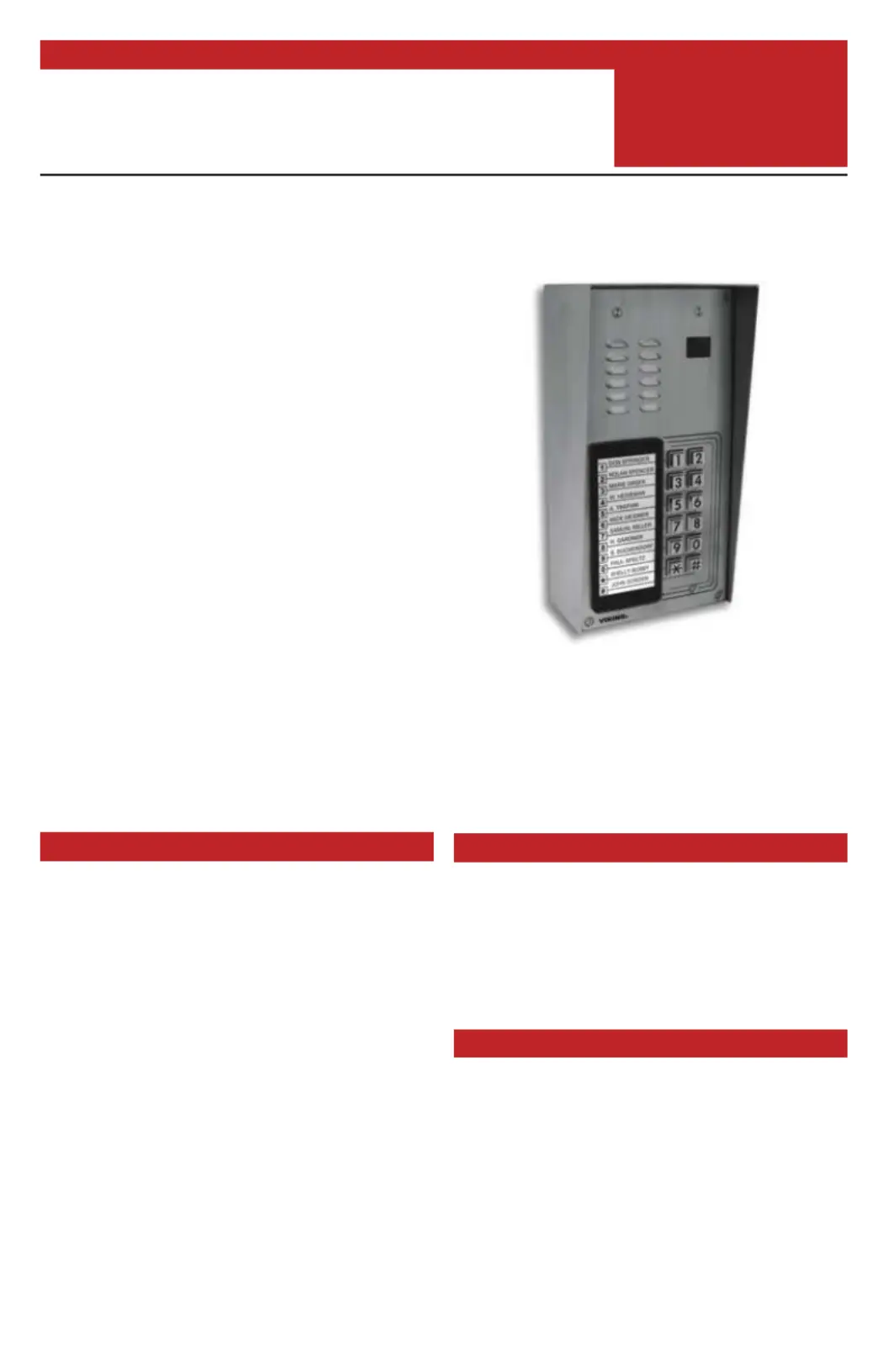

(shown in optional

VE-5x10-SS, not included)

12 Button Apartment Entry Phone with

Built-In Door Strike Relay and Camera

Product specificaties
