PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

SECURITY & COMMUNICATION SOLUTIONS

Provide Reliable and Intelligent

Communication In Noisier Locations

Features

The E-30-PTis designed to provide quick and reliable

communication in noisier areas. The mic sensitivity is set

to a low level until the TALKbutton is pressed then it is

raised to a normal level. In this way, the assuresE-30-PT

that the called party’s voice will be broadcast over the

speaker. In applications where the background noise

can be louder than the person calling, a handset type

phone is recommended.

The E-30-PTfeatures non-volatile memory, a built in

dialer, and intelligent call progress detection for automatic

hang-up when the call is completed. The can beE-30-PT

programmed to dial up to 5 different numbers on ring no

answer or busy and can be configured to dial these

numbers until answered.

The E-30-PT-EWPshares all of the features of the

E-30-PTin addition to Enhanced Weather Protection

(EWP) for outdoor installations where the unit is exposed

to precipitation or condensation. EWP products feature

foam rubber gaskets and boots, silicon sealed

connections, gel-filled butt connectors, as well as

urethane or thermal plastic potted circuit boards with

internally sealed, field-adjustable trim pots and DIP

switches for easy on-site programming.

• Vandal Resistant Features:14 gauge louvered 316

stainless steel faceplate with permanent laser etched

graphics, speaker/mic screen, heavy duty metal “Call”

button and T-10 Torx security mounting screws

• Marine grade 316Weather Resistant Features:

stainless steel faceplate, T-screws and push button

switch. Switch internally sealed per IP67. Mylar

speaker. Self-draining mic mount. Faceplate, mic and

speaker gaskets. Weather resistant powder paint on

optional ().VE-5x5DOD 424

• E-30-PT-EWPis designed to meet IP66 Ingress

Protection Rating (see for more information)DOD 859

• Push to talk button

• Telephone line powered

• Non-volatile E

2

memory (no batteries required)

• Programmable to dial up to 5 numbers on busy or ring

no answer

• Blue off-hook LED indicator

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on

busy signal, return to dial tone, CPC, reorder tone,

maximum call time out and programmable silence

time out

• Selectable auto-answer feature for monitoring

• Selectable push button disconnect

• Extended temperature range (-30°F to 150°F)

• Flush mountable using included plastic rough-in box

• Optional surface mount back box ()VE-5x5DOD 424

Non-ADA Hot-Line Phones for:

• Terminals• Parking lots/ramps

• Stadiums• Convention centers

• ATM machines

Gate and Door Entry Phones for:

• Business lobbies• Residences

• Vehicular and Pedestrian gates

Power:Telephone line powered. Minimum 24V DC talk

battery voltage, with a minimum loop current of 20mA

loop. Loop current may be boosted on low current lines

with a Viking Model talk battery booster (seeTBB-1B

DOD 632).

Minimum Ring Voltage: 90VAC RMS

Dimensions: Overall-5” x 5” x 2.25” (127mm x 127mm x

57mm), Plastic Electrical Box-4” x 4” x 2.12” (102mm x

102mm x 54mm )

Shipping Weight:2.2 lbs (1 Kg)

Operating Temperature: -30°F to 150°F (-34°C to 65° C)

Humidity - E-30-PT:5% to 95% non-condensing

Humidity - E-30-PT-EWP:Up to 100% condensing

Connections - E-30-PT: RJ11 jack

Connections - E-30-PT-EWP: Gel-filled butt connectors

E-30-PT/EWP

Speaker Phone with

Push to Talk Button

February 5, 2018

Applications

Specifications

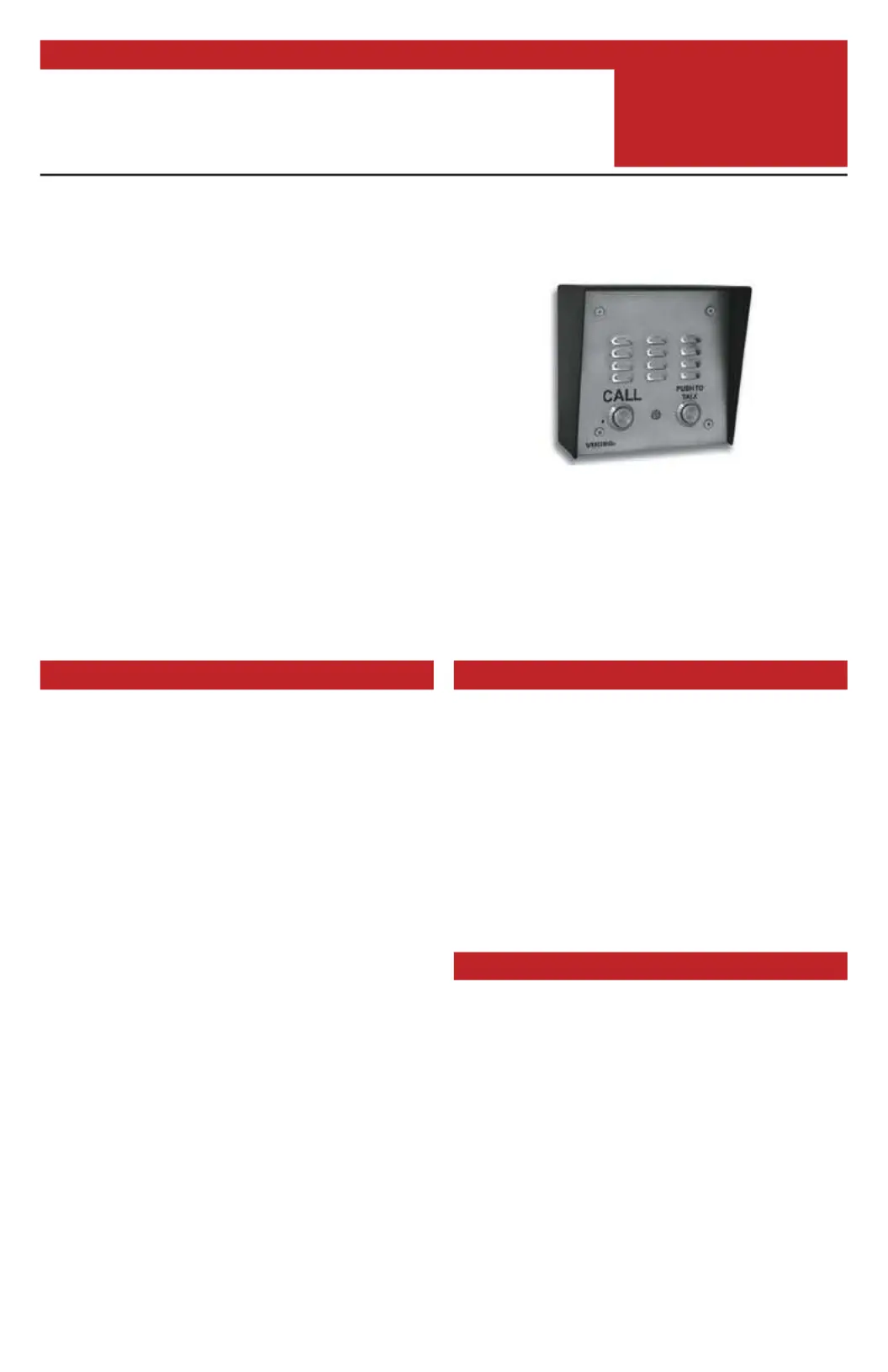

VIKING

E-30-PT/E-30-PT-EWP

Brushed 316 Stainless steel

shown with optional VE-5x5

CAUTION - When installing on an analog extension of a phone

system: Some phone systems do not conform to analog telecom

standards and might not be compatible with the E-30-PT speaker

phones. For a detailed description of the telephone line

specifications required for any of the E-30-PT phones, see DOD#

869.
