O’WNRES MANUAL

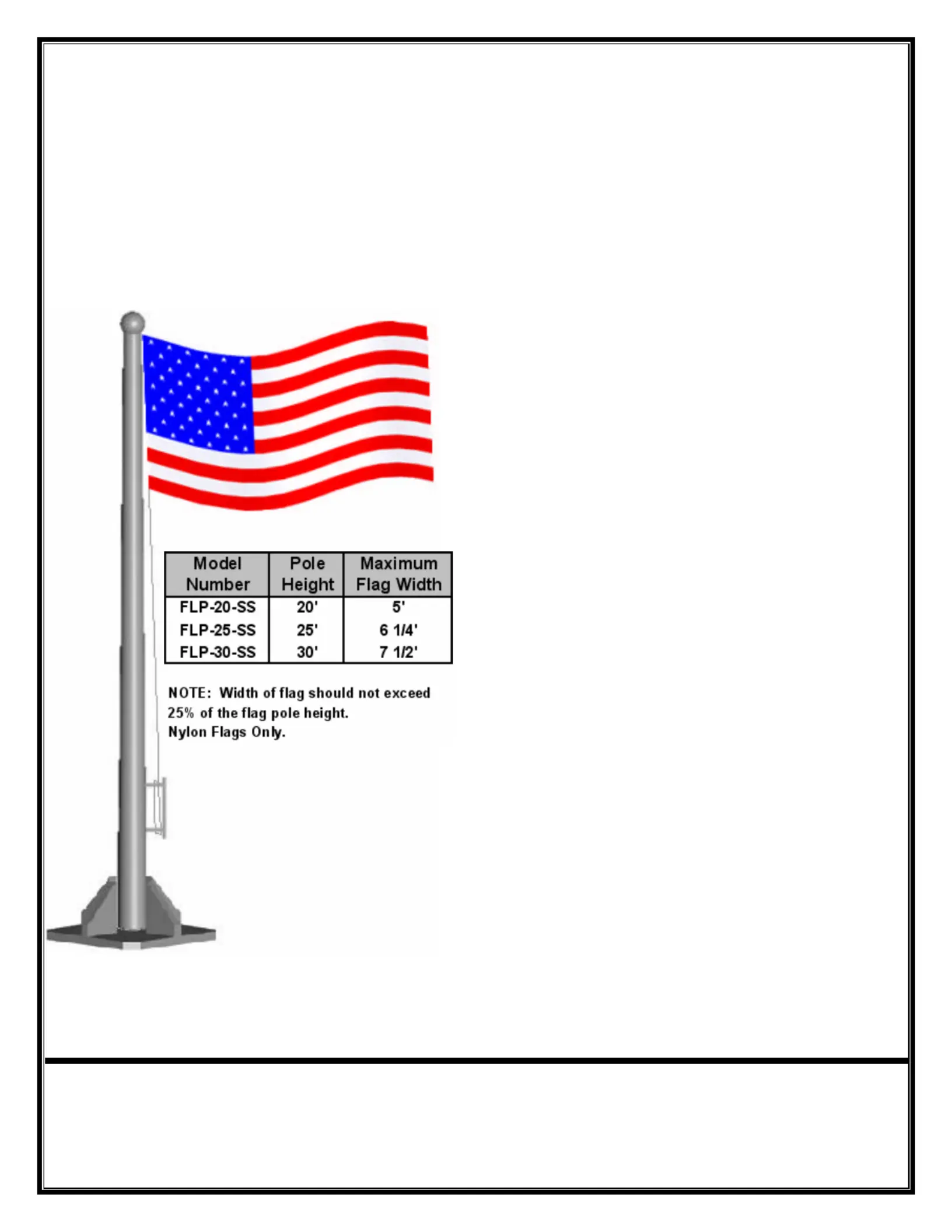

STAINLESS STEEL FLAGPOLES
MODEL FLP
INSTALLATION INSTRUCTIONS
1. A concrete pad will need to be poured for
installation. Use 3000 psi minimum
strength concrete. The size of the pad will
need to be 30” x 30” x 42” depth. The top
surface must be level in order for the
flagpole to be plumb once installed.
2. Allow concrete to set up for at least 24 hours.
3. Once concrete has fully set, center the base
plate on the concrete pad and mark out all holes
onto the concrete. Remove the base plate and
using a concrete hammer drill equipped with a
¾” diameter masonry drill bit, drill holes out to a
depth of 7”.
4. After all holes are drilled, place base plate back
on the concrete pad. With the base plate sitting
sevel on the pad, check for plumb of the pole.
Shimming may be required at this point to bring
pole plumb.
5. Insert ¾” sleeve anchor concrete bolts x 6”
Length into each hole in the base plate, tapping
the bolts into place may be required to set the
bolts in the full depth. Tighten the bolts in a
crosswise pattern to insure the plate stays level
on the pad.
Revised 7-04
Vestil Manufacturing Company
2999 North Wayne St., Angola, IN 46703
Ph: (260) 665--9521 · Fax: (260) 6651339
E-mail: sales@tseq.com · www.tseq.com
