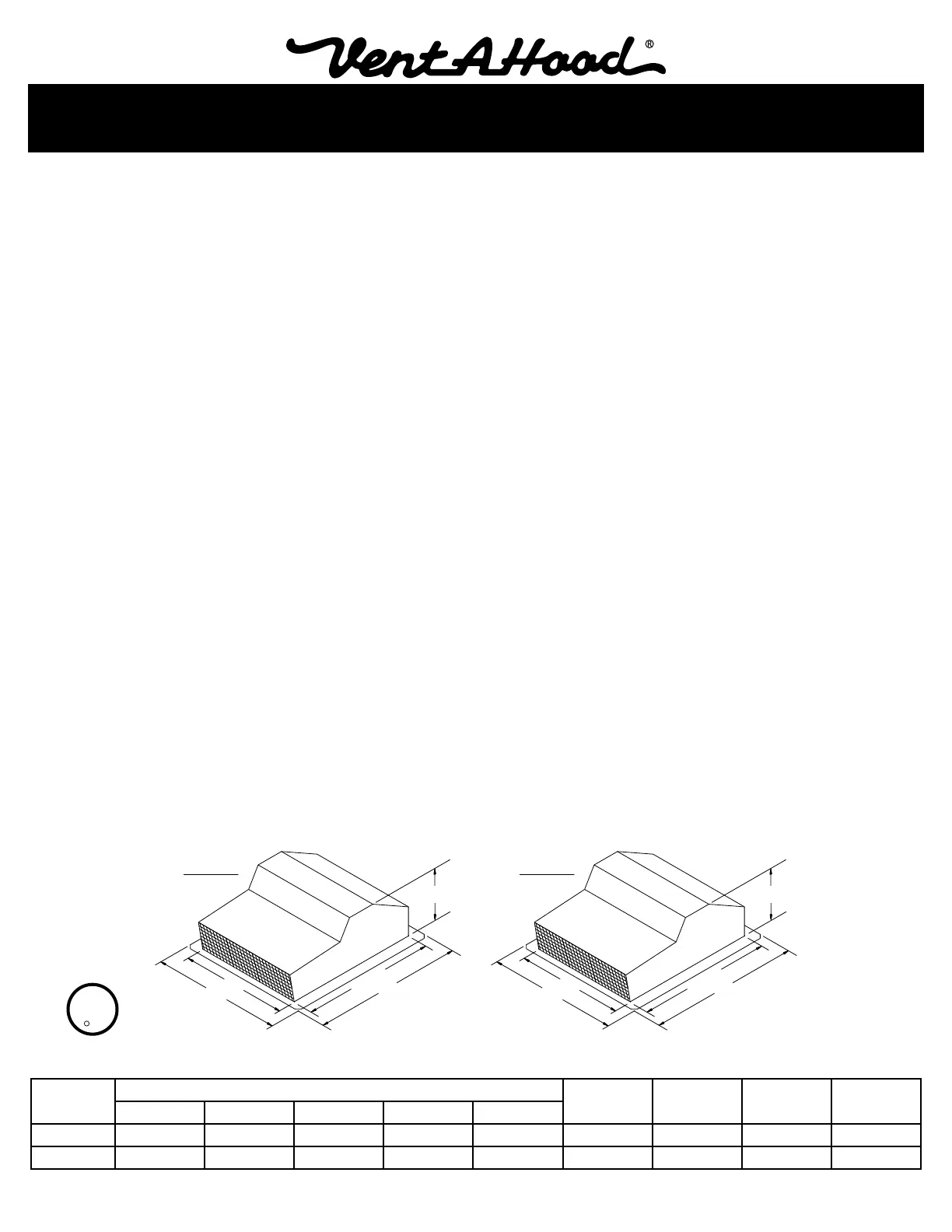

L101 0810APage 1

24”

10”

20”

28”

24 ¾”

RM1000

U

L

CUS

R

24”

12 ¼”

20”

28”

24 ¾”

RM1500

CFM Ratings and Electrical Specications

Model

CFM At Static Pressure Ps = Inches of Water

VoltsAmpsHz

Duct

Size

0.0" Ps0.1" Ps0.2" Ps0.3" Ps0.5" Ps

RM10009459228848527701203.26010"

RM1500150014551410137512951205.06010"

INSTALLATION INSTRUCTIONS

FOR REMOTE BLOWER MODEL RM1000 & RM1500

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,

OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the

address or telephone number listed on the back cover of

the Homeowner’s Manual.

B. Before servicing or cleaning unit, switch power off at the

service panel and lock the service disconnecting means to

prevent power from being switched on accidentally. Then

the service disconnecting means cannot be locked, securely

fasten a prominent warning device, such as a tag, to the

service panel.

C. Installation work and electrical wiring must be done by

qualied person(s) in accordance with all applicable codes

and standards, including re-rated construction codes and

standards.

D. Sufcient air is needed for proper combustion and exhausting

of gases through the ue (chimney) of fuel burning equipment

to prevent back drafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as

those published by the National Fire Protection Association

(NFPA), and the American Society for Heating, Refrigeration,

and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

E. When Cutting or drilling into wall or ceiling, do not damage

electrical wiring or other hidden utilities.

F. Ducted fans must always be vented to the outdoors.

WARNING

1. TO REDUCE THE RISK OF FIRE, USE ONLY METAL

DUCTWORK.

2. THIS FAN IS UL LISTED FOR USE WITH VENT-A-HOOD

MODEL B210R.

CAUTION

1. FOR GENERAL VENTILATION USE ONLY. DO NOT USE

TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS

AND VAPORS.

INSTALLATION TIPS

1. For best performance, keep duct length and number of

elbows to a minimum. 10” round ducting or equivalent is

recommended.

2. Select a location that is free of obstacles such as heating and

air conditioning ducts, water pipes, electrical wiring, etc.

3. Position discharge of the blower down towards ground level

and away from prevailing winds to minimize back drafts.

4. For best appearance, locate the fan on the rear of the house,

below the top of the roof line.

PRODUCT SPECIFICATIONS
