WALL MOUNTED LINER INSERT SPECIFICATIONS
Model Number: M52SLD
Special Notes: LED GU10 lighting. M600 and M1200 blowers are sold separately. Features stainless steel bae lters.
WIDTH: 52 3/8"
DEPTH: 19 1/4"
HEIGHT: 12 1/2"
CFM: (Chart A)
SONES: N/A
AMPS: (Chart B)
# LIGHTS: 3
REC. MOUNTING HEIGHT*
* Exceeding recommended
mounting height may compromise
performance.

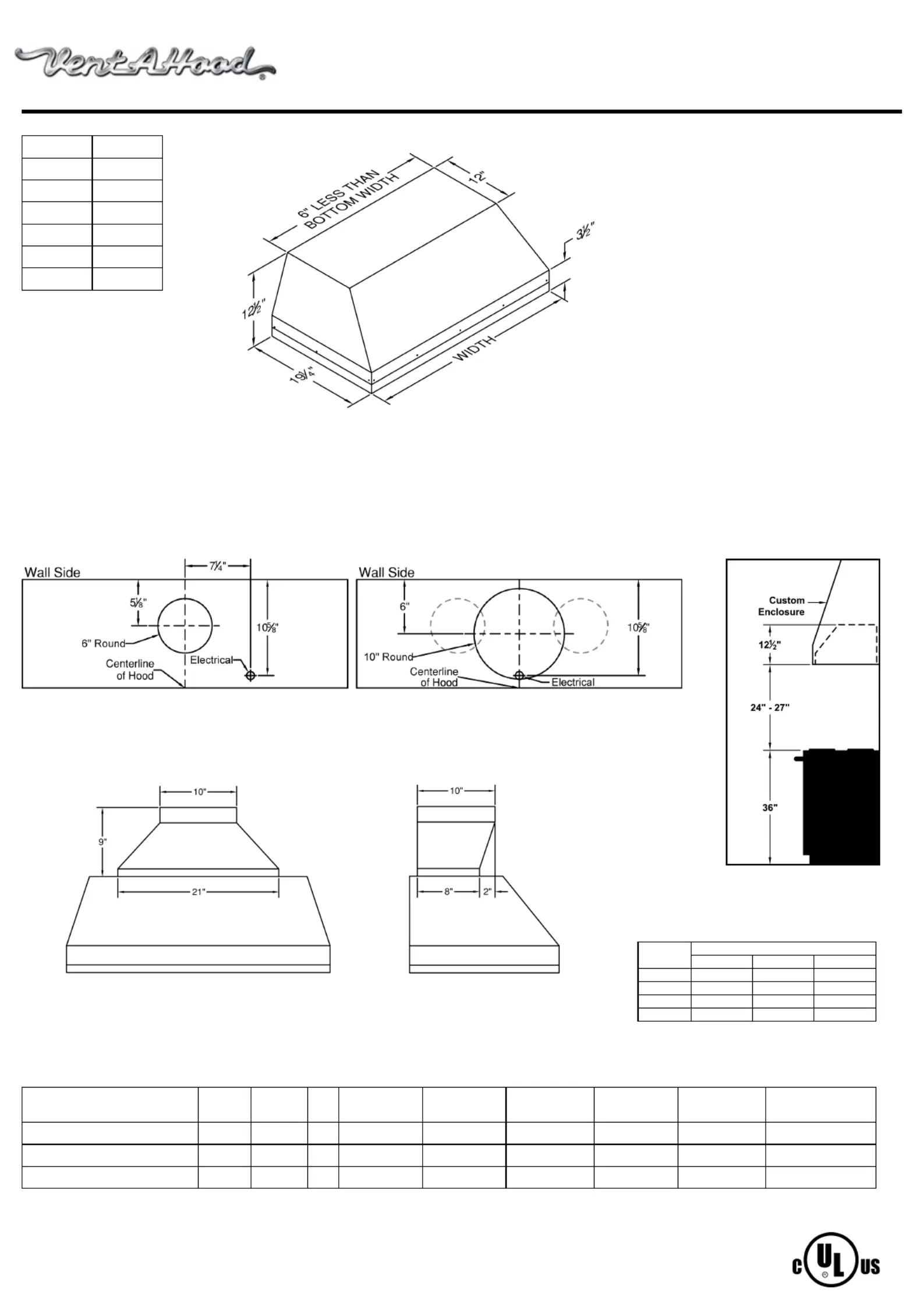

CONNECTION DIAGRAM
M600 & M1200 Connection Diagrams
VP566 Transition Details (Included with M1200)
(Front View)(Side View)
(CHART A) ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT
MODELVOLTSAMPS+HZCFM [email protected]"CFM [email protected]"CFM [email protected]"CFM [email protected]"CFM [email protected]"
MIN. ROUND DUCT
SIZE
M600 Single1155.0606306256156005806" (28in.^2)
M600 w/WHM300 Harness1155.0603023002952882786" (28in.^2)
M1200 Dual11510.06010351015100099591510" (79in.^2)
(CHART B)
SPEED
CFM @ 0.1" S.P.
M600WHM300 *M1200
1240240420
2300300645
3500-865
4625-1015
* The WHM300 is a wiring harness that when
used with the M600 blower (sold separately) will
disable blower speeds exceeding 300 CFM.
+Add 0.5 amp for each halogen light. Hoods are available with halogen lights (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
Specications Subject To Change Without Notice
