ASSEMBLY AND INSTALLATION

INSTRUCTIONS

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

Y0009 / Y0010

181024

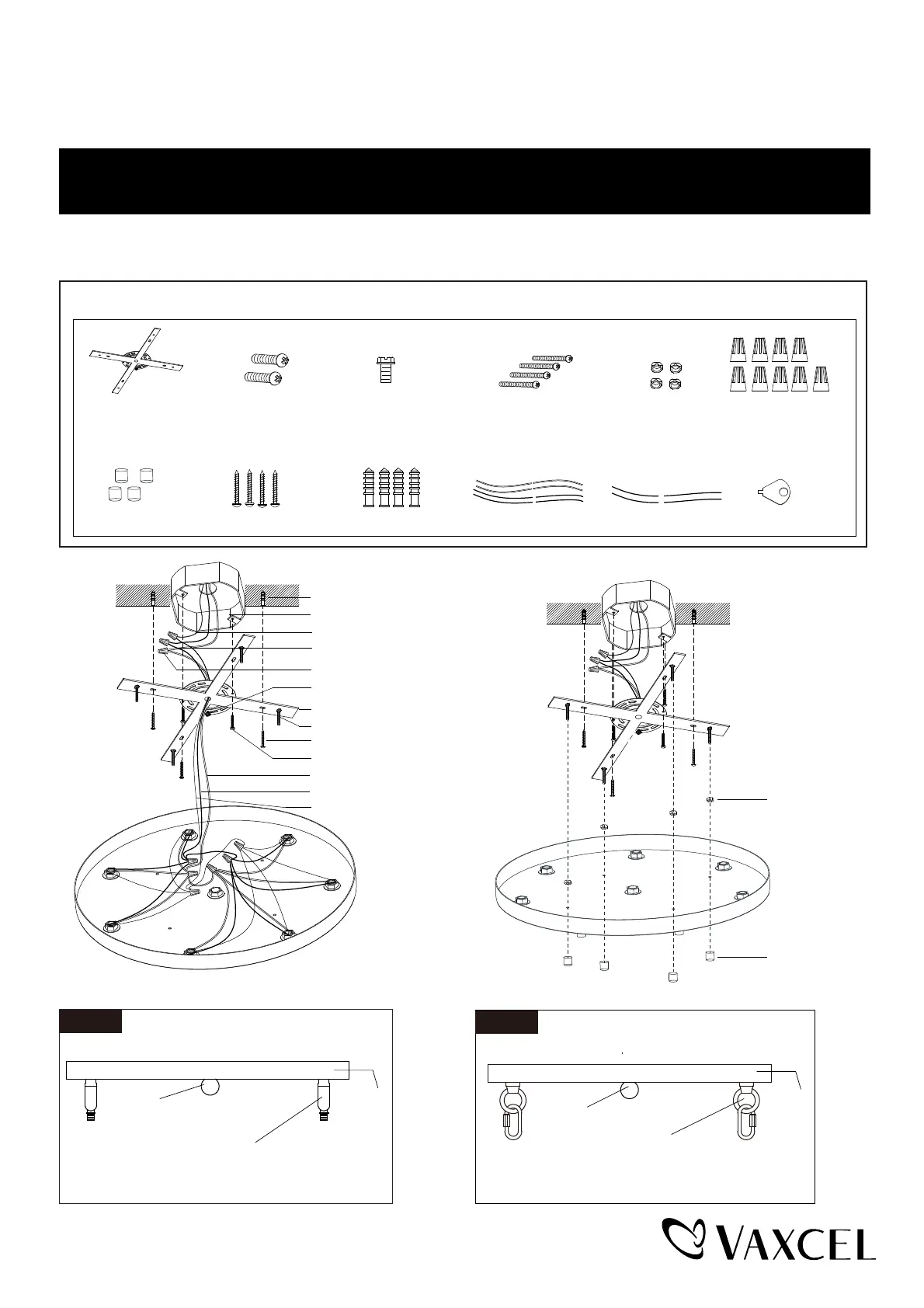

Lock Nut (E)

Ball Nut (G)

House Grounding Wire

Wire Connector (F)

Fixture Grounding Wire (D)

Mounting Plate (A)

Green Grounding Screw (C)

Mounting Screw (B)

Grounding Wire (K)

Outlet Box

Anchor (I)

Black Wire (J)

Dry Wall Screw (H)

Fixture Mounting Screw

White Wire (J)

Lock Nut (E)

Mounting Screw (B)

Wire Connector (F)

Ball Nut (G)

Mounting Plate (A)

Green Grounding

Screw (C)

Fixture Mounting Screw (D)

Hardware Package (included):

Dry Wall Screw (H)Anchor (I)White / Black Wire (J)Grounding Wire (K)Flat Headscrew Driver (L)

Remove the canopy from the fixture

befor installation

Figure.2

Canopy

Fixture

Finial

Finial

Canopy

Figure.1

Fixture

Remove the canopy from the fixture
