Hex Nut

Metal Pad

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0057 / P0059 / P0061 / P0063

Collar

Nipple

Washer

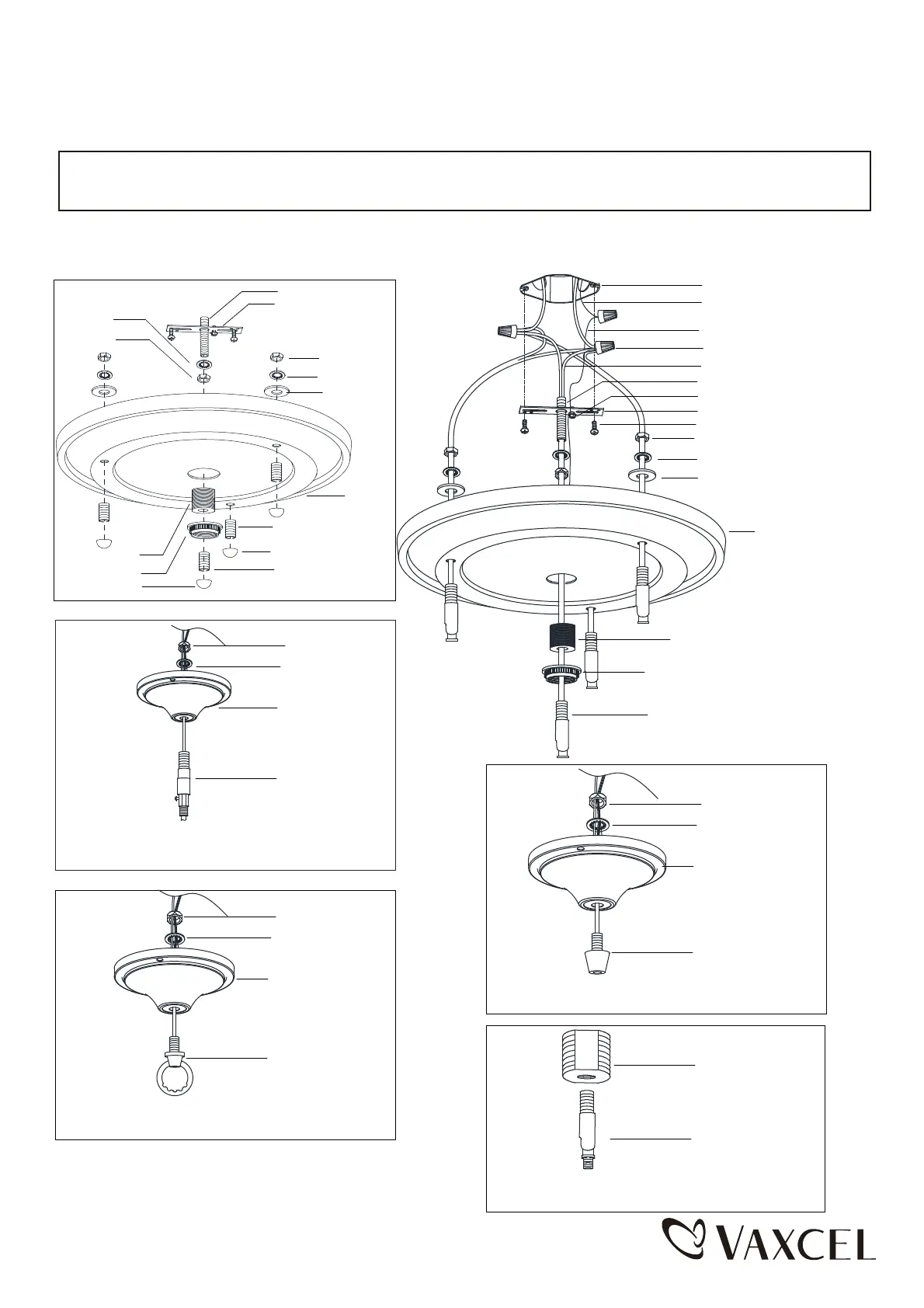

Fig.1

House Grounding Wire

Wire Nut

Fixture Wire

Fixture Grounding Wire

Mounting Strap

Green Grounding Screw

Mounting Screw

Finial

Collar

Fig.2

Remove the canopy from the fixture

before installation

Remove the canopy from the fixture

before installation

Fig.3

Fig.4

Remove the canopy from the fixture

before installation

Remove the coupling from the swivel

before installation

Fig.5

Finial

Canopy

Washer

Mounting Strap

Nipple-1

Coupling

Hex Nut

Washer

Hex Nut

Canopy

Nipple

Nipple-1

Outlet Box

Coupling

Fixture

130709

Metal Pad

Canopy

Washer

Hex Nut

Fixture

Canopy

Washer

Hex Nut

Fixture

Canopy

Washer

Hex Nut

Fixture

Swivel

Coupling
