ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0774
Set screw (D) Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D), remove the two rubber pads (E)
and the mounting plate unit (A) from the backplate.
2. Unscrew the set screws-a and remove the metal frame from the
fixture.
3. Discard the plastic bag and EPS foam from the metal frame.
4. Attach the mounting plate unit (A) to the outlet box by using
two mounting screws (B).
Note: Make sure that two set holes are lined up horizontally
to make the fixture level.
Page 1 / 2

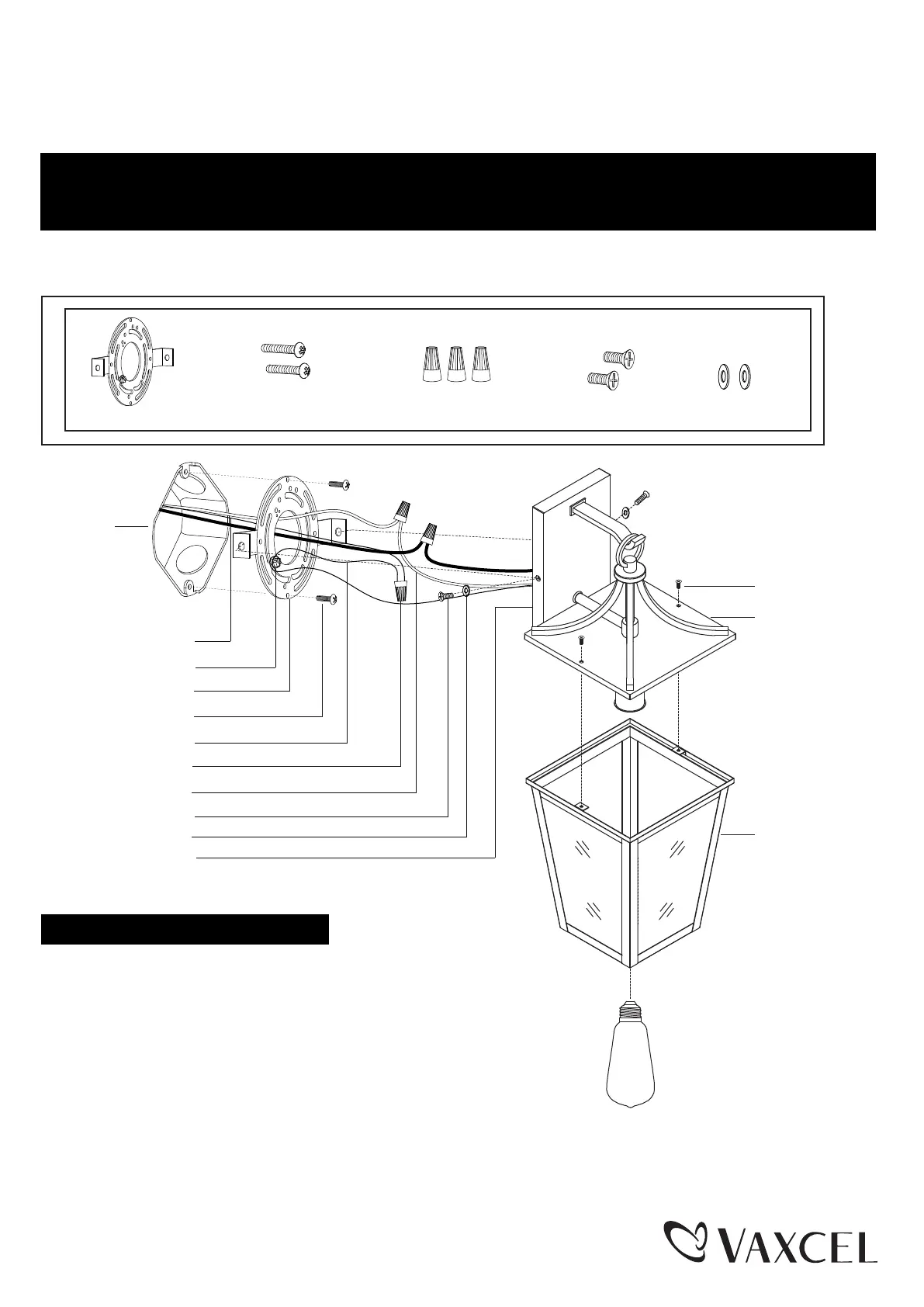

Metal Frame
Fixture
Set Screw-a
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Outlet Box
Fixture Wire
Set Screw (D)
Mounting Screw (B)
Backplate
Rubber Pad (E)
Max. 60W Vintage Bulb
(not included)
240821
Rubber Pad (E)
