Green Grounding

Screw (C)

Headless

screw (H)

Mounting Screw (B)

Wire Connector (E)

Lock Nut (D)

Mounting Plate (A)

Ball Nut (F)

Back Plate

Ball Nut (F)

Rubber Pad (G)

Rubber Pad (G)

Hardware Package (included):

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0389 / T0420

180531

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Warning:LED electronics can be damaged by electro static discharge (ESD)shock. Before

installation, discharge yourself by touching a grounded bare metal surface to remove this

hazard. To avoid damage, do not touch the LED module.

Green Grounding Screw (C)

Outlet Box

Wire Connector (E)

Headless

Screw (H)

Mounting Plate

(A)

Lock Nut

(D)

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

Glass

Glass Holder

Headless screw

Ball Nut

Mounting Screw (B)

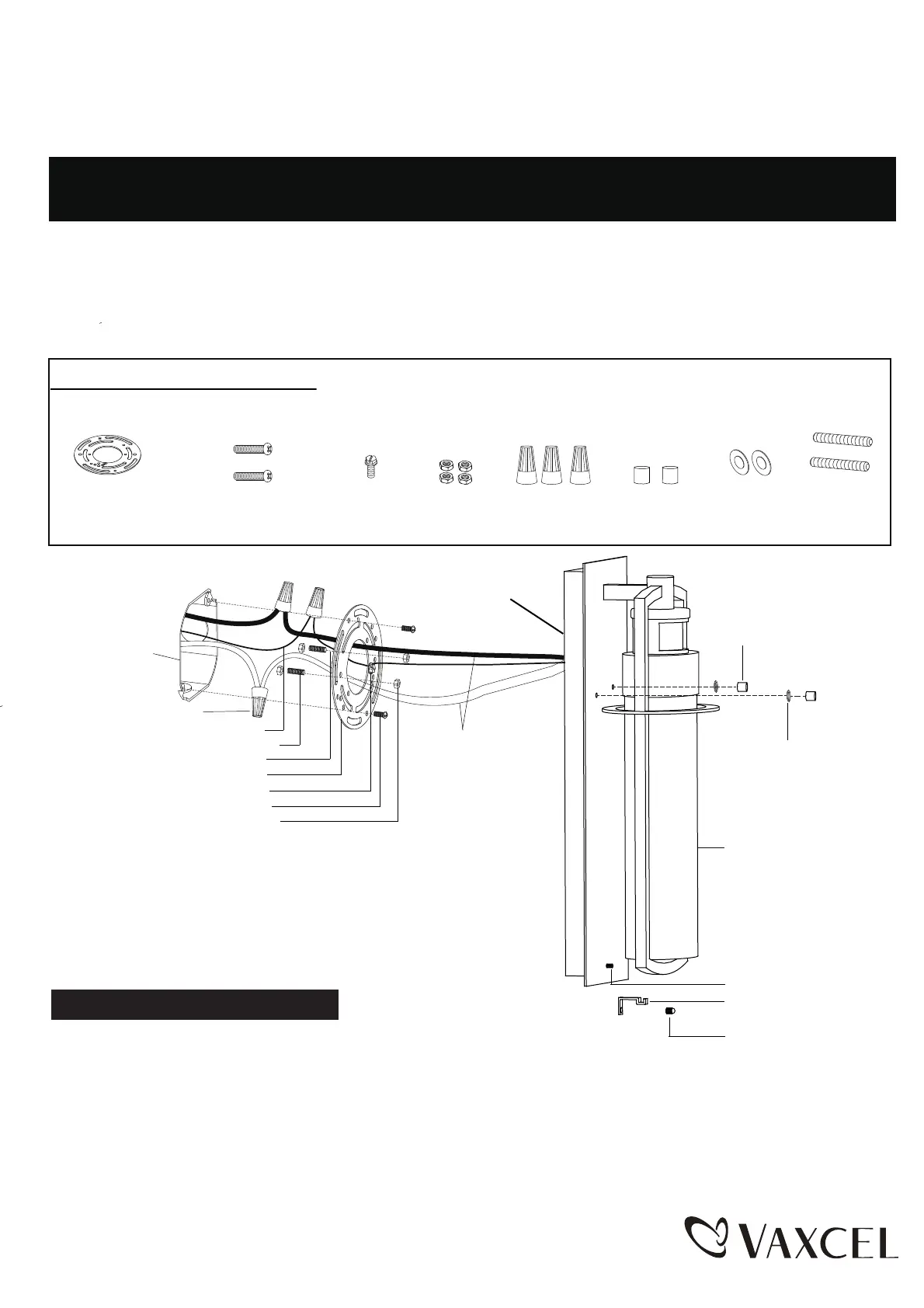

1. Thread two headless screws (H) through the mounting plate (A),

then secure them with four lock nuts (D) ( two on each side

of the mounting plate (A) ). Adjust the length of the headless screws (H) if necessary ).

Note: Make sure that the headless screws (H) are lined up horizontally, to ensure that

the fixture will be level.

2. Attach the mounting plate (A) to the outlet box by using two mounting screws (B).

Turn off the power at fuse or circuit box

Installation Steps
