Hardware Package (
included
):
Mounting Screw (B)Wire Connector (C) Bolt Nut (D)
Mounting Plate Unit (A)Rubber Pad (E)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0772
Page 1 / 2
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and mounting plate unit (A) from the backplate.
2. Attach mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
Max. 60W
Type T10 bulb
(not included)
Glass Shade
Glass Holder

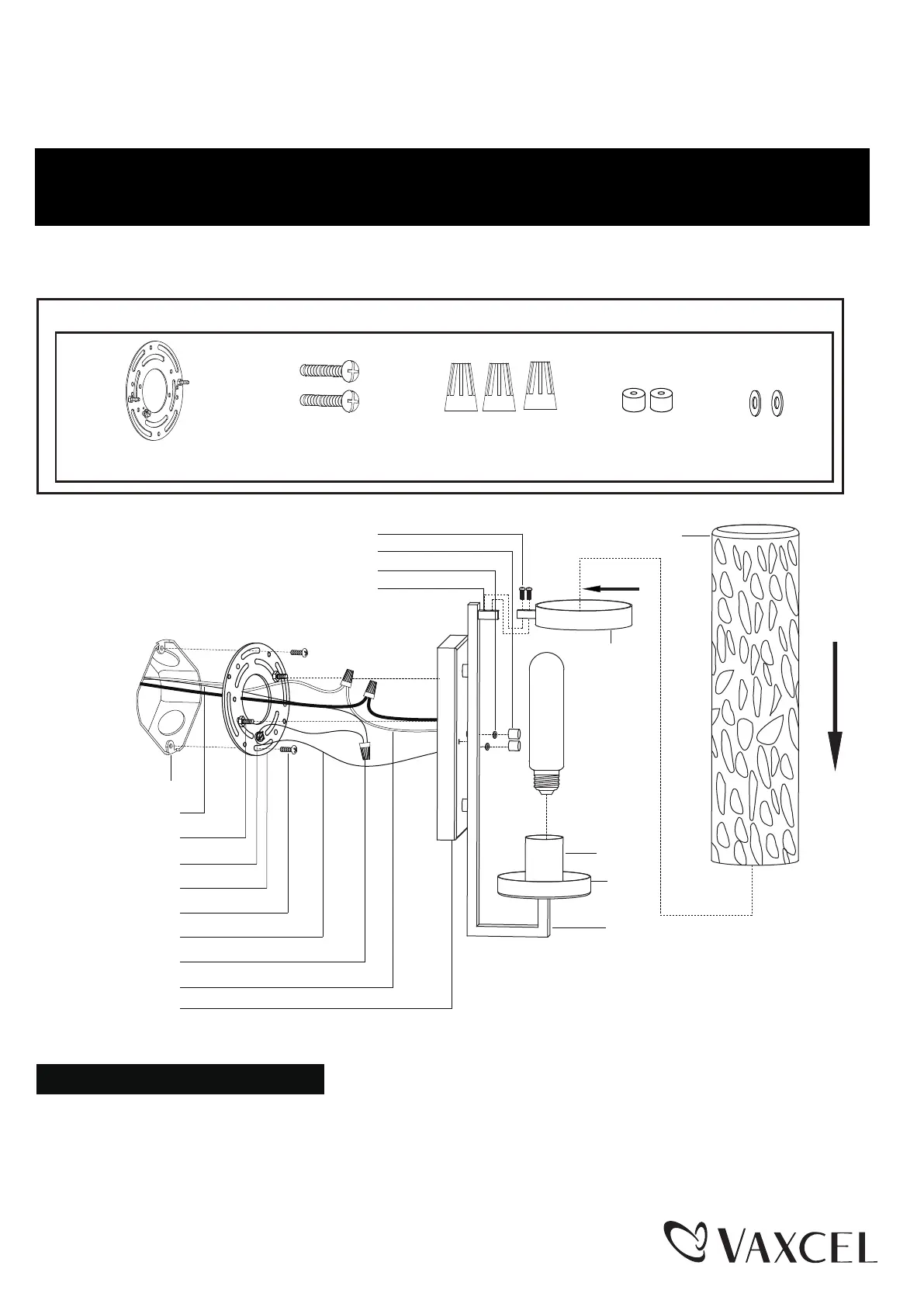

Socket
Lamp
Holder
Fixture
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Fixture Mounting Screw
Bolt Nut (D)
Set Screw
Rubber Pad (E)
Supporter
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
240719
