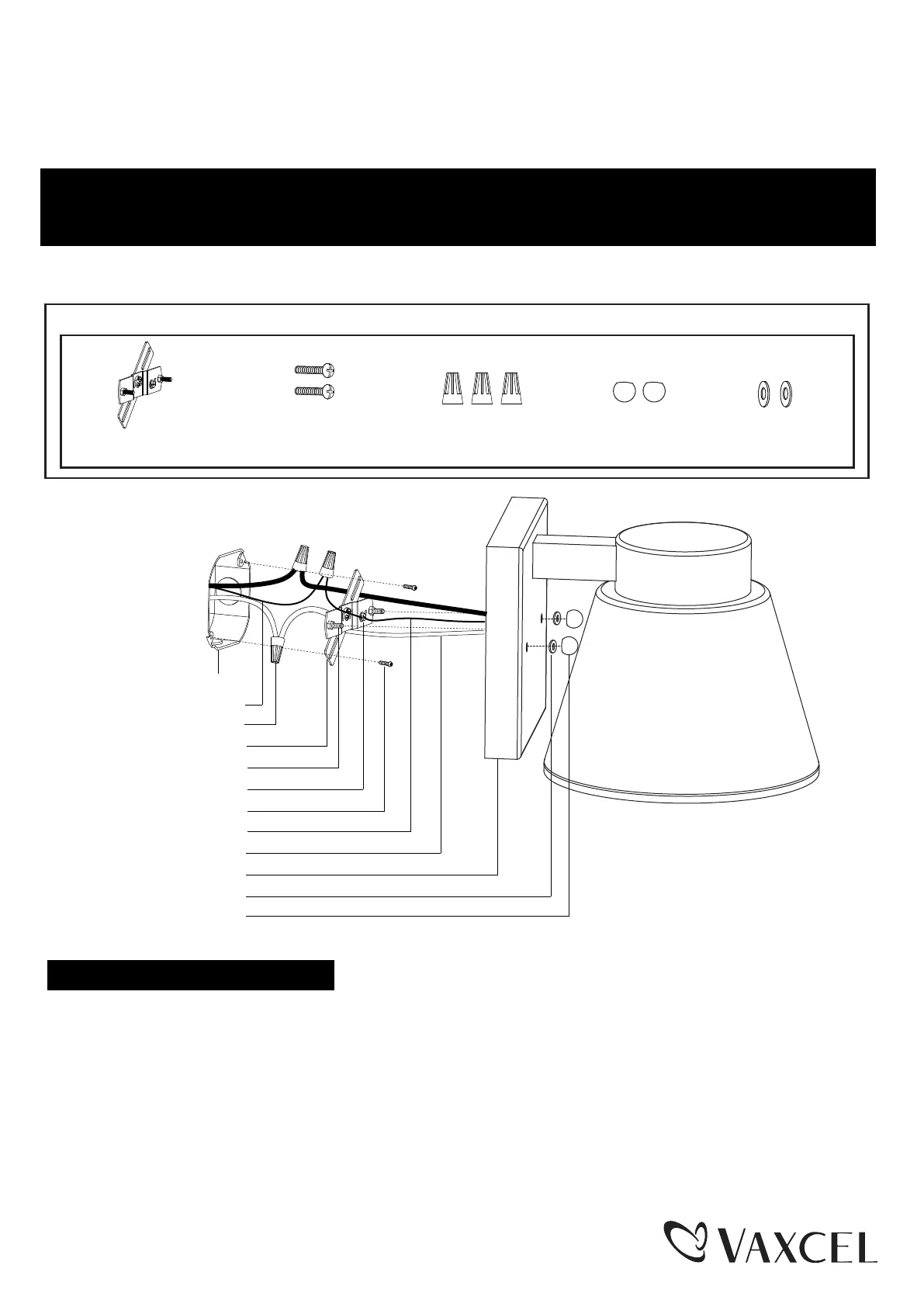

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0769
T
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
Page 1 / 2
Turn off the power at fuse or circuit box.
Installation Steps
1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and the crossbar unit (A) from the backplate.
2. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Rubber Pad (E)
Bolt Nut (D)
240719
