Green Grounding
Screw (C)
Headless
screw (H)
Mounting Screw (B)
Wire Connector (E)
Lock Nut (D)
Mounting Plate (A)
Ball Nut (F)
Back Plate
Ball Nut (F)
Rubber Pad (G)
Rubber Pad (G)
Hardware Package (included):
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0389 / T0420
180531
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Warning:LED electronics can be damaged by electro static discharge (ESD)shock. Before
installation, discharge yourself by touching a grounded bare metal surface to remove this
hazard. To avoid damage, do not touch the LED module.
Green Grounding Screw (C)
Outlet Box
Wire Connector (E)
Headless
Screw (H)
Mounting Plate
(A)
Lock Nut
(D)
House Grounding Wire
Fixture Grounding Wire
Fixture Wire
Glass
Glass Holder
Headless screw
Ball Nut
Mounting Screw (B)

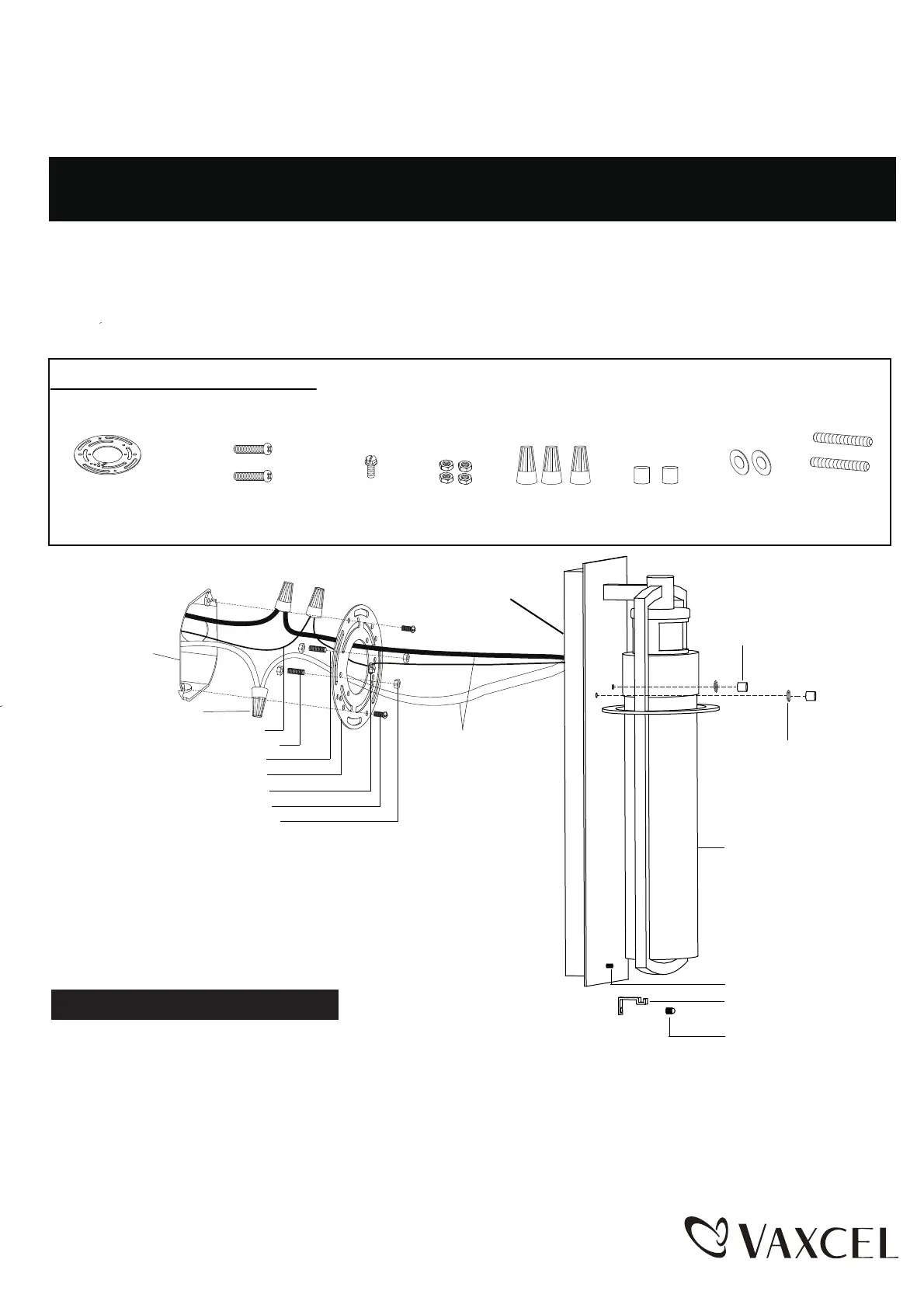

1. Thread two headless screws (H) through the mounting plate (A),
then secure them with four lock nuts (D) ( two on each side
of the mounting plate (A) ). Adjust the length of the headless screws (H) if necessary ).
Note: Make sure that the headless screws (H) are lined up horizontally, to ensure that
the fixture will be level.
2. Attach the mounting plate (A) to the outlet box by using two mounting screws (B).
Turn off the power at fuse or circuit box
Installation Steps
