ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

T0320

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

Features

1. Energy saving fixture.

2. Use the dim-to-bright illumination option where

you want some minimum illumination through out

the night, such as at your front entrance or garage

door. Use the dark-to-bright illumination option

where you do not need minimum brightness, such

as the backyard or back porch.

3. When in manual override mode, use wall switch

to keep the light ON till dawn.

161107

Mounting Screw (B)

Green Grounding

Screw (C)

Lock Nut (F)

Wire Nut (E)

Ball Nut (G)

Rubber Pad (H)

Cross Bar (A)

Headless

Screw (D)

Important to Know

1. Read all instructions carefully before installation and

operation.

2. If you are not familiar with state and local electrical codes,

it is recommended that you consult with a qualified

electrician.

3. Before installation, shut off power at the main fuse or

circuit breaker box. Be aware that simply turning off the

wall switch is not sufficient to prevent an electrical shock.

4. This fixture requires a 120 VAC, 60 Hz power source.

5. Do not attempt to take the lantern apart; there are no

serviceable parts inside.

6. To avoid sensor damage by lightning or electrical surge,

make sure the grounding wire is securely connected.

7. For general safety and to avoid any possible damage to

the sensor, be sure the power is switched "off" before

replacing the bulb.

8. Compatible with LED dimmable bulb .

Maximum Wattage: 60W Incandescent Bulb or 20W

Dimmable LED Bulb.

Work Temperature: -4°F~104°F

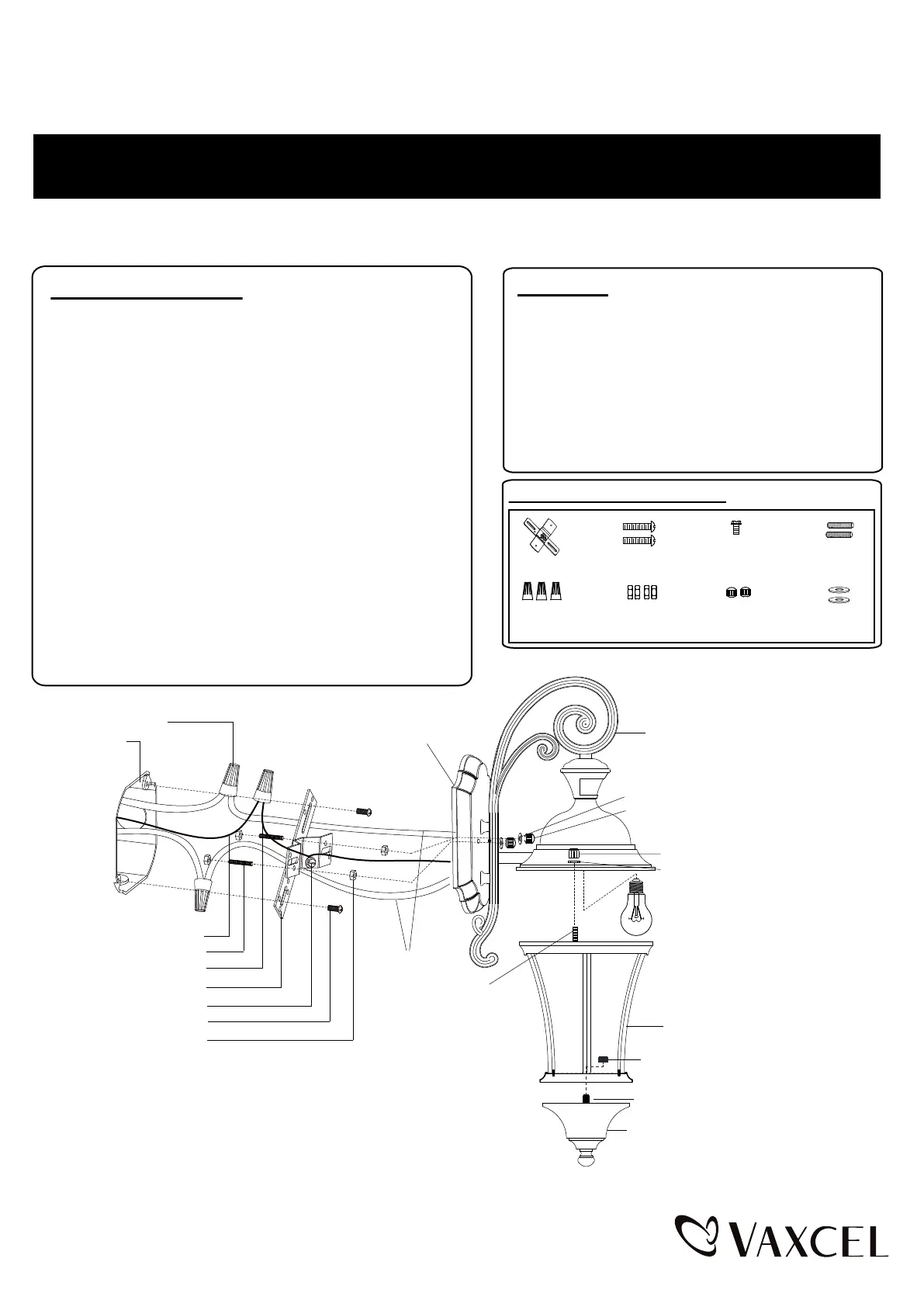

Fixture

Back plate

Hardware Package (included):

Ball Nut (G)

Bolt Nut

Rubber Pad (H)

Rubber Pad

Type A Max. 60W Bulb

(not included)

Green Grounding Screw (C)

Outlet Box

Wire Nut (E)

Headless Screw (D)

Cross Bar (A)

Mounting Screw (B)

Lock Nut (F)

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

Threaded Pipe

Fixture Body

Threaded Pipe

Coupling

Cover Assembly
