ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
OF33412
Installation Steps
1. Thread the two screws to the cross bar, and then secure with two lock nuts.(You can adjust the
length of the screws if necessary.)
2. Attach the cross bar to the ceiling box by using two mounting screws.
3. Make wire connections with wire nuts:
---Black wire from fixture to black wire from power source.
---White wire from fixture to white wire from power source.
---Attach the grounding wire and house grounding wire to the cross bar with a green grounding
screw.
Carefully tuck wires back into the ceiling box.
4. Attach the plate to the cross bar by inserting the two screws, and then secure with the bolt nuts.
5. Install bulbs. (Please do not exceed the maximum capacity which is recommended on the package.)
6. Place the bottom glass into the metal frame, and then secure it with four middle clips which on
the bottom of the metal frame.
7. Place the side glasses into the metal frame, and then press the clips which on the top of the
metal frame and the side clips which on the bottom of the metal frame to fix them.
NOTE: Make sure the silhoutte is outward and do not reverse while assembling the side glasses.
8. Attach the metal frame to the plate, and then secure it with two set screws.
9. Turn power on at fuse or circuit box.

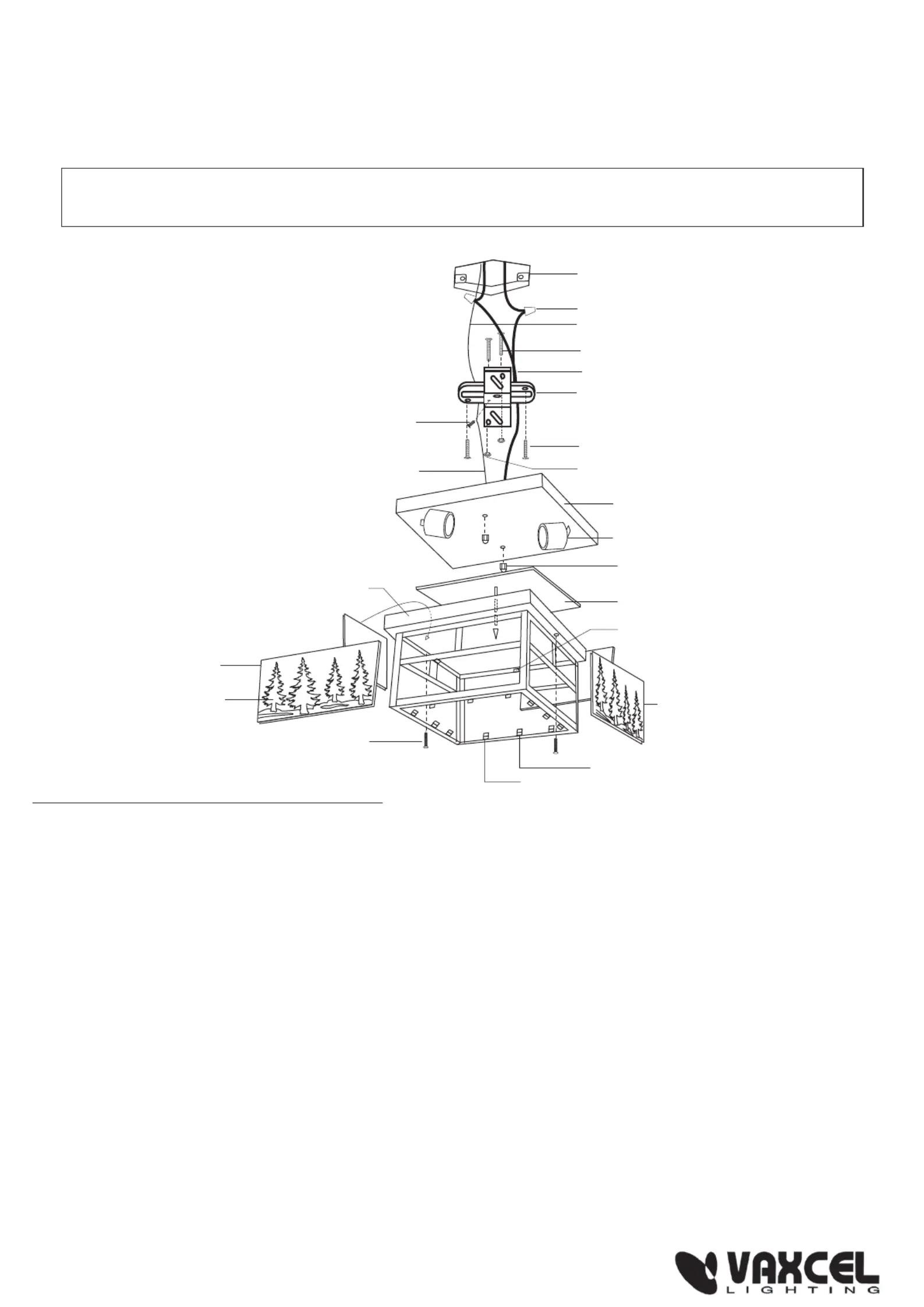

Side Glass
Silhoutte
Side Glass
Middle Clip
Side Clip
Metal Frame
Bottom Glass
Clip
Set Screw
Lampholder
Plate
Bolt Nut
Ceiling Box
Mounting Screw
Fixture Wire
Lock Nut
Grounding Wire
Green Grounding Screw
House Grounding wire
Wire Nut
Screw
Cross Bar
