Pagina 1/6
Document Number 411-0068-31 Rev B – October 2023
Installation Guide for the
EasyIP PCC and PCC Mini
Four-Camera Joystick Controllers
Overview
This guide provides information about:
n
EasyIP PCC four-camera joystick controller, 999-57755-000 (worldwide)
n
PCC Mini four-camera joystick controller, 999-57750-000 (worldwide)
About this guide
This guide covers:
n
Controls and connections
n
Tips for a successful installation
n
Connection diagram
n
Equipment power-on
Complete product information is available in the Complete Manual
for the EasyIP PCCFour-Camera Joystick Controller.
Features
n
Simple control of up to four cameras:
o
EasyIP PCC for EasyIP cameras
o
PCC Mini for other Vaddio cameras
n
Three-axis Hall effect joystick
n
Illuminated pushbuttons for camera selection
n
Web interface for operation and administrative control
n
Use with the Vaddio Device Controller or manage from your PC
n
Your EasyIP Switch powers the EasyIP PCC; a PoE+ mid-span power injector powers the PCC Mini

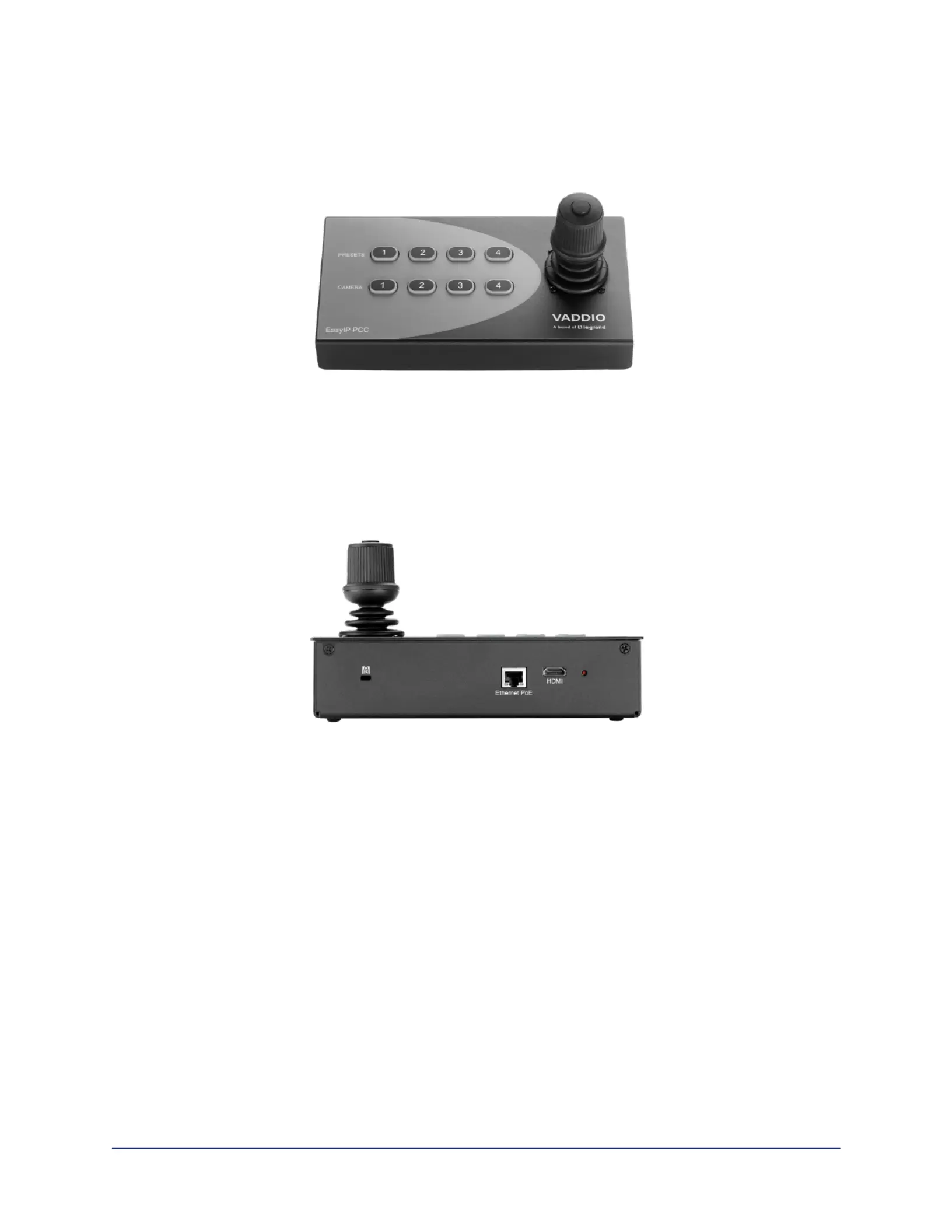

A quick look at the camera controller
The EasyIP PCC and PCC Mini look identical except for the model information.
Camera buttons (lower row)– Select the camera to use for the next shot (the preview camera). The
buttons are only illuminated if they are assigned to cameras.
Preset buttons (upper row) – Use these buttons to select presets 1 through 4 on the selected preview
camera. The buttons are only illuminated if the corresponding presets have been stored on the camera.
Joystick – Left/right to pan, forward/back to tilt, twist to zoom.
Kensington lock slot – Keep your joystick from adventuring away into the wide, wonderful world.
PoE+ Gigabit Ethernet port – Power and network connectivity, including access to cameras.
Courtesy HDMI output – Video from the camera you are currently controlling.
IP button – Press to overlay the device's IP address on the HDMI video output display.
Installation Guide for the EasyIP PCC Four-Camera Joystick Controller
2
Installation
This section covers how to install and connect the product. It also provides safety information and other
guidance related to installing the product.
Note
This product is intended for installation and use only in environments where all RS-232 and PoE/PoE+
connections originate within the building.
Or in UL's preferred phrasing...
PoE-type networks connected to this equipment are for intra-building use only and should not
be connected to lines that run outside the building in which this product is located.
Don’t void your warranty!
Caution
This product is for indoor use. Do not install it outdoors or in a humid environment without the appropriate
protective enclosure. Do not allow it to come into contact with any liquid.
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of
these things happen, return it to Vaddio for safety and functional testing.

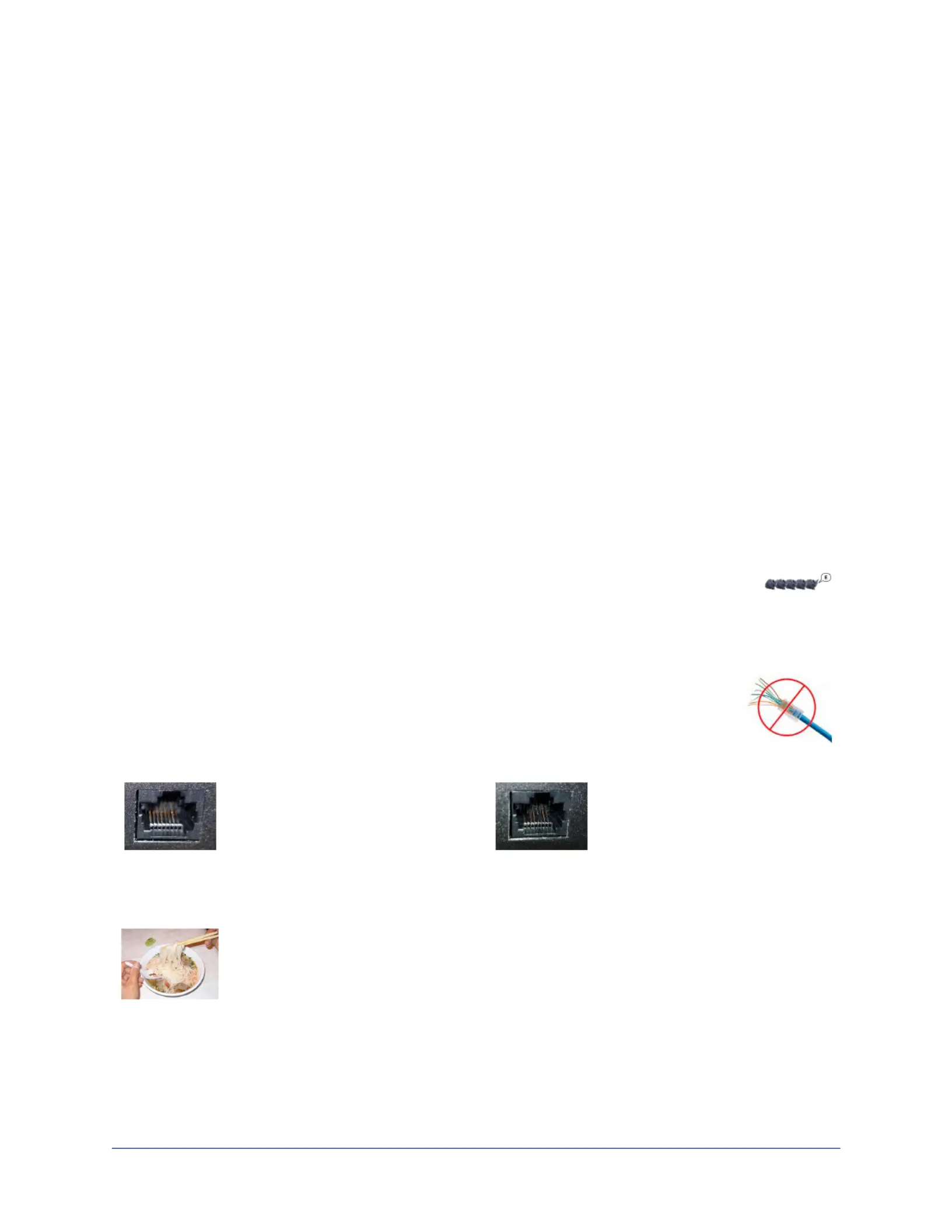

Cabling notes
Best practices for making cables:
n
Use Cat-5e or better cable. We recommend shielded cabling if the cables will be coiled,
run tightly with other cables, or placed close to sources of electromagnetic interference
such as power lines or fluorescent light fixtures.
n
Use high-quality standard RJ-45 connectors; 568B termination recommended.
n
Use a high-quality crimping tool.
Caution
When building cables for Vaddio products, do not use pass-through RJ-45 connectors. If
they are crimped incorrectly, they can cause intermittent connections and degrade
signal quality. Incorrectly crimped pass-through connectors can also damage the
connectors on the product, which will void your warranty.
Intact – will make reliable contact
with the cable connector
Damaged – Bent contact fingers
will NOT make reliable contact
with the cable connector
Caution
Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in
equipment damage and will void the warranty.
Pro tip
To prevent tragic mishaps, label both ends of every cable.
3
Installation Guide for the EasyIP PCC Four-Camera Joystick Controller
