UNiKA PRO-USB Handleiding
UNiKA
Niet gecategoriseerd
PRO-USB
Bekijk gratis de handleiding van UNiKA PRO-USB (12 pagina’s), behorend tot de categorie Niet gecategoriseerd. Deze gids werd als nuttig beoordeeld door 4 mensen en kreeg gemiddeld 4.6 sterren uit 2.5 reviews. Heb je een vraag over UNiKA PRO-USB of wil je andere gebruikers van dit product iets vragen? Stel een vraag
Pagina 1/12
PRO
USB
USER MANUAL
6F, No.168, Xin-Hu 2nd Rd.
Nei-Hu District, Taipei City. 11494.
T a i w a n , R
.
O . C .
+886 2 27933017
+886 2 27928264
info @u ni ka pr o. co m
UN iK A El ec tr on ic C o. , Lt d.
w w w . u n i k a p r o . c o m
PRO
SERIES
AUDIO
INTERFACE
DESIGN & MADE IN TAIWAN
USB AUDIO DIRECT BOX
Index
GENERAL PRECAUTION BEFORE USE
PRODUCT OVERVIEW
CAUTION
PARAMETER TEST CONDITIONS
FEATURES
CONNECT TO COMPUTER
CONNECT TO MOBILE PHONE
APPEARANCE PARTS & FUNCTIONS
CT7601SR USB/DSD AUDIO BRIDGE
CS43131 DIGITAL AUDIO CONVERTER & HA
ISO TRANSFORMER SCHEMATIC
TYPE-C PLAYBACK
MONITOR
TYPE-C SIGNAL SOURCE ACTIVE INDICATOR
ELIMINATING GROUND LOOP NOISE
SYSTEM CONNECTION GUIDE
SPECIFICATIONS
UNiKA
PRO USB
User Manual
1
GENERAL PRECAUTION BEFORE USE
Thank you for purchasing the UNiKA PRO SERIES AUDIO INTERFACE. Before using,
please read this manual carefully and pay attention to every detail that you must pay
attention to. If you use a mixer to connect to this interface, please turn off the mixer
power and +48V phantom power before connecting, and then turn on the power and
phantom power after inserting the signal cables. For passive models, please do not
turn on the phantom power to avoid leakage or damage the equipment.
If using a model with a volume knob, turn the volume knob to the minimum. During
use, please do not plug or unplug the wires arbitrarily to avoid signal loss. Please
refer to the following instructions for the soldering method of the plugs to ensure the
expected level and keep the signal smooth.
If you need further installation or operation guidance, please directly contact UNiKA's
dealer or distributor, or write to the following mail address for help:
info@unikapro.com
PRODUCT OVERVIEW

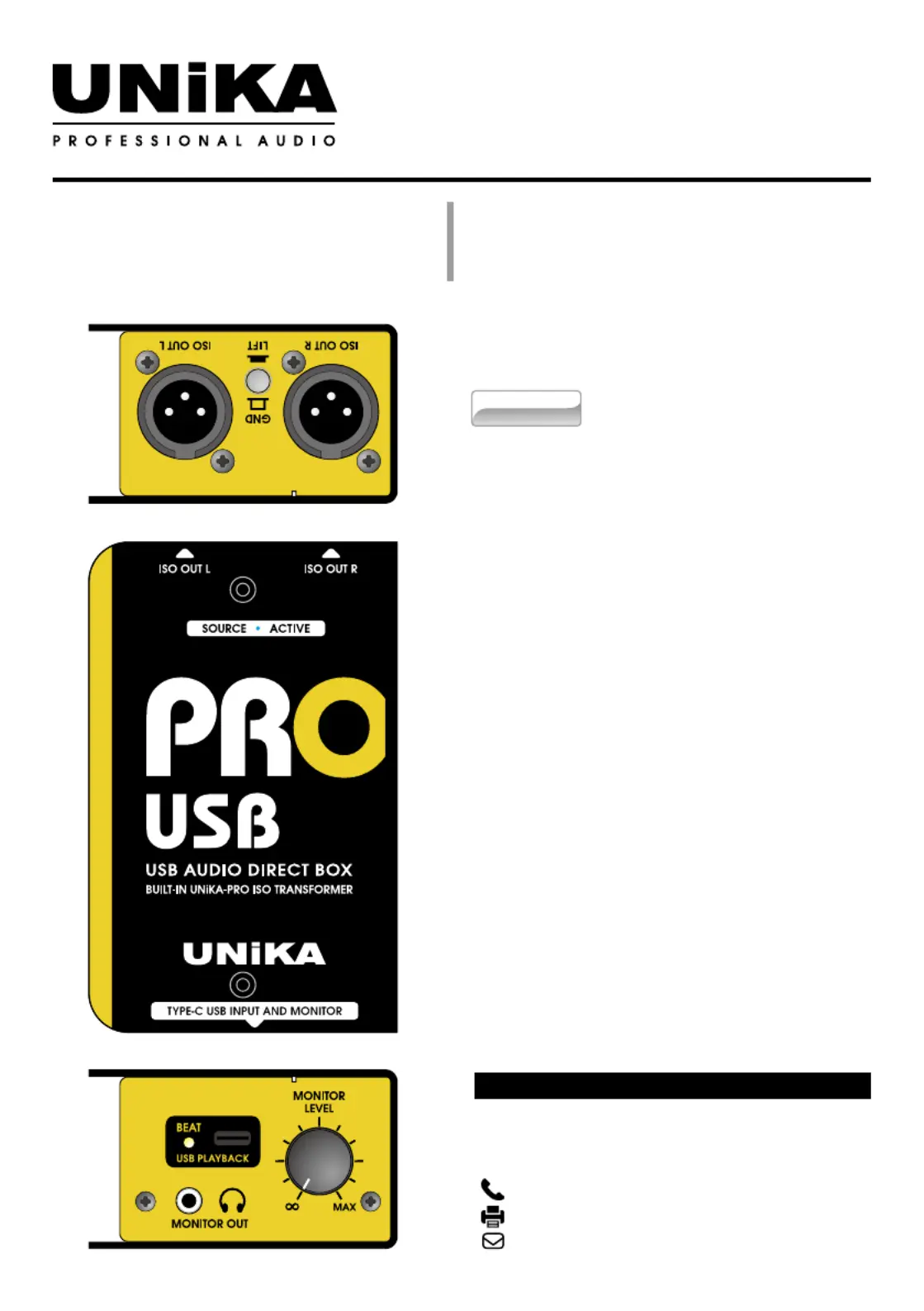

PRO USB is a passive DI box specially designed for mobile devices. It is compatible
with Windows, Mac OSX, iOS and Android systems. It does not require any drivers
to achieve plug and play. It can be used as a signal impedance matcher for mobile
devices and built-in headphone amplier and volume control.
PRO USB is the rst to use TYPE-C as the terminal to connect to mobile phone and computer.
The USB audio decoder combines Com True CT-7601SR and Cirrus Logic CS-43131
to achieve 192KHz/32bit performance, and are compatible with DSD digital formats
and all common lossless and compressed music formats.
The PRO USB has a pair of built-in UNiKA-PRO
TM
EI30A10E 1+1:1+1 isolation
transformers. The transformer has a special copper foil layer and a dedicated
grounding layer, which can ensure the high signal/noise ratio and dynamic sound of
the device, and avoid unnecessary Leakage caused by radio frequency interference,
grounding interference and potential difference. PRO USB is especially suitable for
mobile phone, computer and media player. It converts high-impedance signals into
low-impedance balanced signals, which is convenient for extending the wiring distance
and blocking interference.
PRO USB has built-in mini TRS headphone monitor output and monitor volume control,
which can drive 16Ω~600Ω headphones.
2
UNiKA
PRO USB
User Manual
FEATURES
• Built-in UNiKA-PRO
TM
EI30A10E isolation transformer for each channel
• Built-in CT7601 USB bridge and CS43131 DAC with headphone amplier
• 32bit convert rate and 192KHz over sampling
• Compatible with Windows, Mac OS, iOS and Android systems.
• Compatible with DSD digital formats and all common lossless and compressed
music formats.
• Mini TRS jack used to connect earphone or headphone with volume control
• Built-in Type-C USB digital audio input connector
• The output is equipped with a GND/LIFT switch
PARAMETER TEST CONDITIONS
In the development and manufacturing process, Audio Precision's 2700 series and 500
series are used to test and verify electrical characteristics.
CAUTION
This product has undergone rigorous inspection before leaving the factory. If
customers encounter failures during use, please contact your local dealer or distributor
for replacement or repairing, do not disassemble the case or replace parts by yourself,
which will invalidate the warranty.
For details, please refer to the warranty regulations in the enclosed warranty card, and
ll in the details, and get a valid stamp or signature of the dealer or distributor.
