Thank you for purchasing the UNiKA PRO SERIES AUDIO INTERFACE. Before using,
please read this manual carefully and pay attention to every detail that you must pay
attention to. If you use a mixer to connect to this interface, please turn off the mixer
power and +48V phantom power before connecting, and then turn on the power and
phantom power after inserting the signal cables. For passive models, please do not
turn on the phantom power to avoid leakage or damage the equipment.
If using a model with a volume knob, turn the volume knob to the minimum. During
use, please do not plug or unplug the wires arbitrarily to avoid signal loss. Please
refer to the following instructions for the soldering method of the plugs to ensure the
expected level and keep the signal smooth.
If you need further installation or operation guidance, please directly contact UNiKA's
dealer or distributor, or write to the following mail address for help:
info@unikapro.com
PRO BT5 is a passive DI box specially designed for playing back music from wireless
mobile devices and built-in Bluetooth Ver.5.0 A2DP DUAL MODE module. The
balanced output level will not be affected by the potentiometer. The output side is
equipped with a TYPE-C USB terminal which requires a 5VDC power adaptor, power
bank or USB port from computer to power the BT5 such as the power supply method
of the general mobile device. BT-5 is excluding the TYPE-C cable and power adaptor.
The built-in Bluetooth module has BR/EDR dual-mode control function, A2DP stereo
playback mode and BLE energy-saving mode. And using Qualcomm chips and DA/
DSP, audio converting and sampling rate are 16bit and 44.1KHz.
The PRO BT5 has a pair of built-in UNiKA-PRO
TM
EI30A10E 1+1:1+1 isolation
transformers. The transformer has a special copper foil layer and a dedicated grounding
layer, which can restore the high signal/noise ratio and dynamic sound of the device, and
avoid unnecessary Leakage caused by radio frequency interference, grounding interference
and potential difference.
PRO BT5 is especially suitable for mobile phones, computers and any of Bluetooth
music players. It converts wireless signals into low-impedance balanced signals, which
is convenient for extending the wiring distance and blocking interference.
PRO BT5 has built-in mini TRS headphone monitor output and monitor volume control,
which can drive 16Ω~300Ω headphones to be allowing users to monitor the content
that needs to be played in advance.
Note: Since the device does not include charging identification IC, some of power
bank with QC function may not be available or may stop supplying power halfway
because the IC is not detected.
On the other hand, the power bank with automatic stand by mode is not recommended.
2

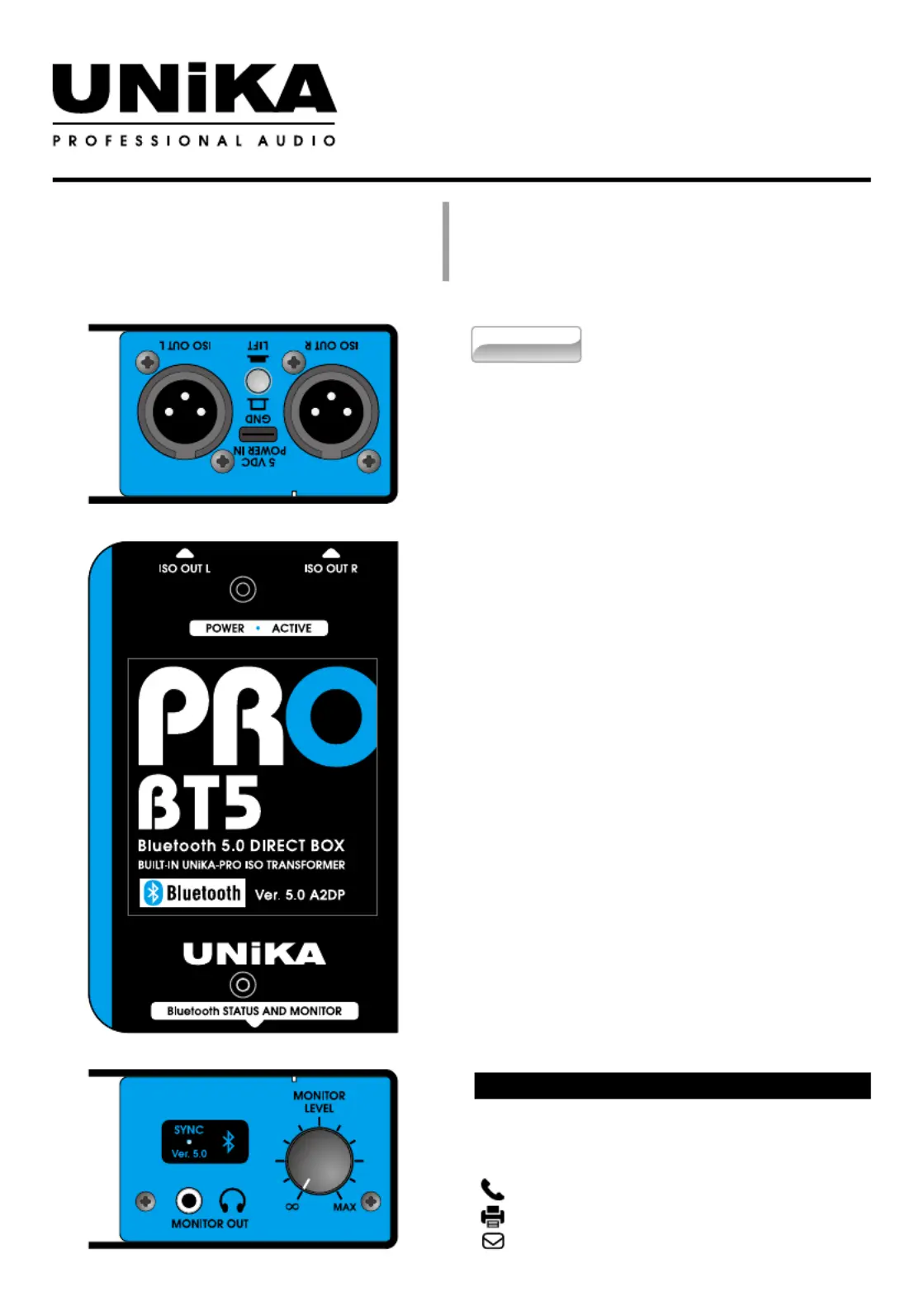

UNiKA
PRO BT5
User Manual
This product has undergone rigorous inspection before leaving the
factory. If customers encounter failures during use, please contact
your local dealer or distributor for replacement or repairing, do
not disassemble the case or replace parts by yourself, which will
invalidate the warranty.
For details, please refer to the warranty regulations in the enclosed
warranty card, and fill in the details, and get a valid stamp or
signature of the dealer or distributor.
Note: There is a part of acrylic materials on the surface of the device,
which is to allow the Bluetooth signal to spread well without the need
for an external antenna. When in use, please do not cover any metal
objects on it, so as not to affect the quality of the reception.
FEATURES
• Built-in UNiKA-PRO
TM
EI30A10E isolation transformer for each channel
• Built-in headphone amplier with independent mini TRS jack and volume control
• 24bit convert rate and 48KHz over sampling
• Compatible with Windows, Mac OS, iOS and Android systems
• Ver 5.0 Bluetooth module with BR/EDR dual mode control and A2DP/AVRCP/HFP/
HSP/HOGP/PBAP/SPP proles support and BLE mode
• Type-C USB power supply terminal to be supplied power by external 5VDC power
adaptor, power bank or USB port from computer.
• The output is equipped with a GND/LIFT switch
CAUTION
PARAMETER TEST CONDITIONS
In the development and manufacturing process, Audio Precision's 2700 series and 500
series are used to test and verify electrical characteristics.

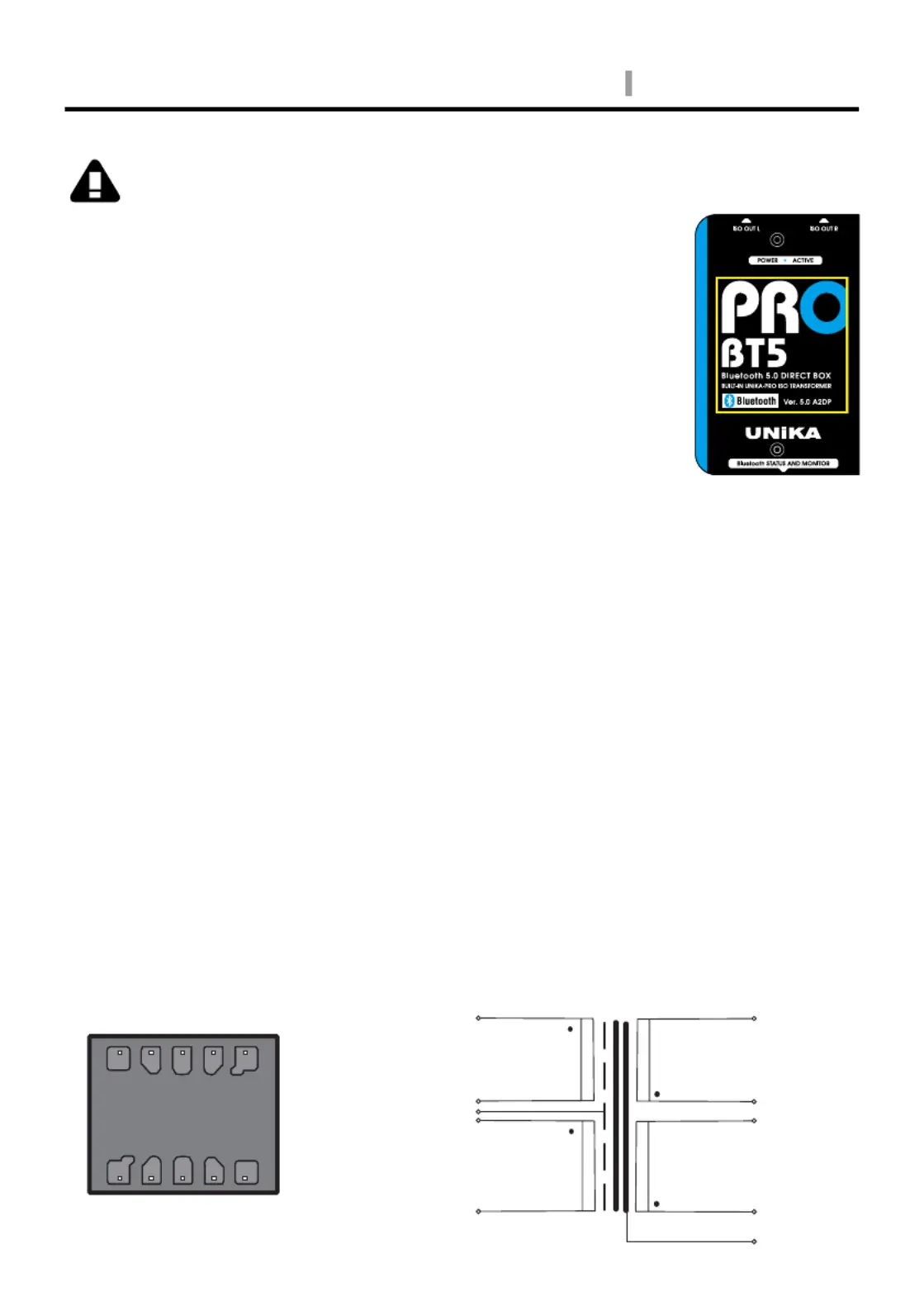

ISO TRANSFORMER SCHEMATIC
1 5
10 6
UNiKA-PRO
TM
EI30A10E
Screen
Secondary
Cooper foil/
Core
Primary
3
1
2
4
5
6
7
8
9
10
