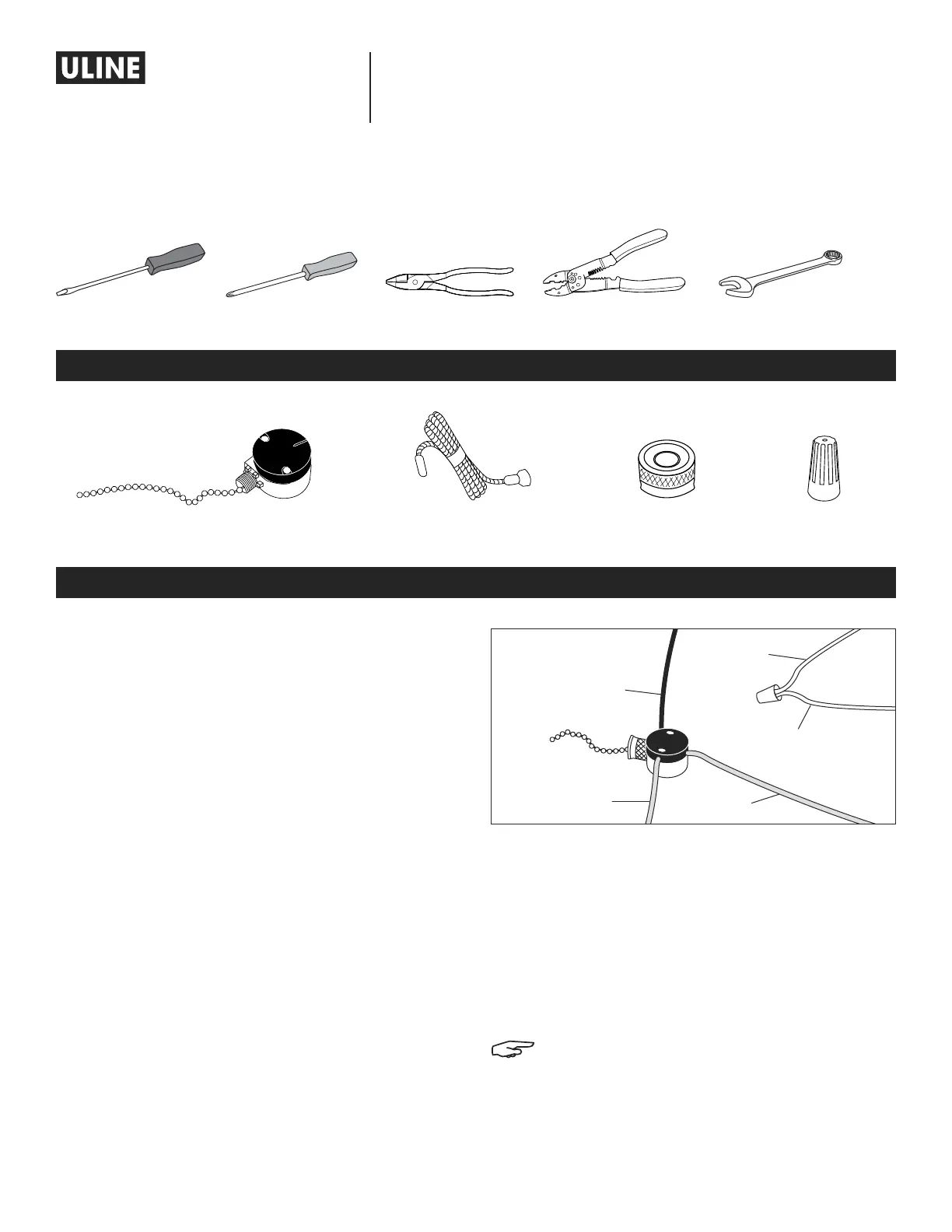

PAGE 1 OF 6 1025 IH-6663

PULL CHAIN SWITCH KIT

1-800-295-5510

uline.com

H-6663

Para Español, vea páginas 3-4.

Pour le français, consulter les pages 5-6.

PARTS

STATIONARY PEDESTAL FAN

3-Port Electrical Chain Switch x 1Rope Pull Chain Extension x 1Knurled Screw x 1Wire Nut x 1

REMOVAL OF BAD CHAIN SWITCH

1. Unplug fan from power source.

2. Remove electrical box cover on motor with a

1/4" nut driver or flathead screwdriver.

3. Remove chain switch nut with fingers or pliers by

softly turning. Save the knurled screw knob, as it may

be used during installation of new switch.

4. Using a wire cutter, cut the existing wires connected

to the bad chain switch close to the switch. This

ensures the wires are still long enough to connect

the new switch.

CONNECTING NEW CHAIN SWITCH

1. Strip about 1/4" of insulation off of wire ends for a

clean connection to new switch.

2. Connect white wire from the motor and white wire

from power cord together with a wire nut. If the

existing motor already has white wires connected,

skip this step and leave white wires connected.

(See Figure 1)

3. Push orange wire from motor into port number one

(high speed). It should lock into place

4. Push blue wire from motor into port number two

(low speed). It should lock into place.

5. Push black wire from power cord to port "L" (line).

It should lock into place.

6. Reassemble fan by reversing steps 1-4 of the

removal instructions.

NOTE: Lines to orts one and two are

interchangeable. Ports one and two control

speeds and the above ainstructions explain

how to wire the replacement switch to factory

specifications, but can be changed as

needed.

Black wire from

power cord

Blue wire

from motor

Orange wire

from motor

White wire

from motor

White wire from

power cord

Figure 1

TOOLS NEEDED

Flathead ScrewdriverPliersWire CutterPhillips Screwdriver3/8" Wrench
