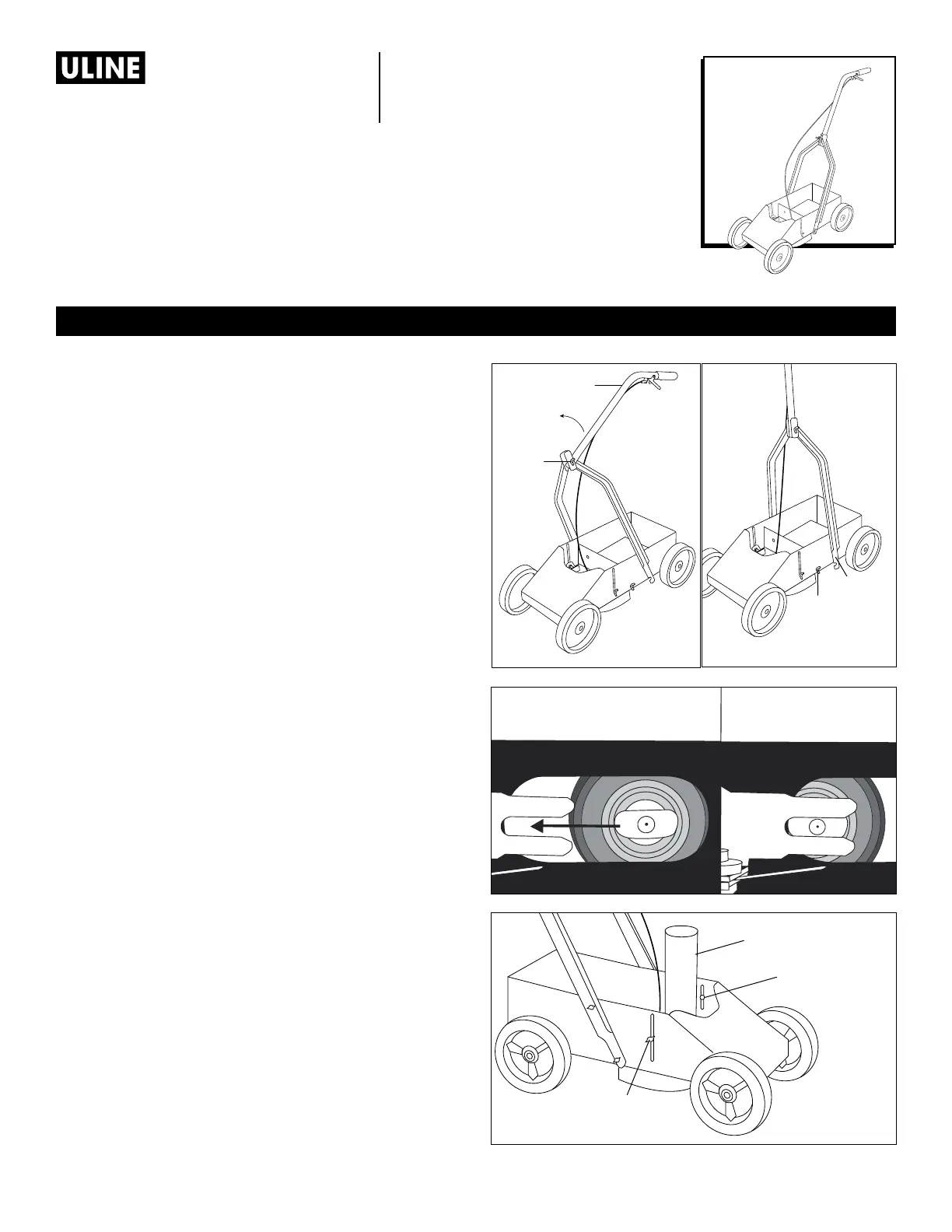

PAGE 1 OF 3 0621 IH-5640
STRIPING PAINT MACHINE
1-800-295-5510
uline.com
H-5640
ASSEMBLY
1. Pull handle upright and tighten wing nut in center of
handle until handle locks into place. (See Figure 1a)
2. Loosen wing nuts on sides of machine. (See Figure 1b)
3. Slide handle around wing nuts on sides of machine.
(See Figure 1b)
4. Tighten wing nuts on sides of machine until handle is
secure.
LOADING AND OPERATION
1. Shake aerosol can vigorously for one minute and
occasionally during use.
2. Turn aerosol can upside down and place in can
holder. Make sure long side of the spray tip is
parallel to axle. (See Figure 2a) Then, slide paint can
toward center of cart where it will snap into place.
(See Figure 2b)
3. Adjust line width by loosening wing nuts and raising
or lowering can holder. Raise to make line wider,
lower to make narrower. (See Figure 3)
4. Push machine and squeeze hand lever to activate
paint spray.
5. To remove spray can, slide can toward side of
machine and lift out.b
ASSEMBLY AND OPERATION
Aerosol
Can
Wing
Nut
Wing
Nut
Figure 3
Figure 1a
Wing
Nut
Wing
Nut
Handle
Handle
Figure 1b
Para Español, vea página 2.
Pour le français, consulter la page 3.
Figure 2bFigure 2a
