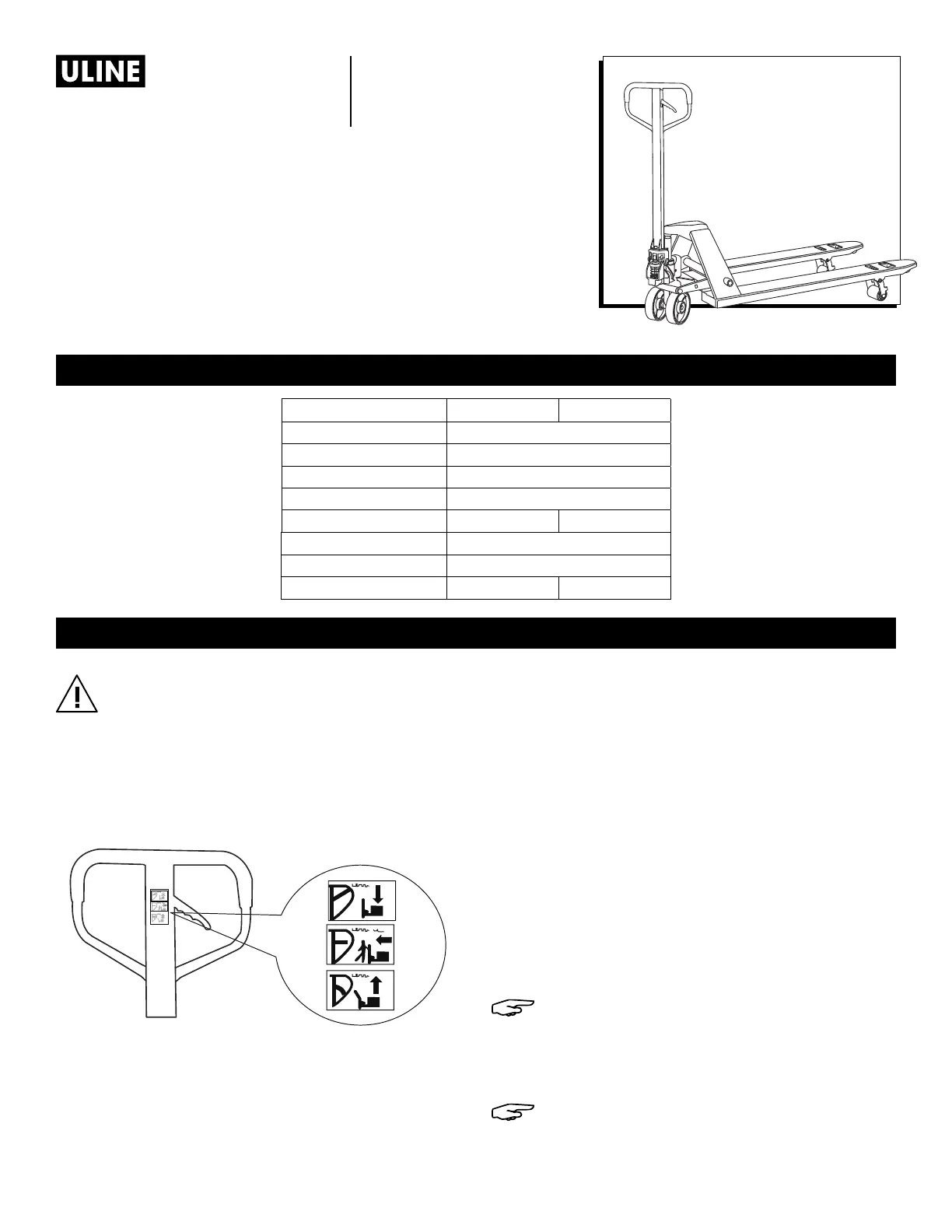

PAGE 1 OF 9 0325 IH-3762

H-3762, H-3763

QUICK-LIFT

PALLET TRUCK

1-800-295-5510

uline.com

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the

control lever which can be set in three positions.

(See Figure 1)

- LOWER = to lower the forks

- NEUTRAL = to move the load

- RAISE = to raise the forks

1. If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until

pumping the handle does not raise the forks and

the NEUTRAL position functions correctly.

2. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counterclockwise until

the forks do not lower.

3. If the forks do not descend when the control lever is in

the LOWER position, turn the setting screw clockwise

until raising the control lever lowers the forks. Then

check the NEUTRAL position as per steps 1 and 2.

4. If the forks do not lift while pumping in the RAISE position,

turn the setting screw counterclockwise until the forks

elevate while pumping in the RAISE position. Then check

the NEUTRAL and LOWER position as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

NOTE: When the load exceeds 330 lbs., the

hydraulic system automatically switches to

normal operation.

OPERATION

TECHNICAL DATA

Figure 1

MODELH-3763H-3762

Capacity4,400 lbs.

Max. Fork Height7.5"

Min. Fork Height3.0"

Fork Length48"

Overall Fork Width27"21"

Fork Wheel Diameter3" Polyurethane

Steering Wheel Diameter7" Polyurethane

Net Weight188 lbs.178 lbs.

Para español, vea páginas 4-6.

Pour le français, consulter les pages 7-9.
