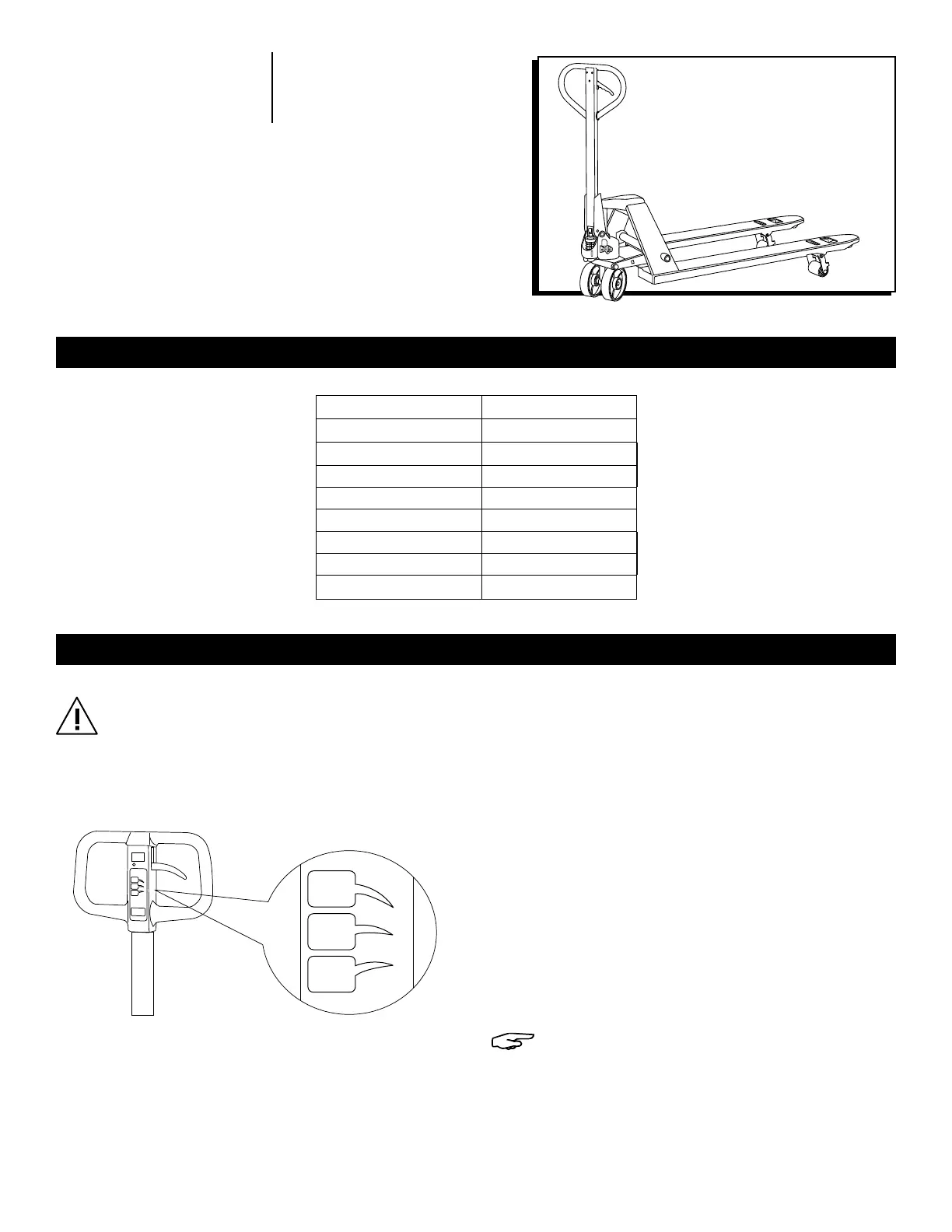

PAGE 1 OF 9 0325 IH-2917

π H-2917

ADJUSTABLE

PALLET TRUCK

1-800-295-5510

uline.com

OPERATION

TECHNICAL DATA

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the control

lever, which can be set in three positions.

(See Figure 1)

- UP = to raise the forks

- NEUTRAL = to move the load

- DOWN = to lower the forks

1. If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until

pumping the handle does not raise the forks and the

NEUTRAL position functions correctly.

2. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counterclockwise until

the forks do not lower.

3. If the forks do not descend when the control lever is

in the DOWN position, turn the setting screw clockwise

until raising the control lever lowers the forks. Then

check the NEUTRAL position as per steps 1 and 2.

4. If the forks do not lift while pumping in the UP position,

turn the setting screw counterclockwise until the forks

elevate while pumping in the UP position. Then check

the NEUTRAL and DOWN position as per steps 1, 2

and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

Figure 1

UP

DOWN

N

Para Español, vea páginas 4-6.

Pour le français, consulter les pages 7-9.

MODELH-2917

Capacity5,500 lbs.

Max. Fork Height7.7"

Min. Fork Height3.0"

Fork Length45½"

Overall Fork Width21-27"

Fork Wheel Diameter3" Polyurethane

Steering Wheel Diameter7" Polyurethane

Net Weight204 lbs.
