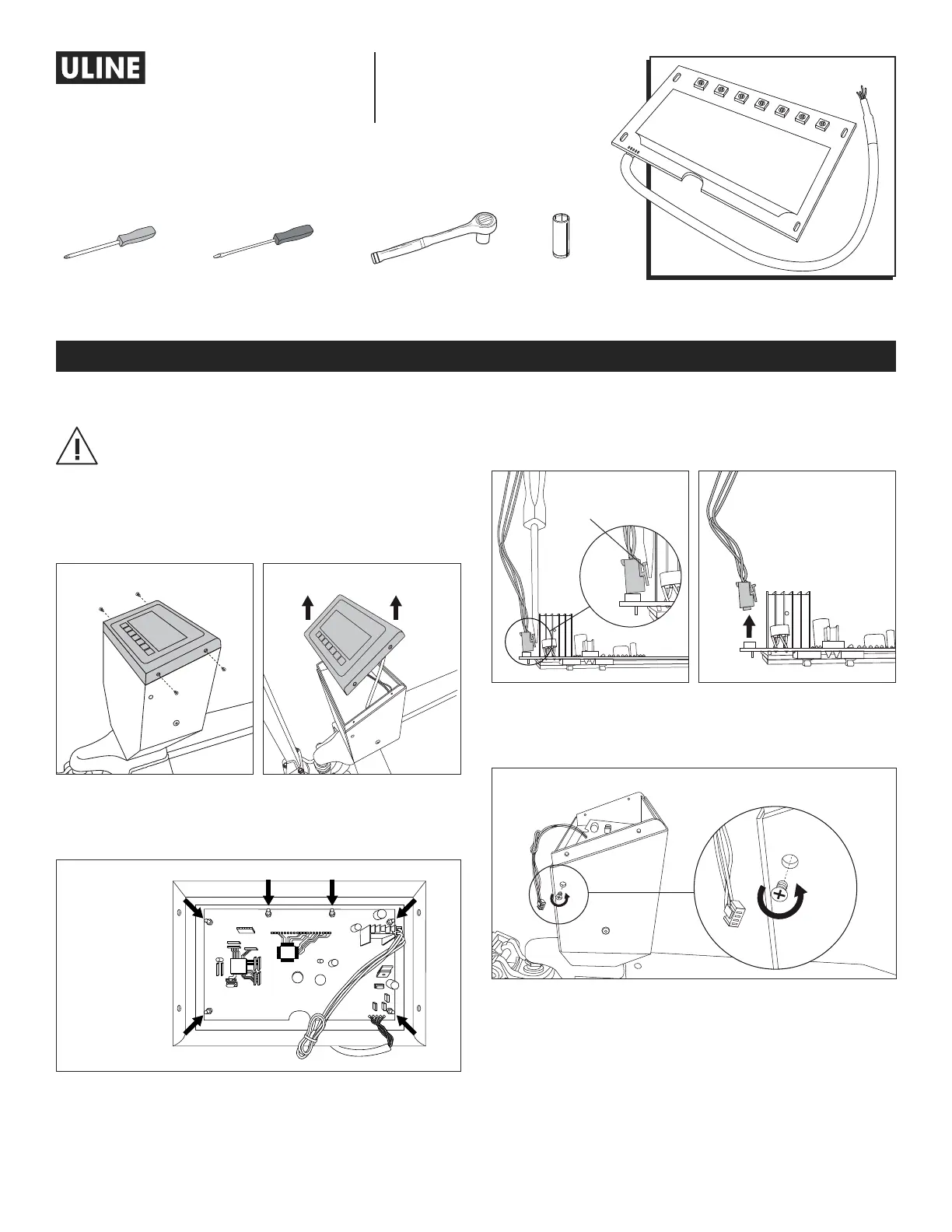

PAGE 1 OF 12 0922 IH-1679-MNBRD
1-800-295-5510
uline.com
MAINBOARD FOR
PALLET TRUCK SCALES
H-1679-MNBRD
INSTRUCTIONS
MAINBOARD REMOVAL
IMPORTANT! Set all screws, nuts, caps and
magnets aside after removal as they will be
used for installation.
1. Remove four screws connecting indicator
faceplate to housing using a Phillips screwdriver.
(See Figures 1-2)
2. Turn faceplate over. Remove six nuts from
mainboard using wrench with 7 mm socket.
(See Figure 3)
Figure 3
3. Lift mainboard to remove from faceplate.
4. Remove red caps from front of mainboard.
5. Disconnect white four-pin connector. Depress tab
with flathead screwdriver to remove. (See Figures 4-5)
6. Remove screws on side of indicator housing (one on
each side) with Phillips screwdriver to release front
panel. (See Figure 6)
TOOLS NEEDED
Phillips ScrewdriverSocket Wrench7 mm SocketFlathead Screwdriver
3 mm Flathead Screwdriver
Figure 1Figure 2
Figure 6
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
Figure 4Figure 5
Tab
