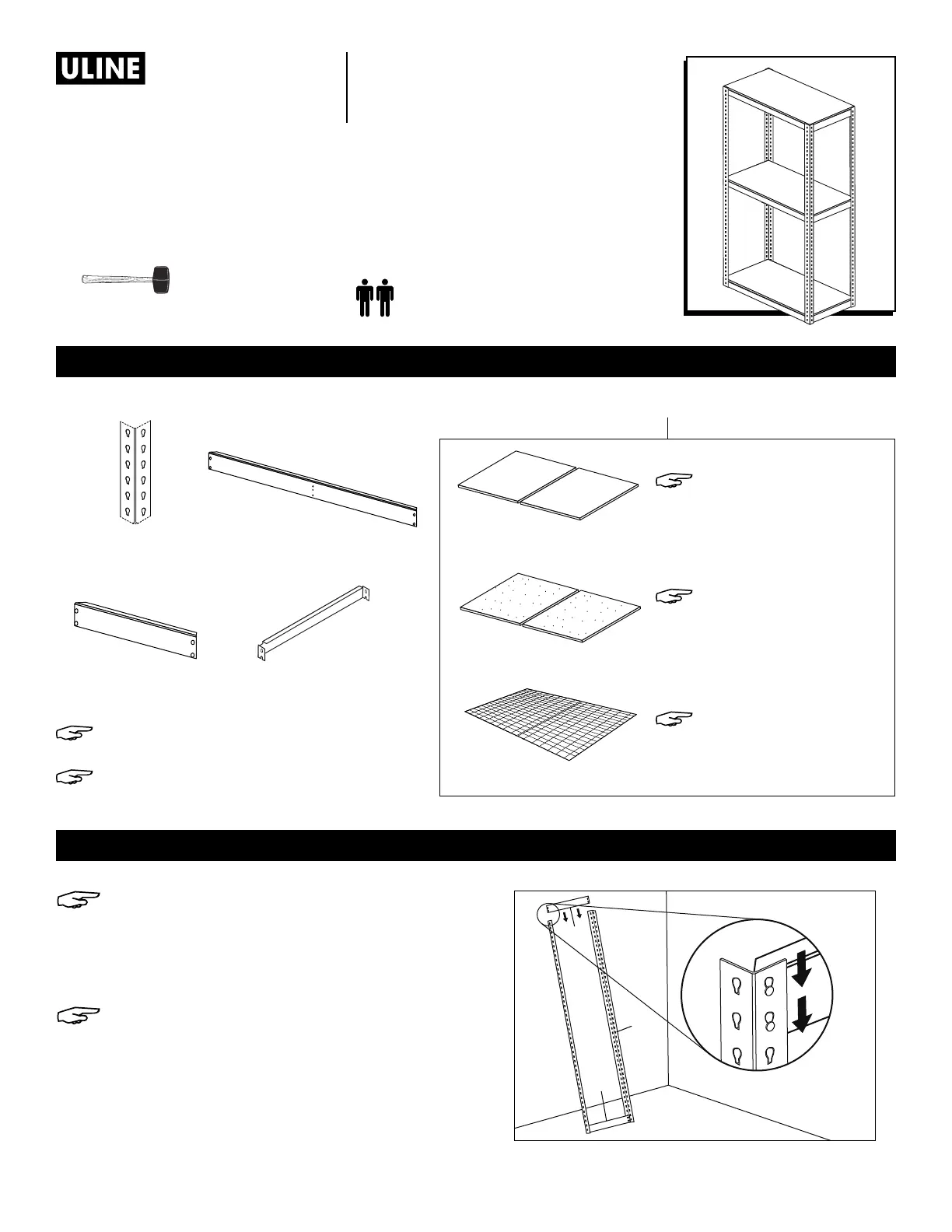

PAGE 1 OF 6 0325 IH-1060

WIDE SPAN/LAMINATE

STORAGE RACKS

1-800-295-5510

uline.com

Para Español, vea páginas 3-4.

Pour le français, consulter les pages 5-6.

PARTS

ASSEMBLY

NOTE: Lean posts against a wall or assemble

with another person.

1. Connect two upright posts (A) by inserting a side

support piece (B) at the bottom and top of the posts.

(See Figure 1)

NOTE: Side supports should be positioned with

ledge on top.

2. Repeat step one for the other two upright posts (A).

Upright Post x 4 (A)

Shelf Support x 3 (D)Side Support x 6 (B)

Front/Back Support x 6 (C)

NOTE: 72" wide racks utilize two shelf supports per level

(total of six per shelving unit).

NOTE: 96" wide racks utilize three shelf supports per

level (total of nine per shelving unit).

Figure 1

B

A

B

NOTE: 96 x 36" and 96 x 48"

(W x D) shelves utilize two

laminate boards per level

(total of six per shelving unit).

NOTE: 96 x 36" and 96 x 48"

(W x D) shelves utilize two

particle boards per level

(total of six per shelving unit).

NOTE: 96" wide shelves utilize

two wire decks per level (total

of six per shelving unit).

Shelving Material Options

Laminate Board x 3 (E)

Particle Board x 3 (E)

Wire Decking x 3 (E)

Rubber Mallet

TOOL NEEDED

Two Person Assembly

Recommended
